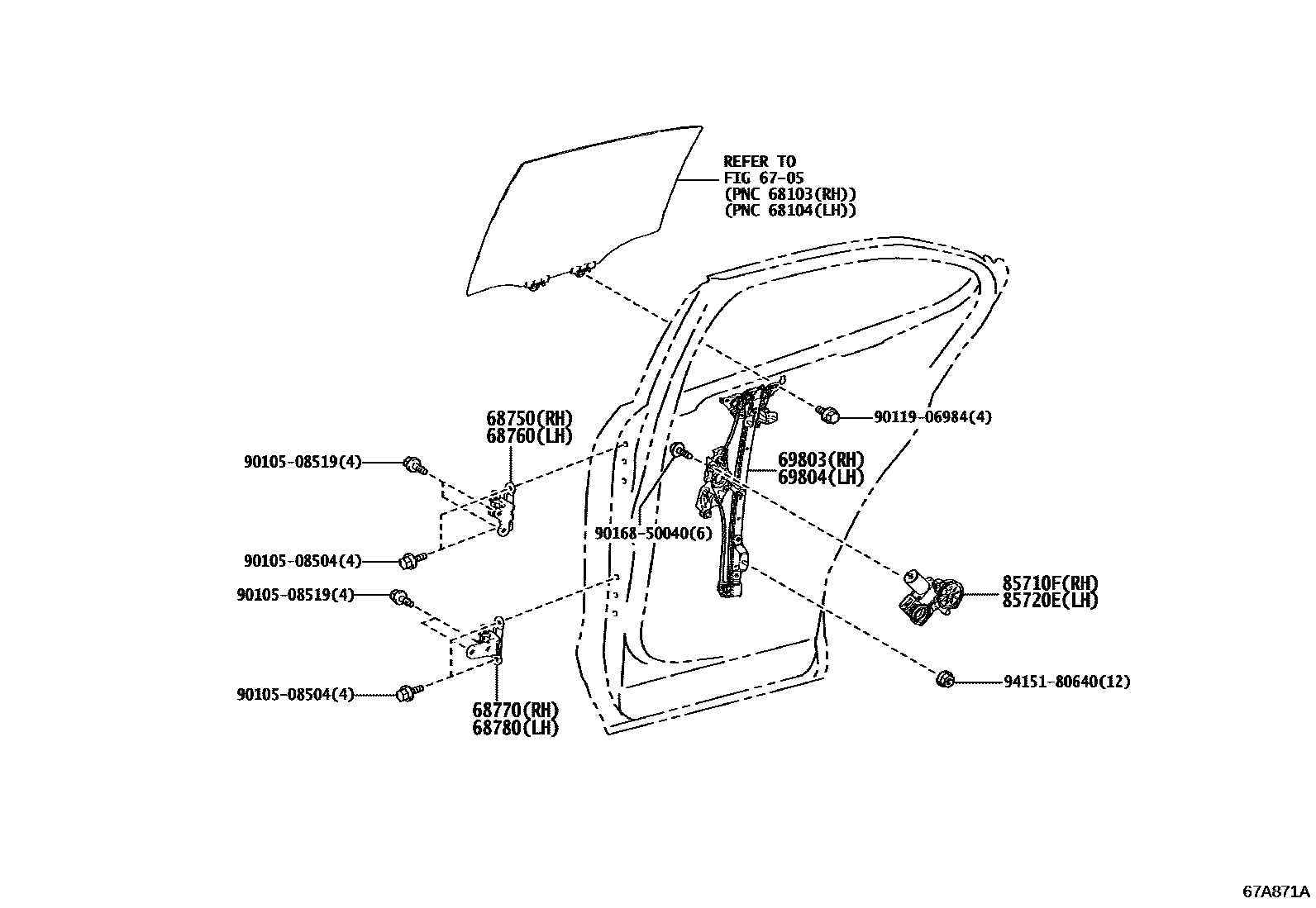

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-76020iKMA10202004

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-76020iKMA10202004

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-76020iKMA10202004

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-76020iKMA10202004

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-76010iKMA10202004-202104

main69803-76011iKMA10202105

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-76010iKMA10202004-202104

main69804-76011iKMA10202105

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-76030iKMA10202004

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-76030iKMA10202004

9010508504

main90105-08504

9010508519

main90105-08519

9011906984

main90119-06984

9016850040

main90168-50040

9415180640

main94151-80640

14 parts on this diagram · 1 diagram in section
