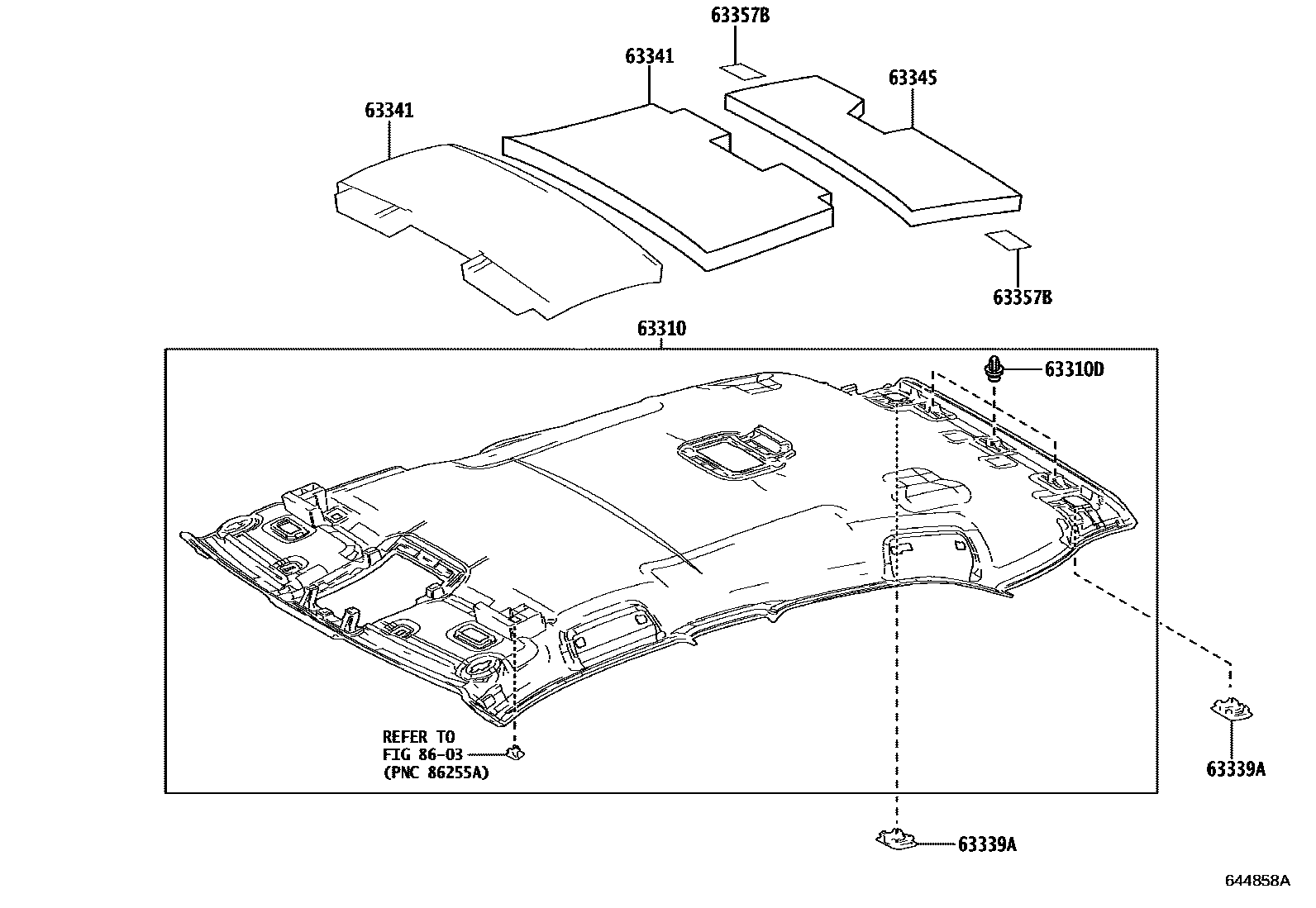

ROOF HEADLINING & SILENCER PAD

0001 1NORMAL ROOF 0002 1MOON ROOF

63310HEADLINING ASSY, ROOF

main63310-76090-A2supersedes 63310-76070-A2iKMA10..LHD202004

MOON ROOF-WITH,LWHITE,TRIM0#,11,4#,8#

main63310-76090-C2supersedes 63310-76070-C2iKMA10..LHD202004

MOON ROOF-WITH,BLACK,TRIM10,2#

main63310-76100-A2supersedes 63310-76080-A2iKMA10..ARL202108

MOON ROOF-WITH,LWHITE,TRIM0#,4#,8#

main63310-76100-C2supersedes 63310-76080-C2iKMA10..ARL202108

MOON ROOF-WITH,BLACK,TRIM1#,2#

63310DCLIP, ROOF HEADLINING

main90467-09240×3iKMA10202004

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-76010-A0×2iKMA10..ARL202108

WHITE,TRIM0#,4#,8#

main63339-76010-C0×2iKMA10..CHI,EUR,GEN202004

BLACK,TRIM10,2#

63341PAD, ROOF SILENCER, NO.1

main63341-76030×2iKMA10202004

63345PAD, ROOF SILENCER, NO.5

main63345-76030iKMA10202004

63357BSILENCER, ROOF

main63357-48020×2iKMA10202004-202101

MOON ROOF-WITH

main63357-78020×2iKMA10202102-202212

MOON ROOF-WITH

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

7 parts on this diagram · 2 diagrams in section
