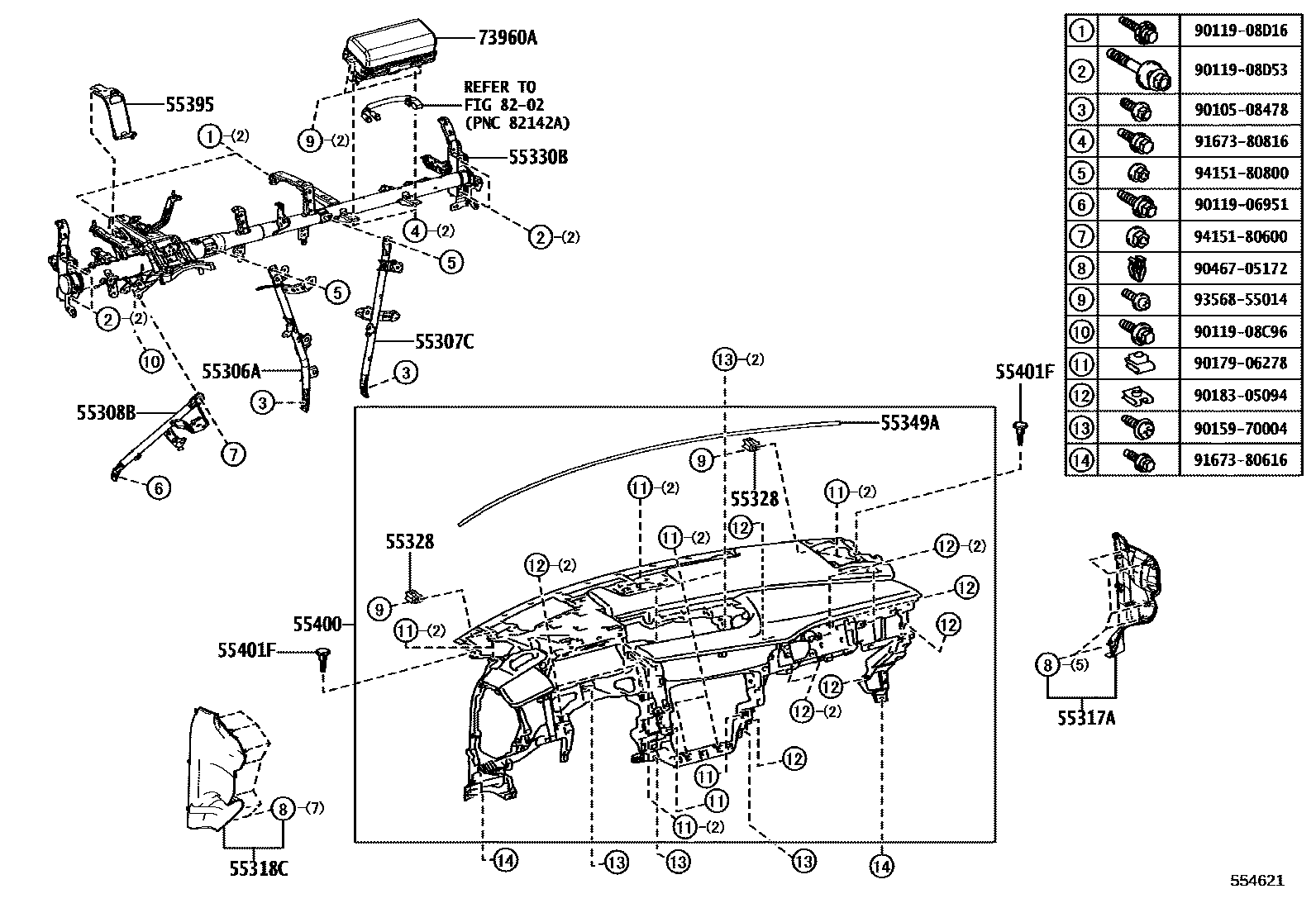

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-76040iKMA10..LHD202004

main55306-76050iKMA10..RHD202011

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-76030iKMA10..LHD202004

main55307-76040iKMA10..RHD202011

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-76010iKMA10..LHD202004

main55308-76020iKMA10..RHD202011

55317APANEL, INSTRUMENT SIDE, RH

main55317-76080-C0iKMA10..RHD202011

BLACK,TRIM0#,1#,2#,4#,8#

main55318-76070-C0iKMA10..LHD..(CHI,GEN)202004

BLACK,TRIM0#,1#,2#,4#,8#

main55318-76080-C0iKMA10..LHD..EUR202008

BLACK,TRIM0#,1#,2#,4#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-76070-C0iKMA10..LHD202004

BLACK,TRIM0#,1#,2#,4#,8#

main55318-76090-C0iKMA10..RHD..(ARL,GEN)202011

BLACK,TRIM0#,1#,2#,4#,8#

main55318-76100-C0iKMA10..RHD..EUR202011

BLACK,TRIM0#,1#,2#,4#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-76090iKMA10202004

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-76040iKMA10..LHD202004

main55330-76080iKMA10..RHD202011

55349ACUSHION, INSTRUMENT PANEL

main55349-76030iKMA10202004

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12020iKMA10..LHD202004

main55395-12040iKMA10..RHD202011

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-76030-40iKMA10..LHD202004

BLACK/BLACK/LT.GRAY,TRIM10,2#

main55400-76030-41iKMA10..LHD202004

BLACK/BLACK/ROYAL BROWN,TRIM4#

main55400-76030-E0iKMA10..LHD202004

NOBLEBROWN/BLACK/ME.WHITE,TRIM0#,11

main55400-76030-J1iKMA10..LHD202004

BLUE/BLACK/LT.GRAY,TRIM8#

main55400-76040-28iKMA10..RHD..(EUR,GEN)202011

BLACK/BLACK/LT.GRAY,TRIM10,2#

main55400-76040-28iKMA10..ARL202108

BLACK/BLACK/LT.GRAY,TRIM1#,2#

main55400-76040-29iKMA10..RHD202011

BLACK/BLACK/ROYAL BROWN,TRIM4#

main55400-76040-E0iKMA10..ARL202108

NOBLEBROWN/BLACK/ME.WHITE,TRIM0#

main55400-76040-E0iKMA10..RHD..(EUR,GEN)202011

NOBLEBROWN/BLACK/ME.WHITE,TRIM0#,11

main55400-76040-J1iKMA10..RHD202011

BLUE/BLACK/LT.GRAY,TRIM8#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iKMA10202004

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-76030iKMA10202004

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9011908D53

main90119-08D53

9015970004

main90159-70004

9017906278

main90179-06278

9018305094

main90183-05094

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

27 parts on this diagram · 8 diagrams in section
