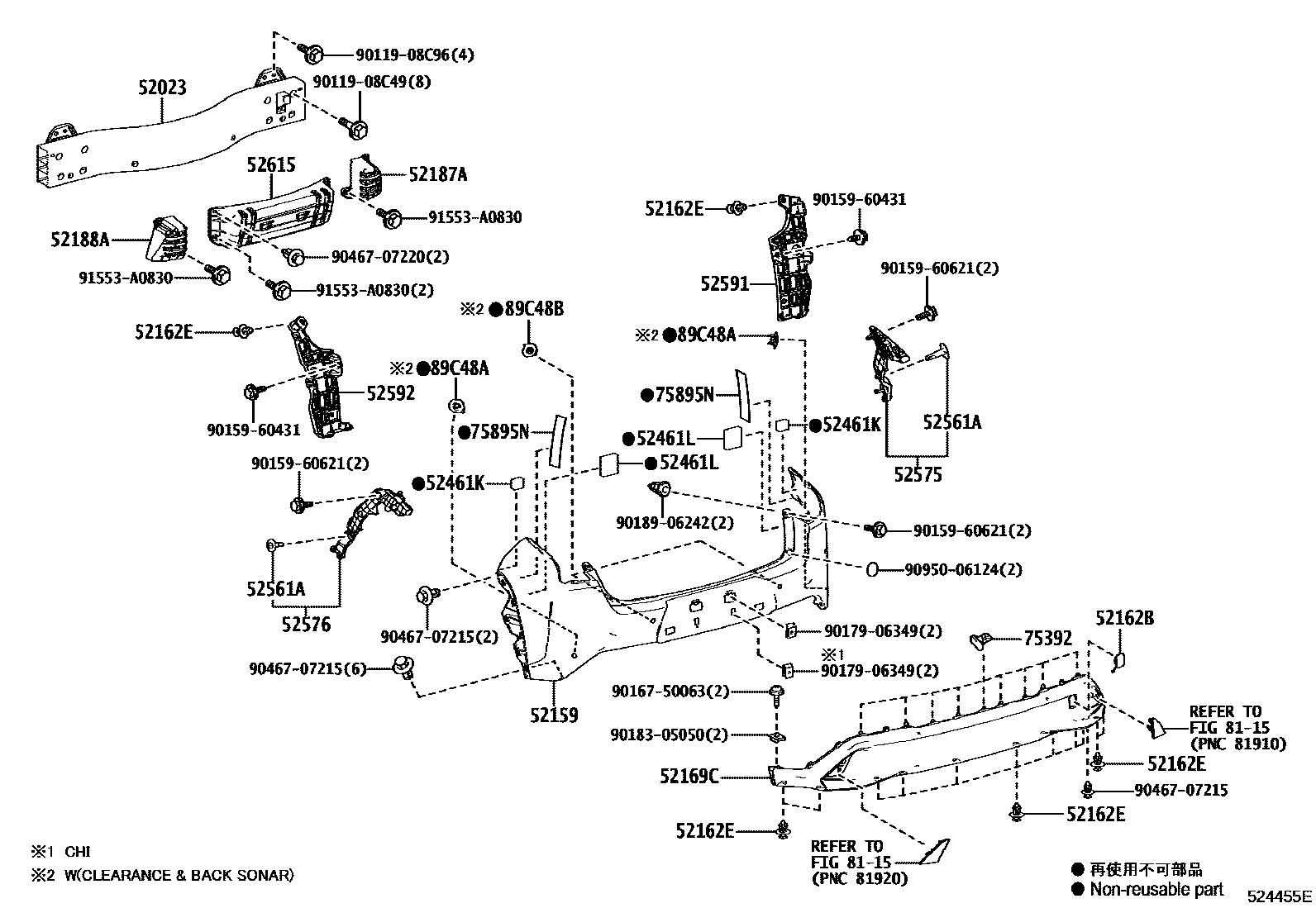

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-76020i202004

52159COVER, REAR BUMPER

main52159-76920supersedes 52159-76919i202008

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)

main52159-76926supersedes 52159-76925i202004

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)

52162BPLATE, REAR BUMPER, NO.1

main52162-76040i202004-202103

main52162-76041i202103

52162EPIECE, REAR BUMPER

main52161-16010×13i202004

sub52161-0K040

52169CCOVER, REAR BUMPER, LOWER

main52169-76080i202004-202102

NO PAINT REQ.

main52169-76081i202103

NO PAINT REQ.

52187AREINFORCEMENT, REAR BUMPER ARM, RH

main52187-76020i202004

52188AREINFORCEMENT, REAR BUMPER ARM, LH

main52188-76020i202004

52461KPAD, REAR BUMPER, NO.1

main52461-76010×2i202004

52461LPAD, REAR BUMPER, NO.2

main52461-76020×2i202004

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-09237×2i202004

52575RETAINER, REAR BUMPER SIDE, RH

main52575-76020i202004

52576RETAINER, REAR BUMPER SIDE, LH

main52576-76020i202004

52591SEAL, REAR BUMPER SIDE, RH

main52591-76020i202004

52592SEAL, REAR BUMPER SIDE, LH

main52592-76020i202004

52615ABSORBER, REAR BUMPER ENERGY

main52615-76010i202004

75392RETAINER, OUTSIDE MOULDING

main75392-35220×9i202004

75895NTAPE, MOULDING, NO.1

main75895-53010×2i202004

8115

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-12070-A3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085,RH

main89348-12070-B3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH

main89348-12070-B4i202004-202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM SILVER ME.,1J4,RH

main89348-12070-B5i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7,RH

main89348-12070-C1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212,RH

main89348-12070-C2i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,RH

main89348-12070-D1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,RH

main89348-12070-E1i202004-202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,RH

main89348-12070-E2i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLAZING CARNELIAN CONTRAS,4Y1,RH

main89348-12070-G1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKI M.M.,6X4,RH

main89348-12070-J3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6,RH

main89348-12070-P1i202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,RH

main89348-12140-A3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085,LH

main89348-12140-B3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MERCURY GRAY MC.,1H9,LH

main89348-12140-B4i202004-202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH

main89348-12140-B5i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7,LH

main89348-12140-C1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212,LH

main89348-12140-C2i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,LH

main89348-12140-D1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH

main89348-12140-E1i202004-202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,LH

main89348-12140-E2i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH

main89348-12140-G1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH

main89348-12140-J3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,LH

main89348-12140-P1i202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-12070-A3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085,RH

main89348-12070-B3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MERCURY GRAY MC.,1H9,RH

main89348-12070-B4i202004-202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),PLATINUM SILVER ME.,1J4,RH

main89348-12070-B5i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7,RH

main89348-12070-C1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212,RH

main89348-12070-C2i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,RH

main89348-12070-D1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2,RH

main89348-12070-E1i202004-202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,RH

main89348-12070-E2i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLAZING CARNELIAN CONTRAS,4Y1,RH

main89348-12070-G1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKI M.M.,6X4,RH

main89348-12070-J3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6,RH

main89348-12070-P1i202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,RH

main89348-12140-A3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC QUARTZ,085,LH

main89348-12140-B3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MERCURY GRAY MC.,1H9,LH

main89348-12140-B4i202004-202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM SILVER ME.,1J4,LH

main89348-12140-B5i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7,LH

main89348-12140-C1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212,LH

main89348-12140-C2i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE BLACK GF.,223,LH

main89348-12140-D1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,LH

main89348-12140-E1i202004-202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),AMBER CS.,4X2,LH

main89348-12140-E2i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,LH

main89348-12140-G1i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANE KHAKI M.M.,6X4,LH

main89348-12140-J3i202004

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),CELESTIAL BLUE GF.,8Y6,LH

main89348-12140-P1i202108

CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,LH

9011908C49

main90119-08C49

9011908C96

main90119-08C96

9015960431

main90159-60431

9015960621

main90159-60621

9016750063

main90167-50063

9017906349

main90179-06349

9018305050

main90183-05050

9018906242

main90189-06242

9046707215

main90467-07215

9046707220

main90467-07220

9095006124

main90950-06124

91553A0830

main91553-A0830

32 parts on this diagram · 1 diagram in section
