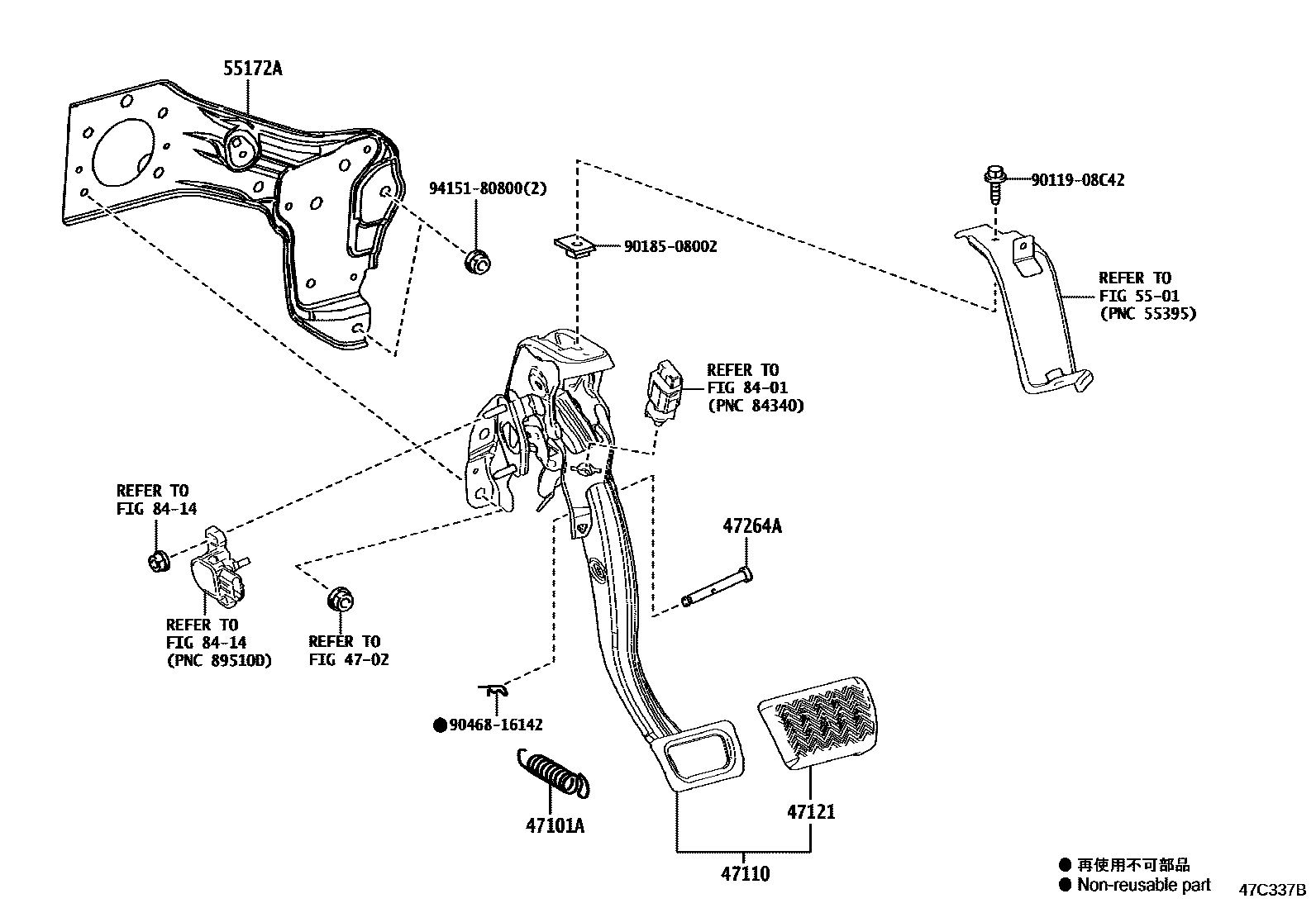

BRAKE PEDAL & BRACKET

0001 1 0002 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15013iKMA10202004

47110SUPPORT ASSY, BRAKE PEDAL

main47110-47060iKMA10..LHD202004-202206

main47110-47070iKMA10..RHD202011-202206

main47110-76090iKMA10..RHD202207

main47110-76170iKMA10..LHD202207

47121PAD, BRAKE PEDAL

main47121-16020iKMA10202207

main47121-47010iKMA10202004-202207

47264APIN(FOR PUSH ROD)

main90249-08309iKMA10202004

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-12160iKMA10..LHD202004

main55172-12170iKMA10..RHD202011

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C42

main90119-08C42

9018508002

main90185-08002

9046816142

main90468-16142

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
