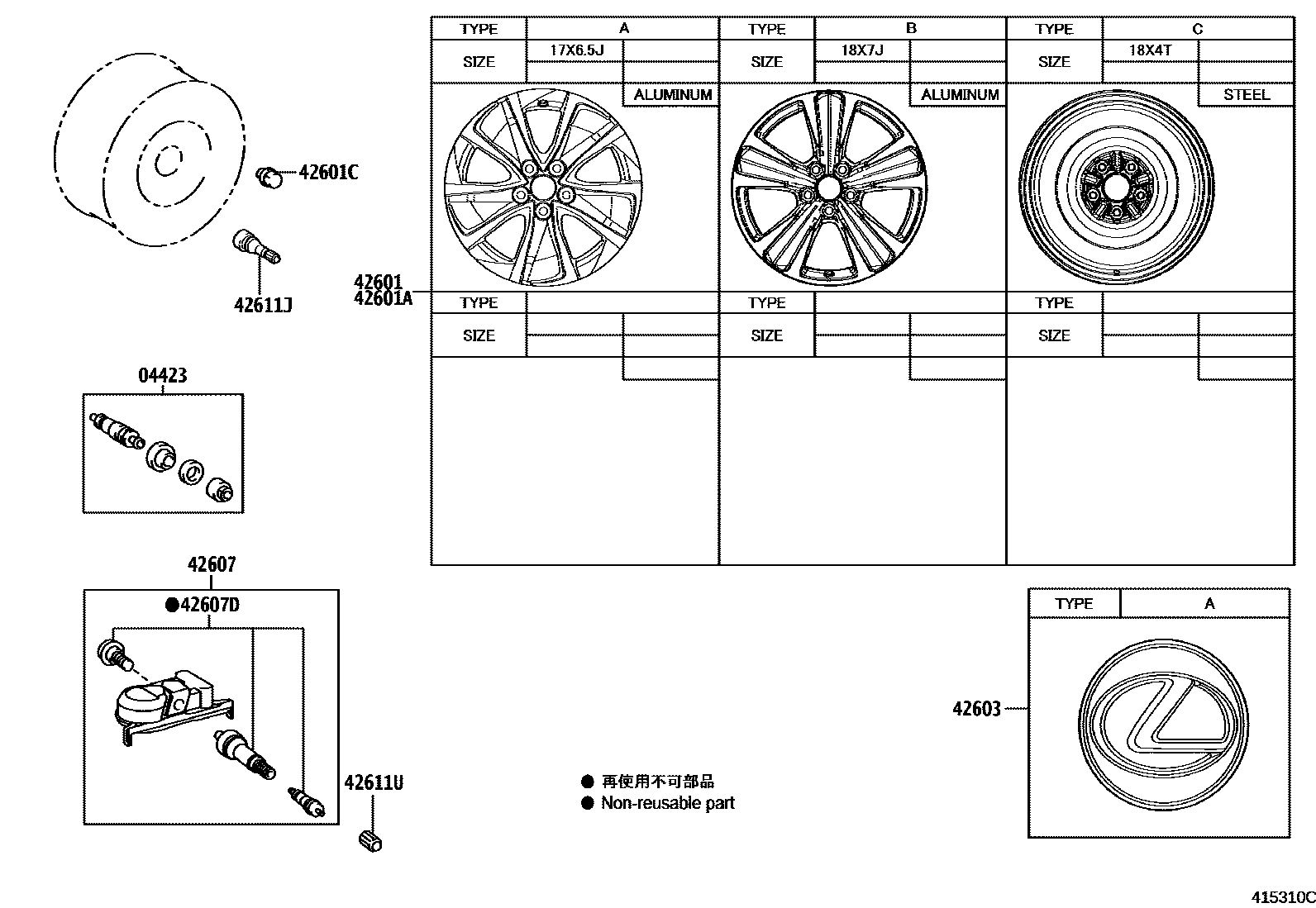

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4i202004

42601WHEEL, DISC

main42611-76330×4i202004

17X6.5J,TYPE A:REFER ILLUST.

main42611-76340×4i202011

18X7J,THAILAND SPEC&TIRE & DISC WHEEL-225/50R18, SUMMER TIRE,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

18X4T,TYPE C:REFER ILLUST.

18X4T,INDONESIA SPEC,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i202004

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50381×4i202004

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-53020×4i202108

main42607-53040×4i202004

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044×4i202004

42611JVALVE (FOR TUBELESS TIRE SPARE)

42611UCAP, TIRE VALVE

main90942-05042×4i202004

9 parts on this diagram · 2 diagrams in section
