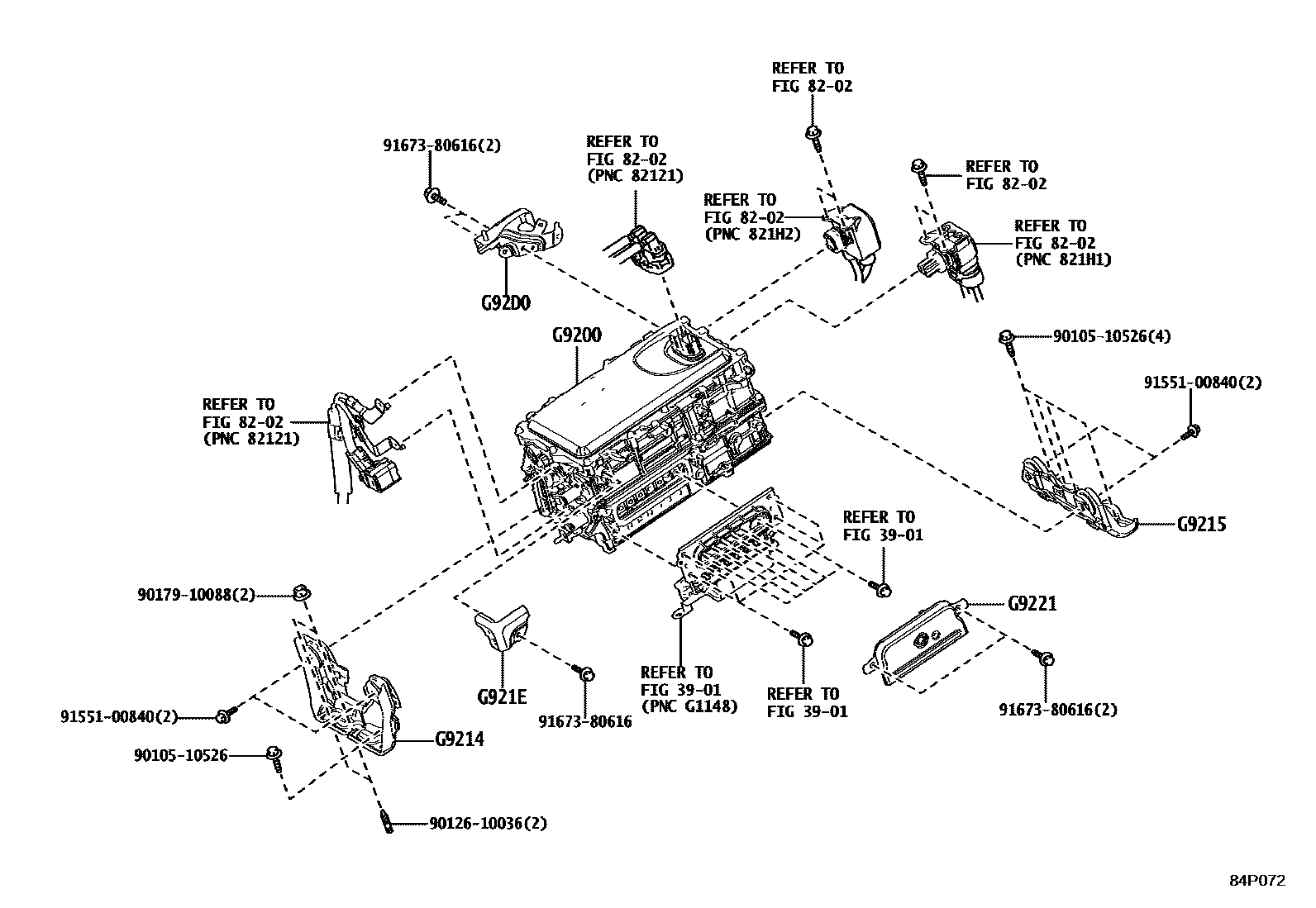

HEV INVERTER

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG920079046iMZAH10202207

mainG920079056iMZAH15202207

G9214BRACKET, INVERTER, NO.1

mainG921433040iMZAH10,15202207

mainG921463010iMZAH11..CHI202401-202501

G9215BRACKET, INVERTER, NO.2

mainG921533040iMZAH10,15202207

mainG921547060iMZAH16202401

mainG921563010iMZAH11..CHI202401-202501

G921EPROTECTOR, INVERTER

mainG921E47010iMZAH10,15202207

G9221COVER, INVERTER

mainG902228030iMZAH11..CHI202401-202501

mainG902247050iMZAH10,15202207

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D076010iMZAH10,15202207

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

13 parts on this diagram · 4 diagrams in section
