ECO-RUN SYSTEM

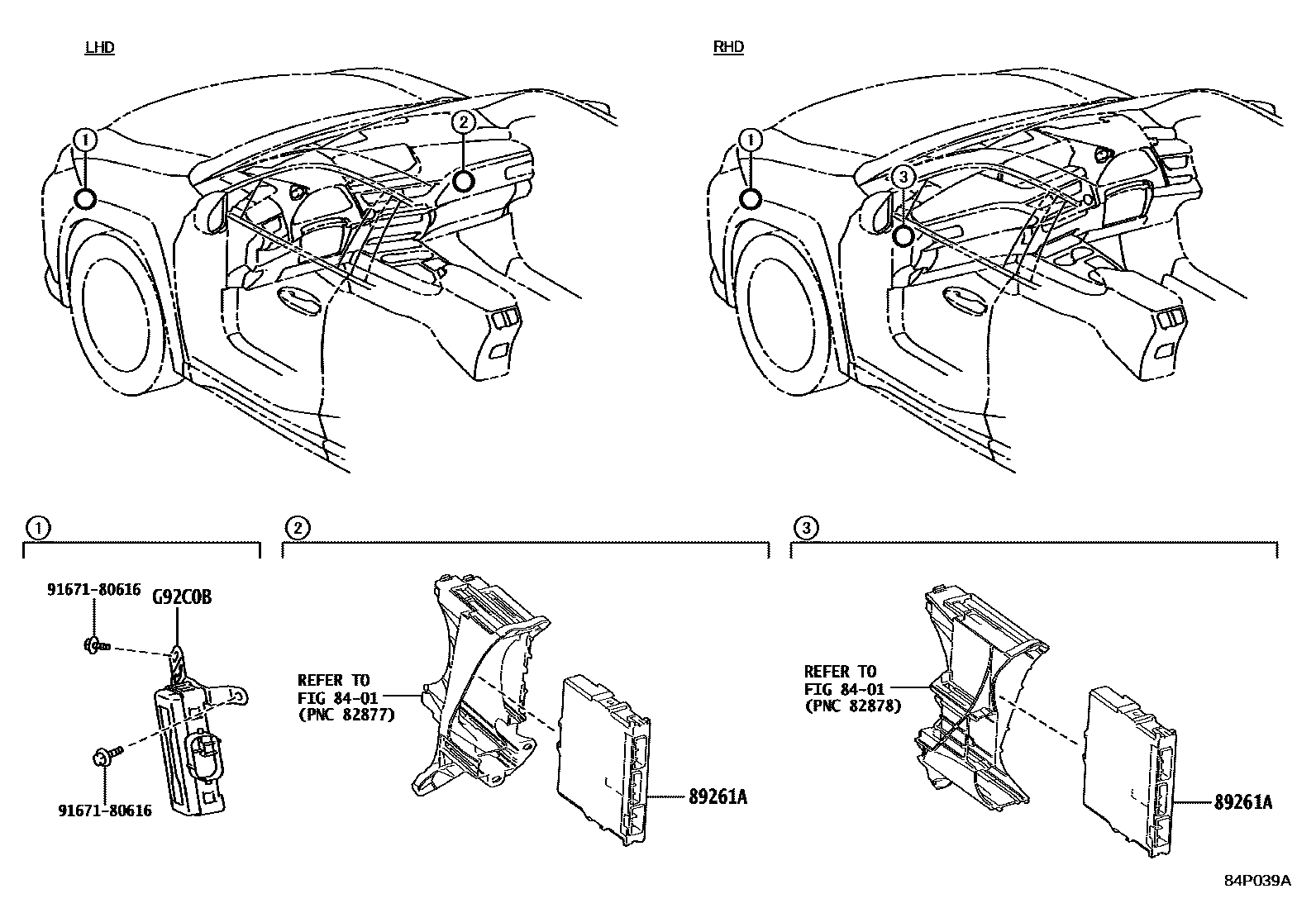

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89261ACOMPUTER, ENGINE STOP AND START

main89260-76011i202207

G92C0BCONVERTER ASSY, ECO RUN VEHICLE

mainG92C076010i202207

AUDIO-*DA & 13SPEAKER; AUDIO-EMV & 10SPEAKER; AUDIO-EMV & 13SPEAKER

9167180616

main91671-80616

4 parts on this diagram · 1 diagram in section
