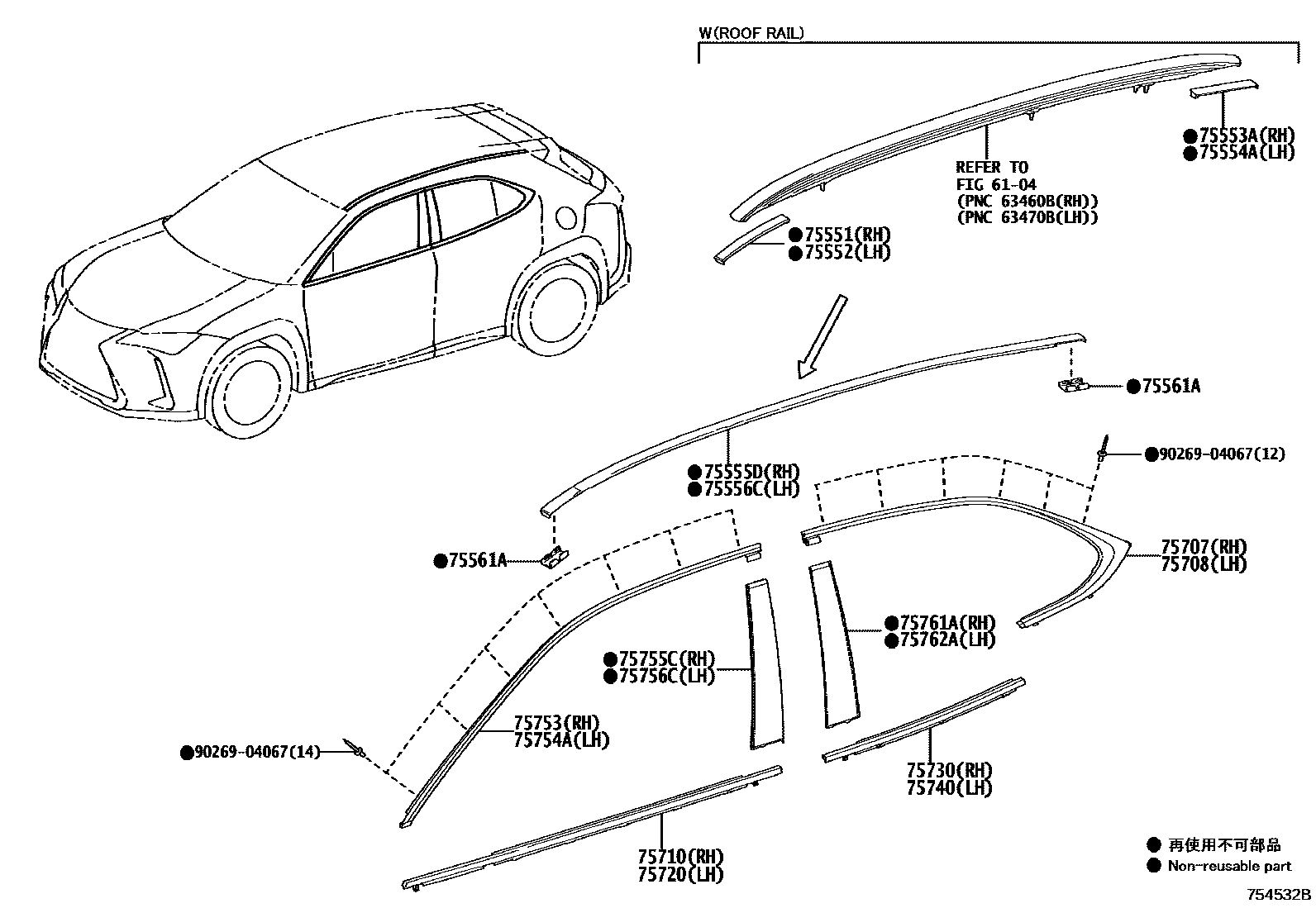

SIDE MOULDING

0001 1DOOR & ROOF MOULDING 0002 1WHEEL ARCH & ROCKER MOULDING

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-76010-A0202207

main75551-76010-A1202207-202512

main75551-76010-B2202207

main75551-76010-B3202207

main75551-76010-B4202207

main75551-76010-C0202207

main75551-76010-C1202207

main75551-76010-D0202207-202512

main75551-76010-E1202207

main75551-76010-E2202401

main75551-76010-G0202207

main75551-76010-J0202207

main75551-76010-J1202207-202512

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-76010-A0202207

main75552-76010-A1202207-202512

main75552-76010-B2202207

main75552-76010-B3202207

main75552-76010-B4202207

main75552-76010-C0202207

main75552-76010-C1202207

main75552-76010-D0202207-202512

main75552-76010-E1202207

main75552-76010-E2202401

main75552-76010-G0202207

main75552-76010-J0202207

main75552-76010-J1202207-202512

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-76010-A0202207

main75553-76010-A1202207-202512

main75553-76010-B2202207

main75553-76010-B3202207

main75553-76010-B4202207

main75553-76010-C0202207

main75553-76010-C1202207

main75553-76010-D0202207-202512

main75553-76010-E1202207

main75553-76010-E2202401

main75553-76010-G0202207

main75553-76010-J0202207

main75553-76010-J1202207-202512

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-76010-A0202207

main75554-76010-A1202207-202512

main75554-76010-B2202207

main75554-76010-B3202207

main75554-76010-B4202207

main75554-76010-C0202207

main75554-76010-C1202207

main75554-76010-D0202207-202512

main75554-76010-E1202207

main75554-76010-E2202401

main75554-76010-G0202207

main75554-76010-J0202207

main75554-76010-J1202207-202512

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-76030202207-202512

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-76030202207-202512

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-52020202207-202512

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-76020202207-202512

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-76020202207-202512

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-76040202207-202512

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-76030202207-202512

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-76020202207-202501

main75730-76040202303-202512

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-76020202207-202501

main75740-76040202303-202512

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-76020202207-202512

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-76020202207-202512

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-76020202207-202512

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-76020202207-202512

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-76020202207-202512

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-76020202207-202512

9026904067

main90269-04067

21 parts on this diagram · 2 diagrams in section
