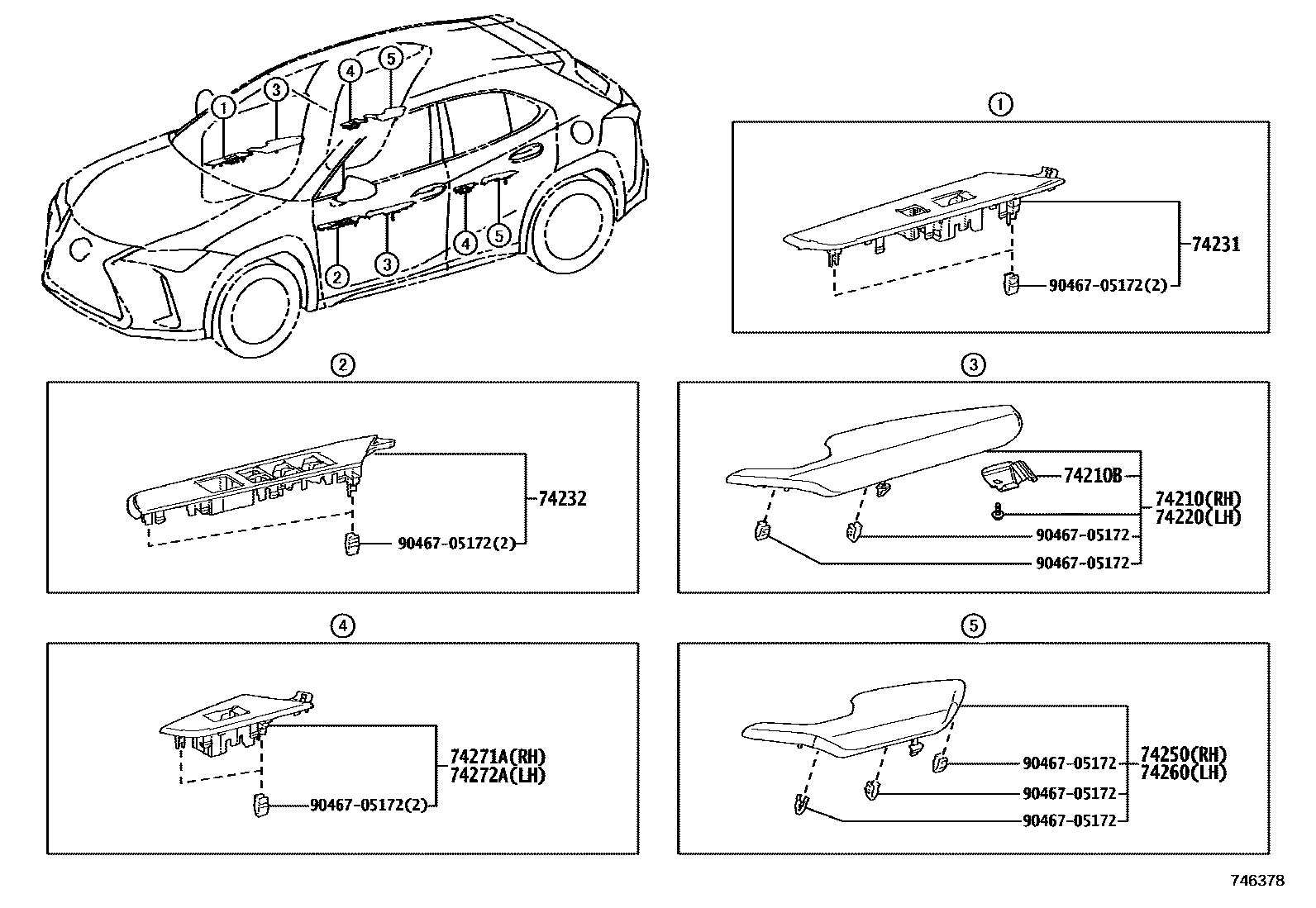

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-76020-A0iMZAA10,MZAH10,15202207

RICH CREAM,TRIM00

main74210-76020-A0iKMA10202303-202401

RICH CREAM,TRIM0#

main74210-76020-A3iMZAH11..CHI202401-202501

WHITE,TRIM0#

main74210-76020-A3iMZAA10,MZAH10,15202207

WHITE,TRIM01

main74210-76020-A5iKMA10202401-202512

FROMAGE,TRIM0#

main74210-76020-A5iMZAH11,16..ARL,EUR,GCC,GEN202401

FROMAGE,TRIM02

main74210-76020-B0iMZAH11,16..ARL,GCC,GEN202303-202512

WHITE ASH,TRIM1#

main74210-76020-B0iMZAH11,16..EUR202207-202501

WHITE ASH,TRIM1#,8#

main74210-76020-C0iMZAA10..GCC;MZAH15..ARL202207

BLACK,TRIM20,21,22

main74210-76020-C0iMZAH10;MZAH15..EUR,GEN;MZAA10..ARL,EUR,GEN202207-202512

BLACK,TRIM2#

main74210-76020-D1iMZAA10..GCC;MZAH15..ARL202207

RED,TRIM22,3#

main74210-76020-D1iMZAA10..GCC;MZAH15..ARL202207-202501

RED,TRIM3#

main74210-76020-E2iMZAH10,15;MZAA10..ARL,EUR;MZAA10..LHD..GEN202207-202401

HAZEL,TRIM42

main74210-76020-E2iMZAH10,15;MZAA10..ARL,EUR;MZAA10..LHD..GEN202207-202512

HAZEL,TRIM4#

main74210-76020-E3iMZAA10..GCC;MZAA10..RHD..GEN202207-202401

MAUVE,TRIM43

74210BBRACKET, ARMREST SET

main67645-76010iMZAH11..CHI202207-202512

RH

main67646-76010iKMA10202207-202512

LH

74220ARMREST ASSY, FRONT, LH

main74220-76020-A0iKMA10202303-202401

RICH CREAM,TRIM0#

main74220-76020-A0iMZAA10,MZAH10,15202207

RICH CREAM,TRIM00

main74220-76020-A3iMZAA10,MZAH10,15202207

WHITE,TRIM01

main74220-76020-A3iMZAH11..CHI202401-202501

WHITE,TRIM0#

main74220-76020-A5iMZAH11,16..ARL,EUR,GCC,GEN202401

FROMAGE,TRIM02

main74220-76020-A5iKMA10202401-202512

FROMAGE,TRIM0#

main74220-76020-B0iMZAH11,16..ARL,GCC,GEN202303-202512

WHITE ASH,TRIM1#

main74220-76020-B0iMZAH11..CHI202207-202501

WHITE ASH,TRIM1#,8#

main74220-76020-C0iMZAH10;MZAH15..EUR,GEN;MZAA10..ARL,EUR,GEN202207-202512

BLACK,TRIM2#

main74220-76020-C0iMZAH10;MZAH15..EUR,GEN;MZAA10..ARL,EUR,GEN202207

BLACK,TRIM20,21,22

main74220-76020-D1iMZAA10..GCC;MZAH15..ARL202207-202501

RED,TRIM3#

main74220-76020-D1iMZAH10;MZAH15..EUR,GEN;MZAA10..ARL,EUR,GEN202207

RED,TRIM22,3#

main74220-76020-E2iMZAH10,15;MZAA10..ARL,EUR;MZAA10..LHD..GEN202207-202512

HAZEL,TRIM4#

main74220-76020-E2iMZAH10,15;MZAA10..ARL,EUR;MZAA10..LHD..GEN202207-202401

HAZEL,TRIM42

main74220-76020-E3iMZAA10..GCC;MZAA10..RHD..GEN202207-202401

MAUVE,TRIM43

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-76030iMZAA10,MZAH10,15..LHD202207-202401

main74231-76040iMZAA10,MZAH10,15..RHD202207-202401

main74231-76070iMZAH11..CHI202401-202512

main74231-76080iMZAH11,16..RHD202401-202512

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-76030iMZAA10,MZAH10,15..LHD202207-202401

main74232-76040iKMA10..RHD202207-202401

main74232-76070iMZAH11,16..LHD..(EUR,GCC,GEN)202401-202512

main74232-76080iKMA10..RHD202401-202512

74250ARMREST ASSY, REAR RH

main74250-76010-A0iMZAA10,MZAH10,15202207

RICH CREAM,TRIM00

main74250-76010-A0iKMA10202303-202401

RICH CREAM,TRIM0#

main74250-76010-A3iMZAH11..CHI202401-202501

WHITE,TRIM0#

main74250-76010-A3iMZAA10,MZAH10,15202207

WHITE,TRIM01

main74250-76010-A5iKMA10202401-202512

FROMAGE,TRIM0#

main74250-76010-A5iMZAH11,16..ARL,EUR,GCC,GEN202401

FROMAGE,TRIM02

main74250-76010-B0iMZAH11,16..EUR202207-202501

WHITE ASH,TRIM1#,8#

main74250-76010-B0iKMA10202303-202512

WHITE ASH,TRIM1#

main74250-76010-C0iMZAH10;MZAH15..EUR,GEN;MZAA10..ARL,EUR,GEN202207-202512

BLACK,TRIM2#

main74250-76010-C0iMZAH10;MZAH15..EUR,GEN;MZAA10..ARL,EUR,GEN202207

BLACK,TRIM20,21,22

main74250-76010-D1iMZAA10..GCC;MZAH15..ARL202207-202501

RED,TRIM3#

main74250-76010-D1iMZAH10;MZAH15..EUR,GEN;MZAA10..ARL,EUR,GEN202207

RED,TRIM22,3#

main74250-76010-E2iMZAH10,15;MZAA10..ARL,EUR;MZAA10..LHD..GEN202207-202512

HAZEL,TRIM4#

main74250-76010-E2iKMA10..EUR202207-202401

HAZEL,TRIM42

main74250-76010-E3iMZAA10..GCC;MZAA10..RHD..GEN202207-202401

MAUVE,TRIM43

74260ARMREST ASSY, REAR LH

main74260-76010-A0iKMA10202303-202401

RICH CREAM,TRIM0#

main74260-76010-A0iMZAA10,MZAH10,15202207

RICH CREAM,TRIM00

main74260-76010-A3iMZAH11..CHI202401-202501

WHITE,TRIM0#

main74260-76010-A3iMZAH11,16..ARL,EUR,GCC,GEN202207

WHITE,TRIM01

main74260-76010-A5iMZAH11,16..ARL,EUR,GCC,GEN202401

FROMAGE,TRIM02

main74260-76010-A5iKMA10202401-202512

FROMAGE,TRIM0#

main74260-76010-B0iKMA10202303-202512

WHITE ASH,TRIM1#

main74260-76010-B0iMZAA10,MZAH10,15202207-202501

WHITE ASH,TRIM1#,8#

main74260-76010-C0iMZAA10..GCC;MZAH15..ARL202207-202512

BLACK,TRIM2#

main74260-76010-C0iMZAH10;MZAH15..EUR,GEN;MZAA10..ARL,EUR,GEN202207

BLACK,TRIM20,21,22

main74260-76010-D1iMZAH11..CHI202207-202501

RED,TRIM3#

main74260-76010-D1iMZAA10..GCC;MZAH15..ARL202207

RED,TRIM22,3#

main74260-76010-E2iKMA10..ARL,GEN202207-202512

HAZEL,TRIM4#

main74260-76010-E2iMZAA10..GCC;MZAA10..RHD..GEN202207-202401

HAZEL,TRIM42

main74260-76010-E3iMZAA10..GCC;MZAA10..RHD..GEN202207-202401

MAUVE,TRIM43

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-76020iKMA10202207-202401

main74271-76040iMZAH11..CHI202401-202512

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-76020iKMA10202207-202401

main74272-76040iMZAH11..CHI202401-202512

9046705172

main90467-05172

10 parts on this diagram · 3 diagrams in section
