FRONT SEAT & SEAT TRACK

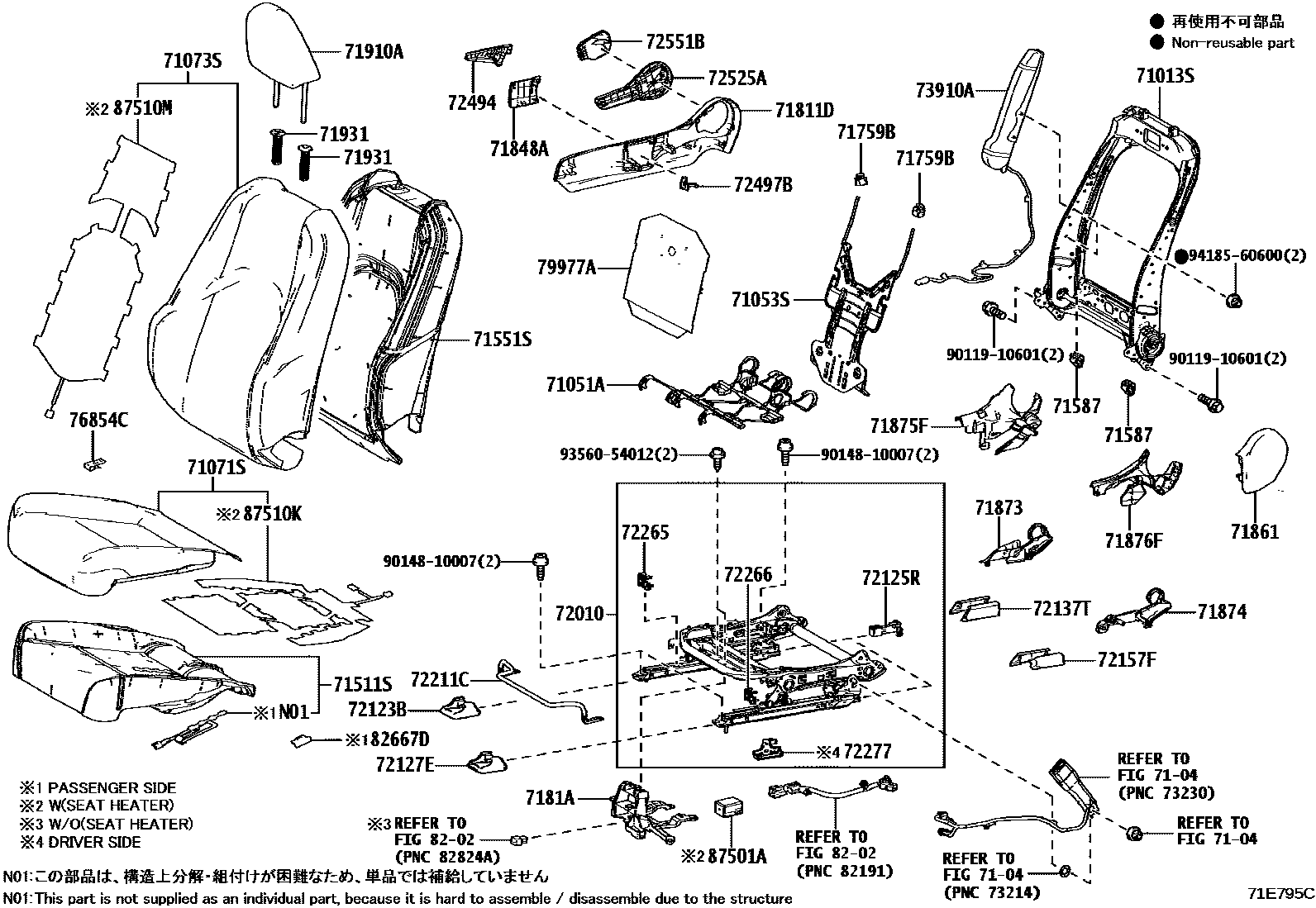

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-33381i202401-202512
F SPORT&SEAT COVER MATERIAL-F SPORT(FABRIC & L TEX)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER)
main71013-33531supersedes 71013-76120i202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71013-76120supersedes 71013-33381i202401
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
main71013-76101i202207
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC&F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMOR
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-47090i202401
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
main71053-47050i202207-202401
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-76861-C2i202401
BLACK,TRIM2#
main71071-76861-E5i202401
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL),HAZEL,TRIM4#
main71071-76C20-C0i202303-202401
BLACK,TRIM2#
main71071-76C20-E3i202401-202512
HAZEL,TRIM4#
main71071-76E20-B1i202207
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76E20-C1supersedes 71071-76861-C2i202207
BLACK,TRIM2#
main71071-76E20-E1supersedes 71071-76861-E5i202207
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),HAZEL,TRIM4#
main71071-76E10-B1i202401-202501
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#,8#
main71071-76E10-C1i202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71071-76E10-E1i202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),HAZEL,TRIM4#
main71071-76E30-E3i202207
PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,MAUVE,TRIM4#
main71071-76E40-A1i202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),RICH CREAM,TRIM0#
main71071-76E40-A3i202401
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#
main71071-76E40-B1i202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),WHITE ASH,TRIM1#
main71071-76E40-C1i202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71071-76E40-E0i202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),HAZEL,TRIM4#
main71071-76E50-A1i202207
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RICH CREAM,TRIM0#
main71071-76E50-A3i202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),FROMAGE,TRIM0#
main71071-76E50-B1i202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#
main71071-76E50-C1supersedes 71071-76F60-C0i202401
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER),BLACK,TRIM2#
main71071-76E50-E0i202207
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),HAZEL,TRIM4#
main71071-76E60-A1i202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71071-76E60-A3i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main71071-76E60-B1i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main71071-76E60-C1i202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71071-76E60-E0i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main71071-76E80-A1i202303-202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),RICH CREAM,TRIM0#
main71071-76E80-A3i202401-202512
LUXURY PACKAGE,FROMAGE,TRIM0#
main71071-76E80-B1supersedes 71071-76E70-B0i202303-202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH,TRIM1#
main71071-76E80-C1supersedes 71071-76E70-C0i202401-202512
PREMIUM PACKAGE&&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#
main71071-76E80-E0supersedes 71071-76E70-E0i202401-202512
LUXURY PACKAGE,HAZEL,TRIM4#
main71071-76E90-B1i202401
SEAT COVER MATERIAL-L TEX,WHITE ASH,TRIM1#
main71071-76E90-C1supersedes 71071-76F60-C0i202207
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71071-76E90-E1supersedes 71071-76F60-E0i202401
SEAT COVER MATERIAL-L TEX,HAZEL,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-76460-C6i202207
BLACK,TRIM2#
main71073-76460-L0i202401
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL),HAZEL,TRIM4#
main71073-76660-C4i202207
BLACK,TRIM2#
main71073-76660-E9i202207
HAZEL,TRIM4#
main71073-76840-C0i202303-202401
BLACK,TRIM2#
main71073-76840-E5i202401-202512
HAZEL,TRIM4#
main71073-76880-C0i202303-202401
BLACK,TRIM2#
main71073-76880-E4i202401-202512
HAZEL,TRIM4#
main71073-76A50-B2i202207
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76A70-B2i202207
SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76A70-B3i202207
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(FRONT SEAT),WHITE ASH,TRIM1#
main71073-76A70-C1i202207
BLACK,TRIM2#
main71073-76A70-E2i202207
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(FRONT SEAT),HAZEL,TRIM4#
main71073-76D60-B4i202401-202512
WHITE ASH/BLUE,TRIM8#
main71073-76D70-B4i202401-202512
WHITE ASH/BLUE,TRIM8#
main71073-76D70-B5i202401
WHITE ASH,TRIM1#
main71073-76D70-C2supersedes 71073-76670-C5i202401
BLACK,TRIM2#
main71073-76D70-E2supersedes 71073-76670-E8i202401
HAZEL,TRIM4#
main71073-76830-B2i202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76830-B3i202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#
main71073-76830-C1i202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71073-76830-E2i202207
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),HAZEL,TRIM4#
main71073-76870-B2i202401-202512
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71073-76870-C2i202401-202512
PREMIUM PACKAGE&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71073-76870-E2i202401-202512
PREMIUM PACKAGE&SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),HAZEL,TRIM4#
main71073-76A60-A1i202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RI
main71073-76A60-B1supersedes 71073-76A50-B3i202207
DEST.PACKAGE (EXC/ERP.)-CHILE SPEC& LUXURY PACKAGE&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#
main71073-76A60-C2supersedes 71073-76A50-C1i202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71073-76A60-E1supersedes 71073-76A50-E2i202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71073-76A80-A1i202207
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC& LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATI
main71073-76A80-B1i202207
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC& LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATI
main71073-76A80-C2i202207
SOUTH AFRICA SPEC& LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEATADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71073-76A80-E1i202207
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC& LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATI
main71073-76A90-E3i202207
DEST.PACKAGE (EXC/ERP.)-BAHRAIN, OMAN SPEC& PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)&SEAT VENTILATI
main71073-76B00-B1i202303-202401
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),WHITE ASH,TRIM1#
main71073-76B00-C1i202303-202401
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),BLACK,TRIM2#
main71073-76B00-E4i202303-202401
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION),HAZEL,TRIM4#
main71073-76B10-A1i202303-202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),RICH CREAM,TRIM0#
main71073-76B10-B1i202303-202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH,TRIM1#
main71073-76B10-C2i202303-202401
SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#
main71073-76B10-E1i202303-202401
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),HAZEL,TRIM4#
main71073-76B30-A1i202303-202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),RICH CREAM,TRIM0#
main71073-76B30-B1supersedes 71073-76D00-B2i202303-202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH,TRIM1#
main71073-76B30-C2i202303-202401
LUXURY PACKAGE,BLACK,TRIM2#
main71073-76B30-E1i202303-202401
LUXURY PACKAGE,HAZEL,TRIM4#
main71073-76C40-E0i202207
PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,MAUVE,TRIM4#
main71073-76D10-A1i202401-202512
SEAT COVER MATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#
main71073-76D10-B2i202401-202512
PREMIUM PACKAGE&&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH,TRIM1#
main71073-76D10-C2i202401-202512
SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2#
main71073-76D10-E2i202401-202512
PREMIUM PACKAGE&&SEAT COVER MATERIAL-LEATHER(SMOOTH),HAZEL,TRIM4#
main71073-76D20-A1i202401-202512
LUXURY PACKAGE&&SEAT COVER MATERIAL-LEATHER(SMOOTH),FROMAGE,TRIM0#
main71073-76D20-B2supersedes 71073-76D00-B2i202401-202512
LUXURY PACKAGE&&SEAT COVER MATERIAL-LEATHER(SMOOTH),WHITE ASH,TRIM1#
main71073-76D20-C2supersedes 71073-76D00-C2i202401-202512
LUXURY PACKAGE,BLACK,TRIM2#
main71073-76D20-E2supersedes 71073-76D00-E2i202401-202512
LUXURY PACKAGE,HAZEL,TRIM4#
main71073-76D30-A1i202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),FROMAGE,TRIM0#
main71073-76D30-B2supersedes 71073-76D60-B5i202401
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) &*DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#
main71073-76D30-C2supersedes 71073-76470-C5i202401
ARGENTINA SPEC&LUXURY PACKAGE&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71073-76D30-E2supersedes 71073-76D60-E2i202401
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER),HAZEL,TRIM4#
main71073-76D40-A1i202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),FROMAGE,TRIM0#
main71073-76D40-B2i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main71073-76D40-C2supersedes 71073-76670-C5i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main71073-76D40-E2i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main71073-76D50-B4i202401-202501
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH/BLUE,TRIM8#
main71073-76D50-B5i202401-202501
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#
main71073-76D50-C2supersedes 71073-76460-C6i202401-202501
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71073-76D50-E2supersedes 71073-76460-L0i202401-202501
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),HAZEL,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-76030i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
main71501-76040supersedes 71501-76030i202401-202512
main71511-76040i202207
main71511-76050i202401
PREMIUM PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER)
main71511-76060supersedes 71511-76040i202401-202512
MACAU SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM&FRONT SEAT ADJUSTER-*DRP(8
main71501-76050supersedes 71501-76040i202401
PHILIPPINES SPEC&LUXURY PACKAGE&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-76060i202207-202401
main71551-76070i202303-202401
SEAT COVER MATERIAL-L TEX,WITH(PERFORATION)
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-47010×4i202401-202501
71759BHOOK, FRONT SEATBACK
main71759-50040×4i202207-202401
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-76100-C0i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL),BLACK,TRIM2#,4#
main71811-76110-C0i202303-202401
BLACK,TRIM0#,1#,2#,4#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
main7181A-33010supersedes 7181A-47010i202207-202401
main7181A-47010i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-76020-C0i202401
BLACK,TRIM0#,1#,2#,4#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-47070-C1i202303-202401
BLACK,TRIM0#,1#,2#,4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-47070i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
main71873-76010supersedes 71873-47070i202207-202401
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-47080i202207-202401
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-47040-C1i202401
F SPORT&SEAT COVER MATERIAL-F SPORT(LEATHER(SMOOTH))&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER) & *DRS(SEAT MEMORY),BLACK,TRIM0#,1#,2#,3#,4#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-47070-C1i202207
BLACK,TRIM2#,4#
main71875-76020-C0i202401-202512
BLACK,TRIM0#,1#,2#,4#
71910AHEADREST ASSY, FRONT SEAT
main71910-76290×2i202501-202512
main71910-76290-C0×2i202207
BLACK,TRIM2#
main71910-76290-E3×2i202401
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL),HAZEL,TRIM4#
main71910-76301-B0×2i202207-202302
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#
main71910-76301-B6×2i202302
PREMIUM PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#
main71910-76301-C7×2i202207-202302
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM2#
main71910-76301-C8×2i202401
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)&BACK MONITOR-WITH(GUIDE),BLACK,TRIM2#
main71910-76301-E6×2i202207-202302
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(FRONT SEAT),HAZEL,TRIM4#
main71910-76301-E9×2i202302
SEAT COVER MATERIAL-L TEX&SEAT HEATER-WITH(FRONT SEAT),HAZEL,TRIM4#
main71910-76301-J1×2i202401-202512
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)&BACK MONITOR-WITH(GUIDE),BLUE,TRIM8#
main71910-33D10×2i202501-202512
F SPORT&SEAT COVER MATERIAL-F SPORT(FABRIC & L TEX)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER)
main71910-33D10-C3×2i202207-202302
F SPORT&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71910-33D10-C7×2i202302
F SPORT&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71910-33D10-D3×2i202207-202302
F SPORT,RED,TRIM3#
main71910-33D10-D6×2i202302
F SPORT,RED,TRIM3#
main71910-33E10-C1×2supersedes 71910-76500-C0i202207-202302
F SPORT&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71910-33E10-C5×2supersedes 71910-76500-C0i202302
F SPORT&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71910-33E10-D1×2i202207-202302
F SPORT&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RED,TRIM3#
main71910-33E10-D6×2i202401-202501
F SPORT&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),RED,TRIM3#
main71910-76301-E7×2i202207
PREMIUM PACKAGE&"GRACEFUL EXPLORER"*(G)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,MAUVE,TRIM4#
main71910-76311×2supersedes 71910-76301i202501-202512
LUXURY PACKAGE
main71910-76311-A0×2i202207-202302
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71910-76311-A6×2i202401
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER),FROMAGE,TRIM0#
main71910-76311-A7×2i202302
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71910-76311-B0×2i202207-202302
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71910-76311-B3×2supersedes 71910-76301-B6i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main71910-76311-C0×2i202207-202302
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71910-76311-C4×2supersedes 71910-76301-C8i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main71910-76311-E6×2i202207-202302
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
main71910-76311-E7×2supersedes 71910-76301-E9i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main71910-76430-A2×2i202401
PANAMA SPEC&F SPORT&STEERING WHEEL-WITH(HEATER & PADDLE SWITCH)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE,TRIM0#
main71910-76430-C2×2i202207-202302
PANAMA SPEC&F SPORT&STEERING WHEEL-WITH(HEATER & PADDLE SWITCH & VIBRATION)&FRONTSEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRI
main71910-76430-C4×2i202302
PANAMA SPEC&F SPORT&STEERING WHEEL-WITH(HEATER & PADDLE SWITCH & VIBRATION)&FRONTSEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRI
main71910-76430-D2×2i202207-202302
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC&F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMOR
main71910-76430-D3×2i202302
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC&F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMOR
main71910-76511-B4×2i202207-202302
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#
main71910-76511-B5×2i202302
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),WHITE ASH,TRIM1#
main71910-76511-C4×2supersedes 71910-76500-C0i202207-202302
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71910-76511-C5×2supersedes 71910-76500-C0i202401-202501
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLACK,TRIM2#
main71910-76511-E4×2supersedes 71910-76500-E1i202207-202302
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),HAZEL,TRIM4#
main71910-76511-E6×2supersedes 71910-76500-E1i202401-202501
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),HAZEL,TRIM4#
main71910-76511-J3×2i202401-202501
FRONT SEAT ADJUSTER-*DRP(8WAY POWER),BLUE,TRIM8#
main71910-76521-A3×2i202207-202302
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)& *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71910-76521-A4×2i202302
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)& *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RICH CREAM,TRIM0#
main71910-76521-B1×2i202207-202302
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)& *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#
main71910-76521-B2×2i202302
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)& *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE ASH,TRIM1#
main71910-76521-C2×2supersedes 71910-76500-C0i202207-202302
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)& *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71910-76521-C3×2supersedes 71910-76500-C0i202302
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)& *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71910-76521-E3×2supersedes 71910-76500-E1i202207-202302
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)& *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,HAZEL,TRIM4#
main71910-76521-E4×2supersedes 71910-76500-E1i202302
LUXURY PACKAGE&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)& *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,HAZEL,TRIM4#
main71910-76540-A1×2i202207
F SPORT&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,WHITE,TRIM0#
main71910-76540-C1×2supersedes 71910-76500-C0i202207-202302
F SPORT&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71910-76540-C2×2supersedes 71910-76500-C0i202302
F SPORT&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,BLACK,TRIM2#
main71910-76540-D1×2i202207-202302
F SPORT&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RED,TRIM3#
main71910-76540-D2×2i202401-202501
F SPORT&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)&SEAT VENTILATION-WITH,RED,TRIM3#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050×2i202501-202512
W(LOCK)
main71930-47050-C5×2i202207-202401
W(LOCK),BLACK,TRIM2#,4#
main71931-47030×2i202501-202512
W/O(LOCK)
main71931-47030-C4×2i202207-202401
W/O(LOCK),BLACK,TRIM2#,4#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-33570supersedes 72010-76220i202207-202401
main72010-33610i202207
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
main72010-76210i202207
main72010-76220supersedes 72010-33570i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
main72010-33560i202401
SINGAPORE SPEC&LUXURY PACKAGE&SMART ENTRY-WITH(POWER BACK DOOR & PANIC BUTTON)&HANDS FREE POWER BACK DOOR-WITH&OUTSIDE REAR VIEW MIRROR-*AREM & *BSM&FRONT SEAT ADJU
main72010-33620i202207
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC&F SPORT&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMOR
72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT
main72123-10100×2i202401-202501
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
main72125-47010×4i202401
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
main72125-47020×4supersedes 72125-47010i202401-202512
F SPORT&SEAT COVER MATERIAL-F SPORT(FABRIC & L TEX)&FRONT SEAT ADJUSTER-*DRP(8WAYPOWER)
72127ECOVER, SEAT TRACK BRACKET, INNER FRONT
main72123-10100×2i202207
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
main72137-47060i202401-202501
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
main72157-47080i202401
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-47050×2i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-47010×2i202401
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
main72265-47020×2supersedes 72265-47010i202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
72266COVER, SEAT TRACK UPPER RAIL, LH
main72265-47010×2i202401
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
main72265-47020×2supersedes 72265-47020i202207-202401
72277PROTECTOR, SEAT SLIDE POSITION SENSOR,
main72277-47050i202207-202401
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-76010-C0i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL),BLACK,TRIM2#,4#
72497BCOVER, VERTICAL ADJUSTER BRACKET, RH
main72498-47010i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-76010-C0i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL),BLACK,TRIM2#,4#
72551BCOVER, RECLINING HINGE, RH
main72551-76010-C0i202207
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL),BLACK,TRIM2#,4#
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-42090i202207-202401
76854CRETAINER, FRONT SEAT CUSHION COVER
main76854-44010i202407
SEAT HEATER-WITHOUT&FRONT SEAT ADJUSTER-*DRP(6WAY MANUAL)
79977AFELT, SEATBACK
main79977-33040×2i202401
8202
82667DHOLDER, CONNECTOR
main82666-47630i202207-202401
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-33010i202207
LUXURY PACKAGE&OUTSIDE REAR VIEW MIRROR-*AREM, ASPHERICAL, *BSM, *PVM, MEMORY&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER) & *DRS(SEAT MEMORY)
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
main87510-76130supersedes 87510-76170i202207
LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT)&FRONT SEAT ADJUSTER-*DRP(8WAY POWER)
87510MHEATER ASSY, FRONT SEATBACK, RH
main87530-76020i202207-202401
9011910601
main90119-10601
9014810007
main90148-10007
9356054012
main93560-54012
9418560600
main94185-60600

46 parts on this diagram · 18 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
