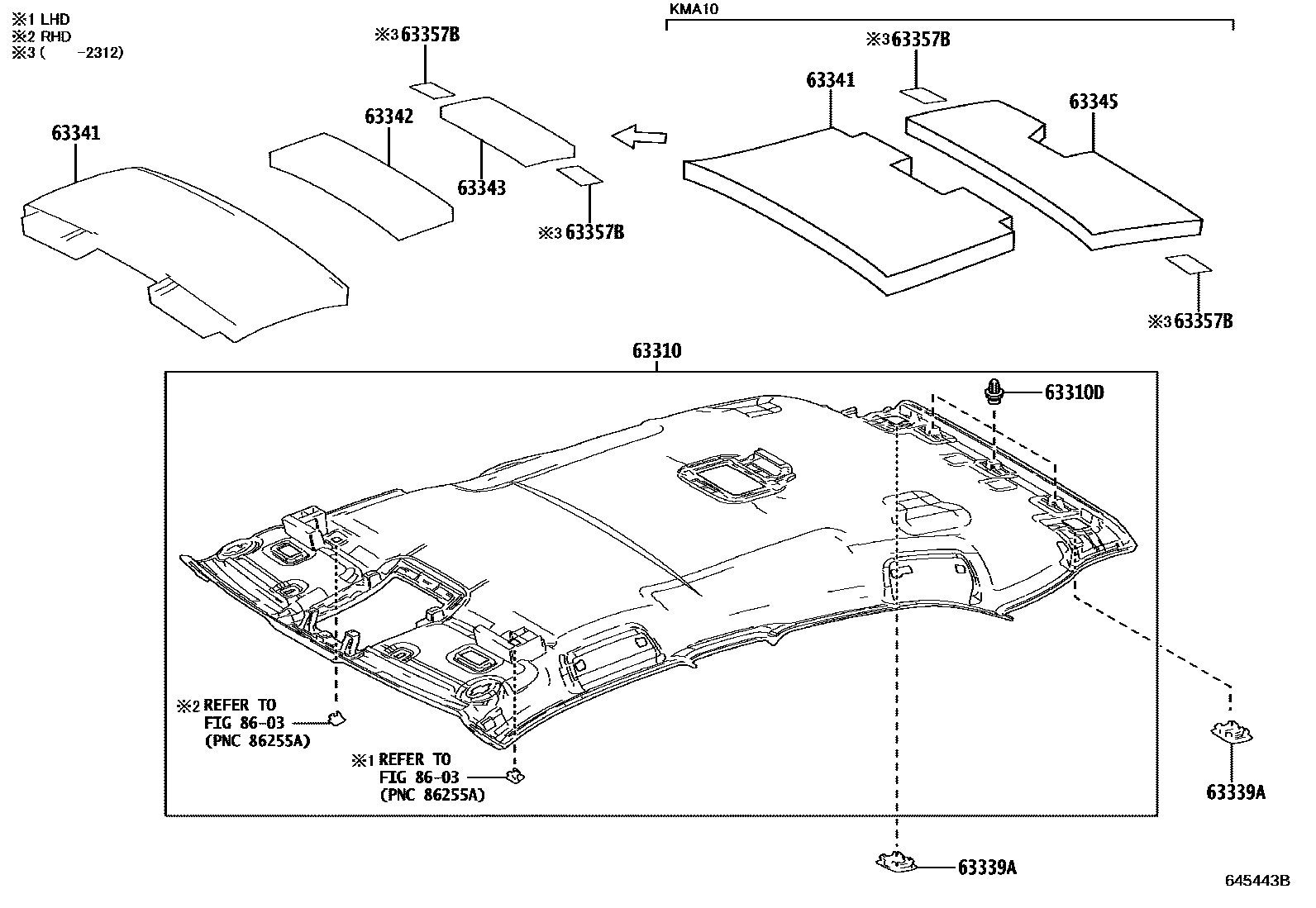

ROOF HEADLINING & SILENCER PAD

0001 1NORMAL ROOF 0002 1MOON ROOF

63310HEADLINING ASSY, ROOF

main63310-76110-A0iMZAA10,MZAH10,15..ARL,EUR,GCC,GEN; MZAH10..CHI202207

WHITE,TRIM00,8#; WHITE,TRIM8#

main63310-76110-C0iMZAA10,MZAH10,15..ARL,EUR,GCC,GEN; MZAH10..CHI202207

BLACK,TRIM0#,1#,2#,3#,4#; BLACK,TRIM01,1#,2#,3#,4#

main63310-76140-A0supersedes 63310-76110-A0iMZAH11,16..ARL,GCC,GEN; MZAH11,16..EUR202401

MOON ROOF-WITH,WHITE,TRIM00,02; MOON ROOF-WITH,WHITE,TRIM00,02,8#

main63310-76140-C0supersedes 63310-76110-C0iKMA10202401-202512

MOON ROOF-WITH,BLACK,TRIM1#,2#,4#

63310DCLIP, ROOF HEADLINING

main90467-09240×3iMZAA10,MZAH10,15202207

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-76010-A0×2iMZAA10,MZAH10,15..ARL,EUR,GCC,GEN; MZAH10..CHI202207

WHITE,TRIM00,8#; WHITE,TRIM8#

main63339-76010-C0×2iMZAH11,16..ARL,EUR,GCC,GEN202401

BLACK,TRIM01,1#,2#,3#,4#

63341PAD, ROOF SILENCER, NO.1

main63341-76030×2iKMA10202303-202401

63342PAD, ROOF SILENCER, NO.2

main63342-76030iMZAA10,MZAH10,15202207

63343PAD, ROOF SILENCER, NO.3

main63343-76050iMZAA10,MZAH10,15202207

63345PAD, ROOF SILENCER, NO.5

main63345-76030iKMA10202303-202401

63357BSILENCER, ROOF

main63357-78020×2iKMA10,MZAA10,MZAH1#202207-202309

MOON ROOF-WITH

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9 parts on this diagram · 2 diagrams in section
