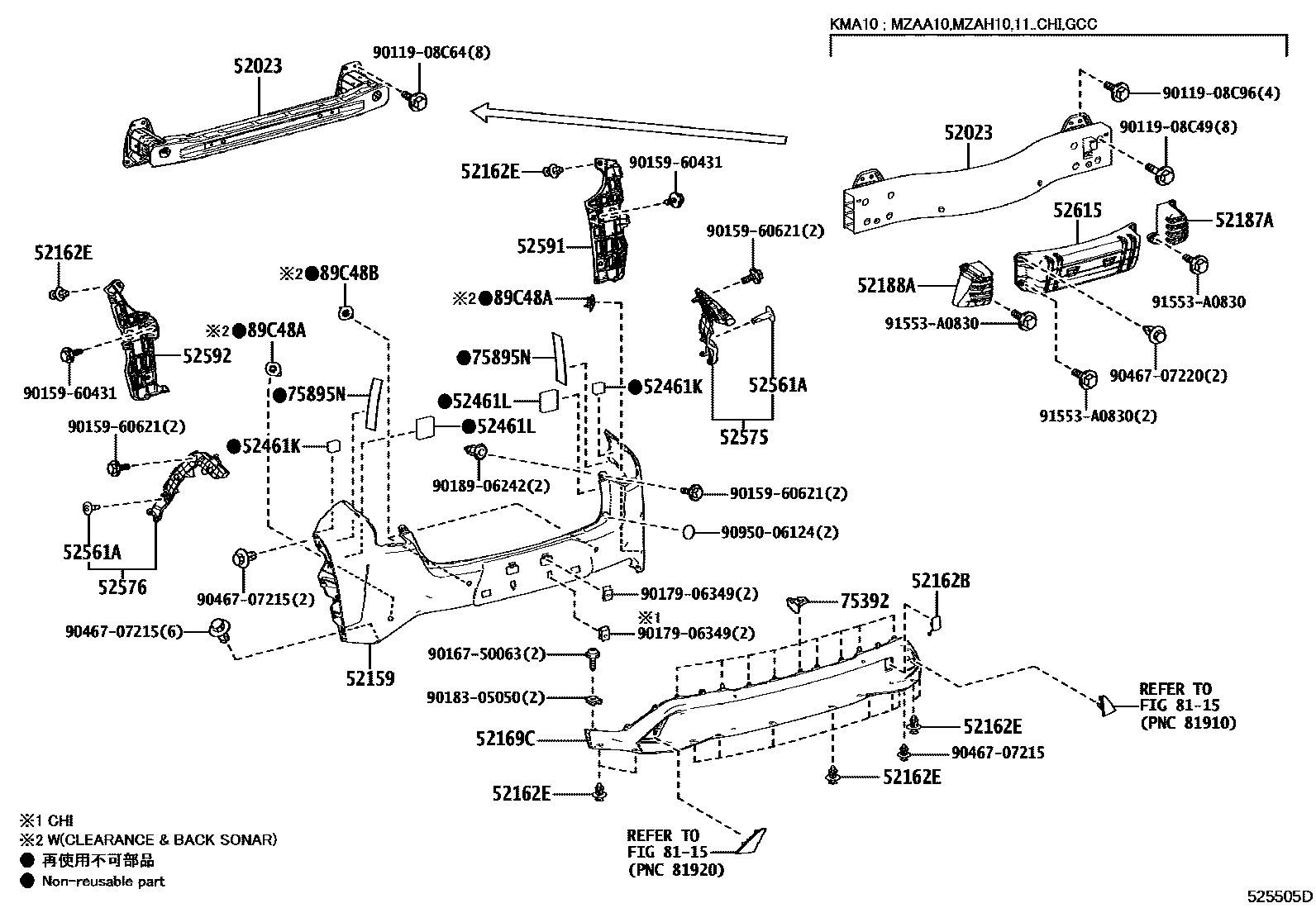

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ., PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
PAINT REQ., PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE)
52162BPLATE, REAR BUMPER, NO.1
F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)
52162EPIECE, REAR BUMPER
sub52161-0K040
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
NO PAINT REQ., F SPORT(DESIGN)&BLIND SPOT MONITOR-WITH
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52461KPAD, REAR BUMPER, NO.1
52461LPAD, REAR BUMPER, NO.2
52561ACLIP(FOR REAR BUMPER RETAINER)
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
75392RETAINER, OUTSIDE MOULDING
75895NTAPE, MOULDING, NO.1
8115
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,#,RH
DEST.PACKAGE (EXC/ERP.)-MALAYSIA SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,#,RH
DEST.PACKAGE (EXC/ERP.)-BURNEI SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,#,RH
DEST.PACKAGE (EXC/ERP.)-BURNEI SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,#,LH
F SPORT(DESIGN),MADDER RED,2LN ,2XR ,3T2,LH
DEST.PACKAGE (EXC/ERP.)-INDONESIA SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,#,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7,#,RH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,#,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2 ,2ZH,#,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,2LN ,3T2,#,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC COPPER,4Y5,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKI M.M.,6X4,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6,#,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,#,LH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7 ,9M0,#,LH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,#,LH
F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2 ,2ZH,#,LH
PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,#,LH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223,#,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,3T2,#,LH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC COPPER,4Y5,#,LH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANEKHAKI M.M.,6X4,#,LH
CELESTIAL BLUE GF.,8Y6,#,LH
F SPORT,WHITE NOVA GF.,083 ,2LJ ,2XN,RH
DEST.PACKAGE (EXC/ERP.)-MALAYSIA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(PARKINGSUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083 ,2LJ ,2XN,LH
DEST.PACKAGE (EXC/ERP.)-MALAYSIA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(PARKINGSUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1,LH
F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITENOVA GF.,083 ,2LJ,#,RH
F SPORT(DESIGN),HEAT BLUE CONTRAST LAYERI,2QF ,8X1,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),WHITE NOVA GF.,083 ,2LJ,#,LH
F SPORT,HEAT BLUE CONTRAST LAYERI,2QF ,8X1,#,LH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,#,RH
DEST.PACKAGE (EXC/ERP.)-MALAYSIA SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDER RED,3T2,#,RH
DEST.PACKAGE (EXC/ERP.)-BURNEI SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,#,RH
DEST.PACKAGE (EXC/ERP.)-BURNEI SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,#,LH
F SPORT(DESIGN),MADDER RED,2LN ,2XR ,3T2,LH
DEST.PACKAGE (EXC/ERP.)-INDONESIA SPEC& LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLAZING CARNELIAN CONTRAS,4Y1,#,LH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC TITANIUM,1J7,#,RH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,#,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2 ,2ZH,#,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),BLACK,212,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),MADDER RED,2LN ,3T2,#,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC COPPER,4Y5,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),TERRANE KHAKI M.M.,6X4,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),CELESTIAL BLUE GF.,8Y6,#,RH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC QUARTZ,085,#,LH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC TITANIUM,1J7 ,9M0,#,LH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC CHROME,1L1,#,LH
F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),SONIC IRIDIUM,1L2 ,2ZH,#,LH
PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACK,212,#,LH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),GRAPHITE BLACK GF.,223,#,LH
PREMIUM PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),MADDERRED,2LN ,3T2,#,LH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SONIC COPPER,4Y5,#,LH
LUXURY PACKAGE&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),TERRANEKHAKI M.M.,6X4,#,LH
CELESTIAL BLUE GF.,8Y6,#,LH
F SPORT,WHITE NOVA GF.,083 ,2LJ ,2XN,RH
DEST.PACKAGE (EXC/ERP.)-MALAYSIA SPEC&F SPORT&CLEARANCE & BACK SONAR-WITH(PARKINGSUPPORT BRAKE & *RCTB),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITE NOVA GF.,083 ,2LJ ,2XN,LH
F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),HEAT BLUE CONTRAST LAYERI,2QF ,2XT ,8X1,LH
F SPORT(DESIGN)&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),WHITENOVA GF.,083 ,2LJ,#,RH
F SPORT(DESIGN),HEAT BLUE CONTRAST LAYERI,2QF ,8X1,#,RH
F SPORT&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE),WHITE NOVA GF.,083 ,2LJ,#,LH
F SPORT,HEAT BLUE CONTRAST LAYERI,2QF ,8X1,#,LH
9011908C49
main90119-08C49
9011908C64
main90119-08C64
9011908C96
main90119-08C96
9015960431
main90159-60431
9015960621
main90159-60621
9016750063
main90167-50063
9017906349
main90179-06349
9018305050
main90183-05050
9018906242
main90189-06242
9046707215
main90467-07215
9046707220
main90467-07220
9095006124
main90950-06124
91553A0830
main91553-A0830
33 parts on this diagram · 2 diagrams in section
