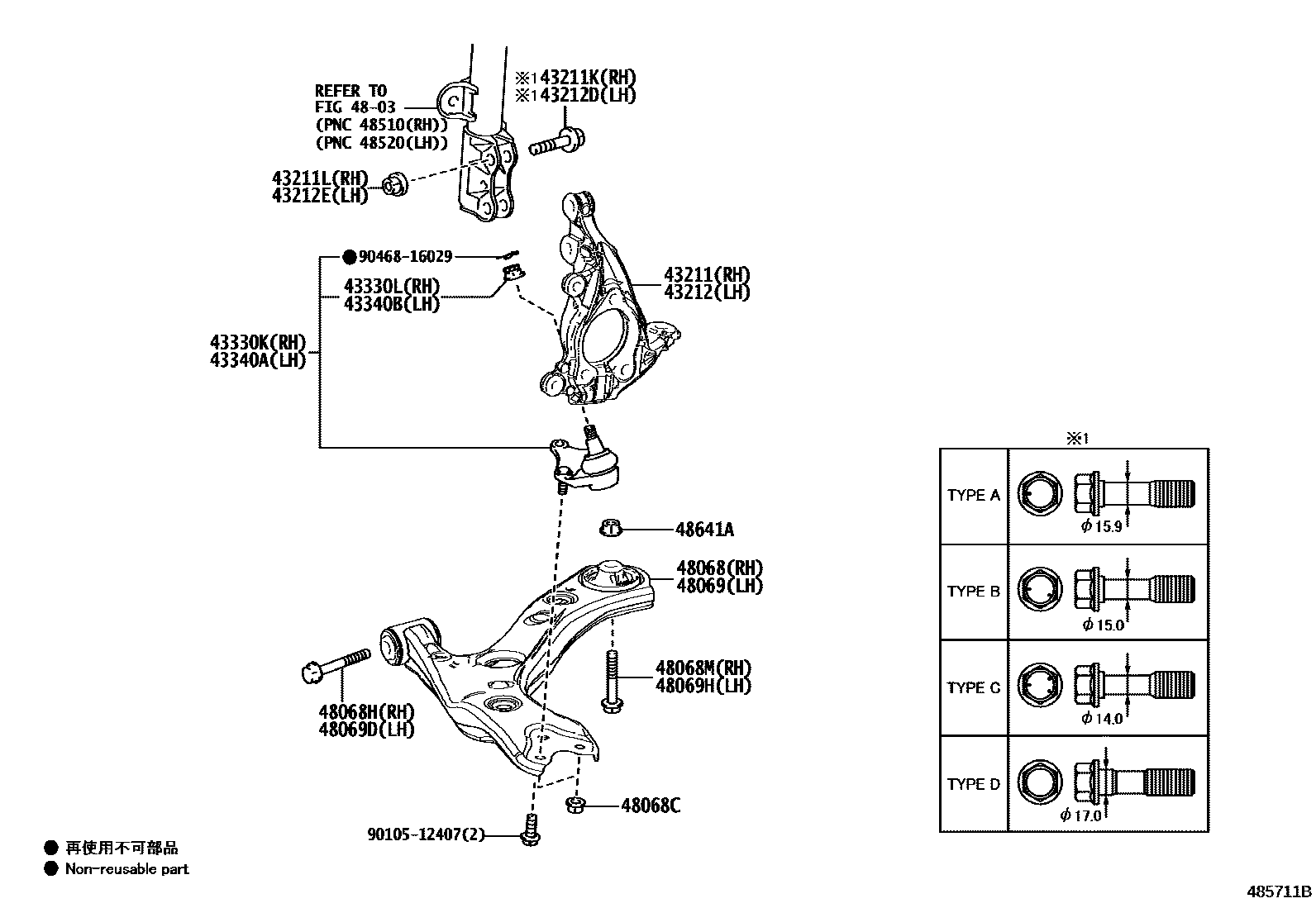

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-10130i202207-202401

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009i202207-202401

OD=15.9,TYPE A:REFER ILLUST.

main90105-17010i202207

OD=15,TYPE B:REFER ILLUST.

main90105-17011i202401-202501

OD=14,TYPE C:REFER ILLUST.

main90105-17021×2i202207-202401

OD=17,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2i202401-202512

43212KNUCKLE, STEERING, LH

main43212-10110i202207-202401

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009i202207-202401

OD=15.9,TYPE A:REFER ILLUST.

main90105-17010i202401

OD=15,TYPE B:REFER ILLUST.

main90105-17011i202401-202512

OD=14,TYPE C:REFER ILLUST.

main90105-17021×2i202401-202512

OD=17,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2i202207-202401

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49215i202207-202401

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011i202207-202401

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49215i202207-202401

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011i202207-202401

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-76010i202207-202401

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-12019×4i202207-202401

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16091i202207-202401

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180i202207-202401

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-76010i202207-202401

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16091i202207-202401

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180i202207-202401

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2i202207-202401

9010512407

main90105-12407

9046816029

main90468-16029

21 parts on this diagram · 1 diagram in section
