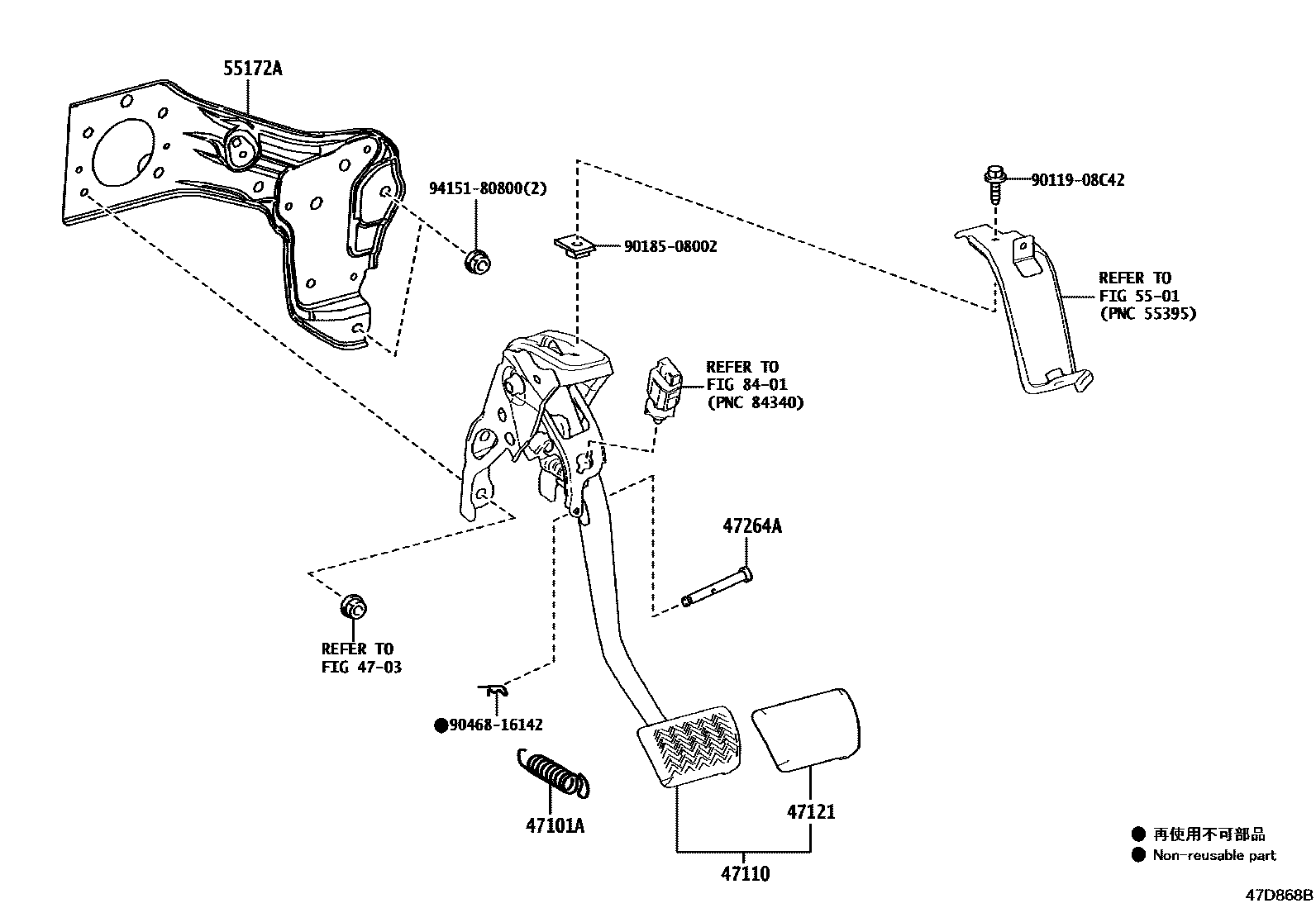

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iMZAA10202207

main90507-15013iMZAH10,15202207-202512

47110SUPPORT ASSY, BRAKE PEDAL

main47110-76090iMZAH10,15..RHD202207-202512

main47110-76170iMZAH11,16..LHD..(EUR,GCC,GEN)202207-202512

main47110-76190iMZAA10..RHD202207

main47110-76210iMZAA10..LHD202207

47121PAD, BRAKE PEDAL

main47121-16020iMZAH11..CHI202207-202512

47264APIN(FOR PUSH ROD)

main90249-06187iMZAA10202207

main90249-08309iKMA10202207-202512

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55172ABASE, BRAKE PEDAL SUPPORT

main55172-12160iMZAA10,MZAH10,15..LHD202207-202411

main55172-12161iKMA10..LHD202411-202512

main55172-12170iKMA10..RHD202207-202512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9018508002

main90185-08002

9046816142

main90468-16142

9415180800

main94151-80800

12 parts on this diagram · 4 diagrams in section
