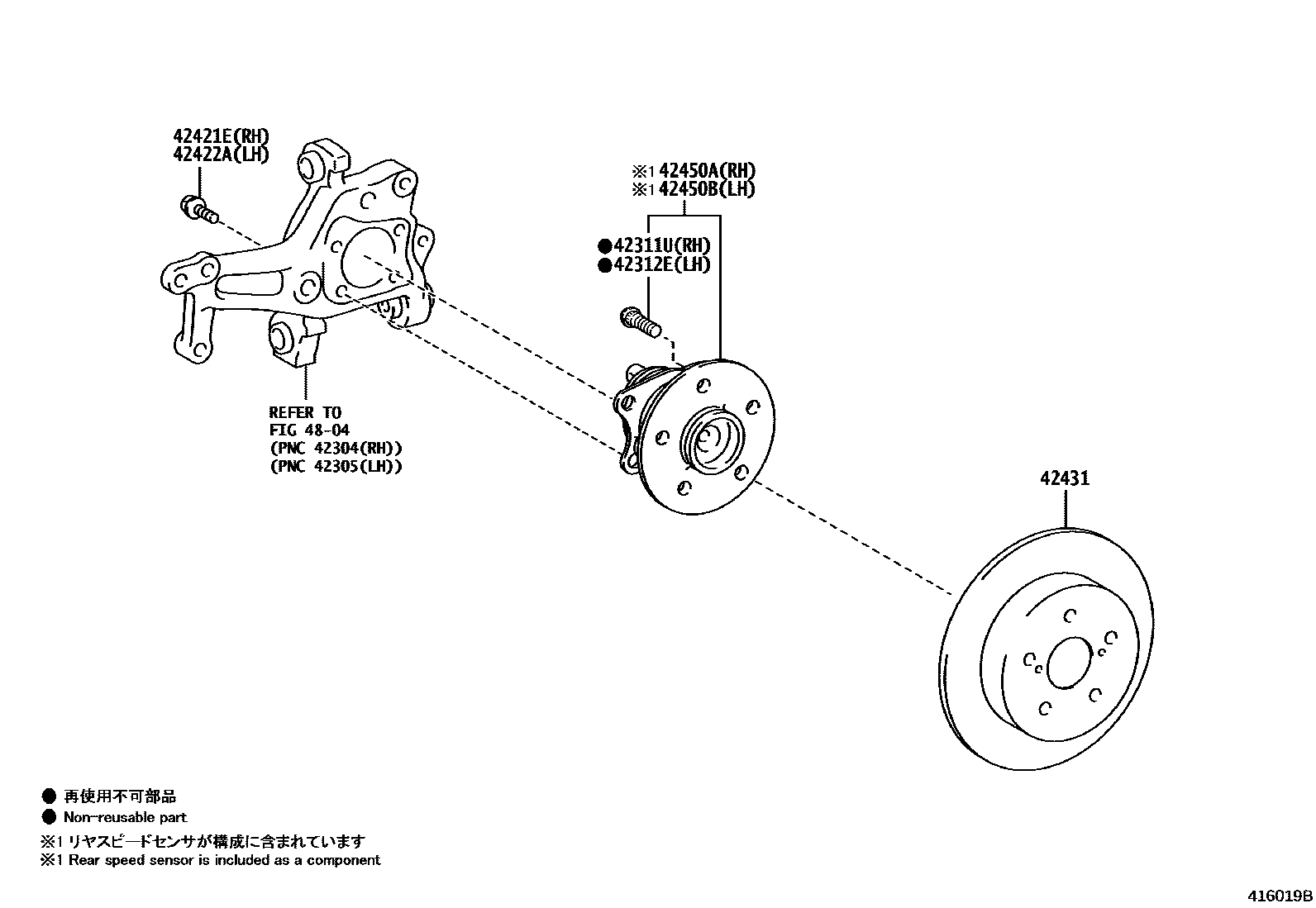

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iMZAA10,MZAH10202207

main90942-02082×5iMZAH15202207

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iMZAH11,16..ARL,EUR,GCC,GEN202401

main90942-02082×5iMZAH15202207

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iMZAA10,MZAH10,15202207

main90110-12016×4iKMA10202303-202401

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iMZAH11,16..ARL,EUR,GCC,GEN202401

main90110-12016×4iKMA10202401-202512

42431DISC, REAR

main42431-42080×2iKMA10202401-202512

main42431-78010×2iMZAH11..CHI202401-202501

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-10020iMZAH15202207

main42410-47050iMZAH16202401

main42450-42060iMZAH11..CHI202401-202501

main42450-76030iMZAA10,MZAH10202207

main42450-76050iKMA10202303-202401

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-10020iMZAH15202207

main42410-47050iMZAH16202401

main42450-42060iMZAH11..CHI202401-202501

main42450-76030iMZAA10,MZAH10202207

main42450-76050iKMA10202401-202512

4804

8 parts on this diagram · 3 diagrams in section
