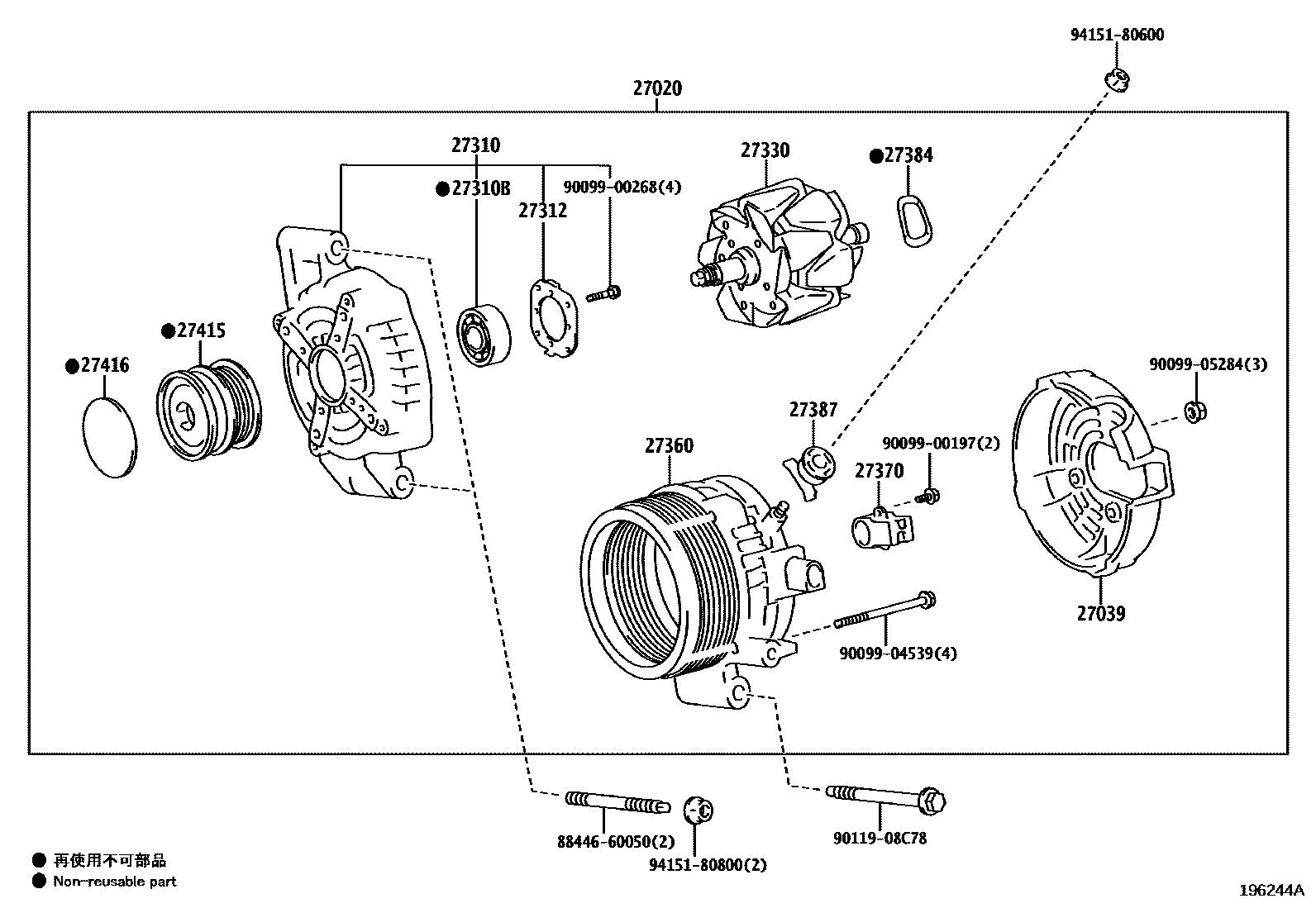

ALTERNATOR

27020ALTERNATOR ASSY

main27060-24050iM20AFKS..MZAA10202207

12V 150A

27039COVER, ALTERNATOR REAR END

main27039-31390iM20AFKS..MZAA10202207

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-25030iM20AFKS..MZAA10202207

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223iM20AFKS..MZAA10202207

27312PLATE, RETAINER

main27312-72100iM20AFKS..MZAA10202207

27330ROTOR ASSY, ALTERNATOR

main27330-58460iM20AFKS..MZAA10202207

27360COIL ASSY, ALTERNATOR

main27360-25030iM20AFKS..MZAA10202207

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220iM20AFKS..MZAA10202207

27384WASHER

main27384-50030iM20AFKS..MZAA10202207

27387INSULATOR, TERMINAL

main27387-20130iM20AFKS..MZAA10202207

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-24010iM20AFKS..MZAA10202207

27416CAP, ALTERNATOR PULLEY

main27416-47010iM20AFKS..MZAA10202207

8844660050BOLT, IDLE PULLEY

main88446-60050

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9011908C78

main90119-08C78

9415180600

main94151-80600

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section
