IGNITION COIL & SPARK PLUG / GLOW PLUG

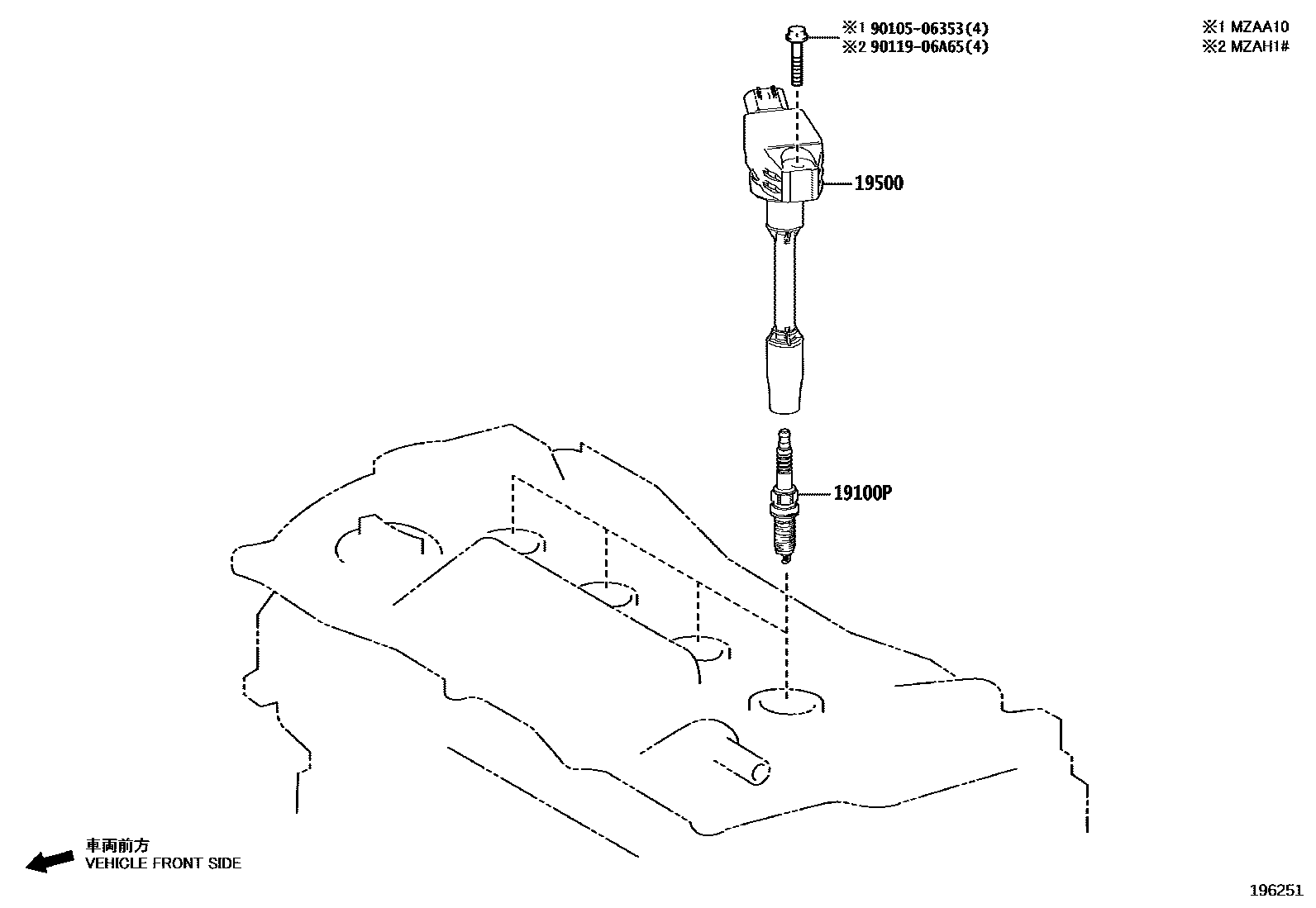

Parts diagram

19100PPLUG, SPARK

main90919-01289×4i202207

FC16HR-Q8

main90919-01297×4i202207

FC20HR-Q8

19500COIL ASSY, IGNITION

main90919-02276×4i202207

main90919-02277×4i202207

9010506353

main90105-06353

9011906A65

main90119-06A65

4 parts on this diagram · 1 diagram in section
