1104CYLINDER HEAD

→ Go to FIG 11-04

1708VACUUM PIPING

→ Go to FIG 17-08

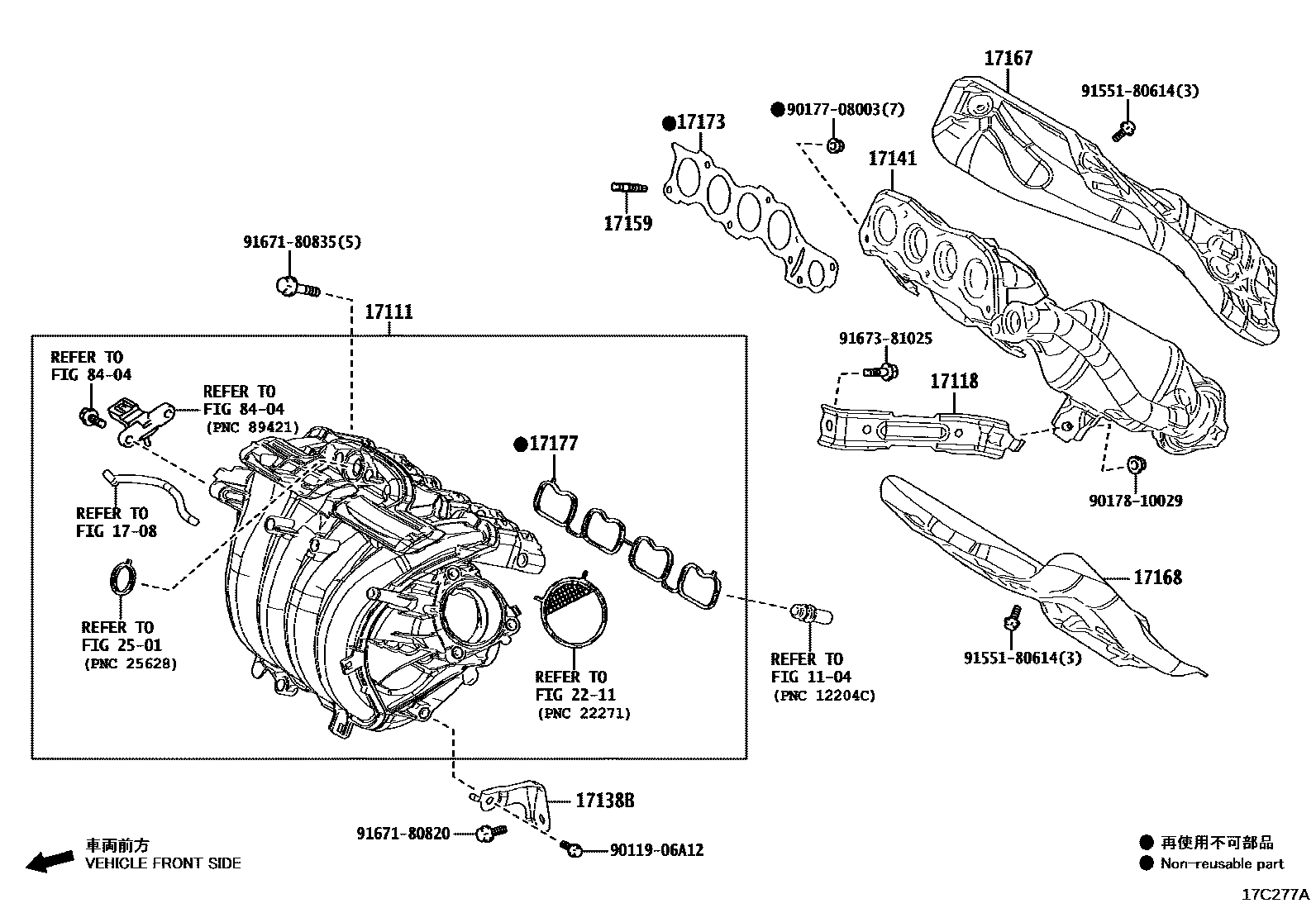

17111MANIFOLD, INTAKE

main17120-24010i202207

main17120-24020i202207-202501

17118STAY, MANIFOLD

main17118-24010i202207-202501

17138BSTAY, INTAKE MANIFOLD

main17138-24010i202207

main17138-24020i202207-202501

17141MANIFOLD, EXHAUST

main17141-24070i202207

*114=*688,DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24070i202207

*114=*688,DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24070i202207

*114=*688

main17141-24070i202207

*114=*688,DESTINATION PACKAGE(ERP)&MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24070i202207

*114=*688,DESTINATION PACKAGE(ERP)&RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24070i202207

*114=*688,DESTINATION PACKAGE(ERP)&UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24100i202207-202303

main17141-24120i202207

DESTINATION PACKAGE(ERP)&UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24120i202207

DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC&EXHAUST EMISSIONCONTROL-EURO 6

main17141-24120i202207

DESTINATION PACKAGE(ERP)&RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24150i202207

DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC

main17141-24170i202207

*114=*588

main17141-24170i202207

*114=*588,DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC

main17141-24360i202303-202501

main17141-24470i202401

*114=*753

main17141-24470i202401

*114=*753,SINGAPORE SPEC

main17141-24480i202401

*114=*754

main17141-24480i202401

*114=*754,EXHAUST EMISSION CONTROL-EURO 6

main17141-24480i202401

*114=*754,GEORGIA,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 6

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052i202207-202501

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24030i202207

DESTINATION PACKAGE(ERP)&UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17167-24030i202207-202303

main17167-24030i202207

DESTINATION PACKAGE(ERP)&DEST.PACKAGE (EXC/ERP.)-KAZAKHSTAN SPEC&EXHAUST EMISSIONCONTROL-EURO 6

main17167-24030i202207

DESTINATION PACKAGE(ERP)-GEORGIA,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17167-24030i202207

DESTINATION PACKAGE(ERP)&MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17167-24030i202207

DESTINATION PACKAGE(ERP)&RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17167-24030i202401

EXHAUST EMISSION CONTROL-EURO 6

main17167-24030i202401

GEORGIA,AZERBAIJAN SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17167-24060i202207-202311

DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC

main17167-24060i202303-202311

main17167-24061i202401

SINGAPORE SPEC

main17167-24061i202312

DEST.PACKAGE (EXC/ERP.)-SINGAPORE SPEC

main17167-24061i202401-202501

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-24030i202207-202501

(J)

main17168-F2050i202207-202501

(L)

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010i202207-202501

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020i202207-202501

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906A12

main90119-06A12

9017708003

main90177-08003

9017810029

main90178-10029

9155180614

main91551-80614

9167180820

main91671-80820

9167180835

main91671-80835

9167381025

main91673-81025
