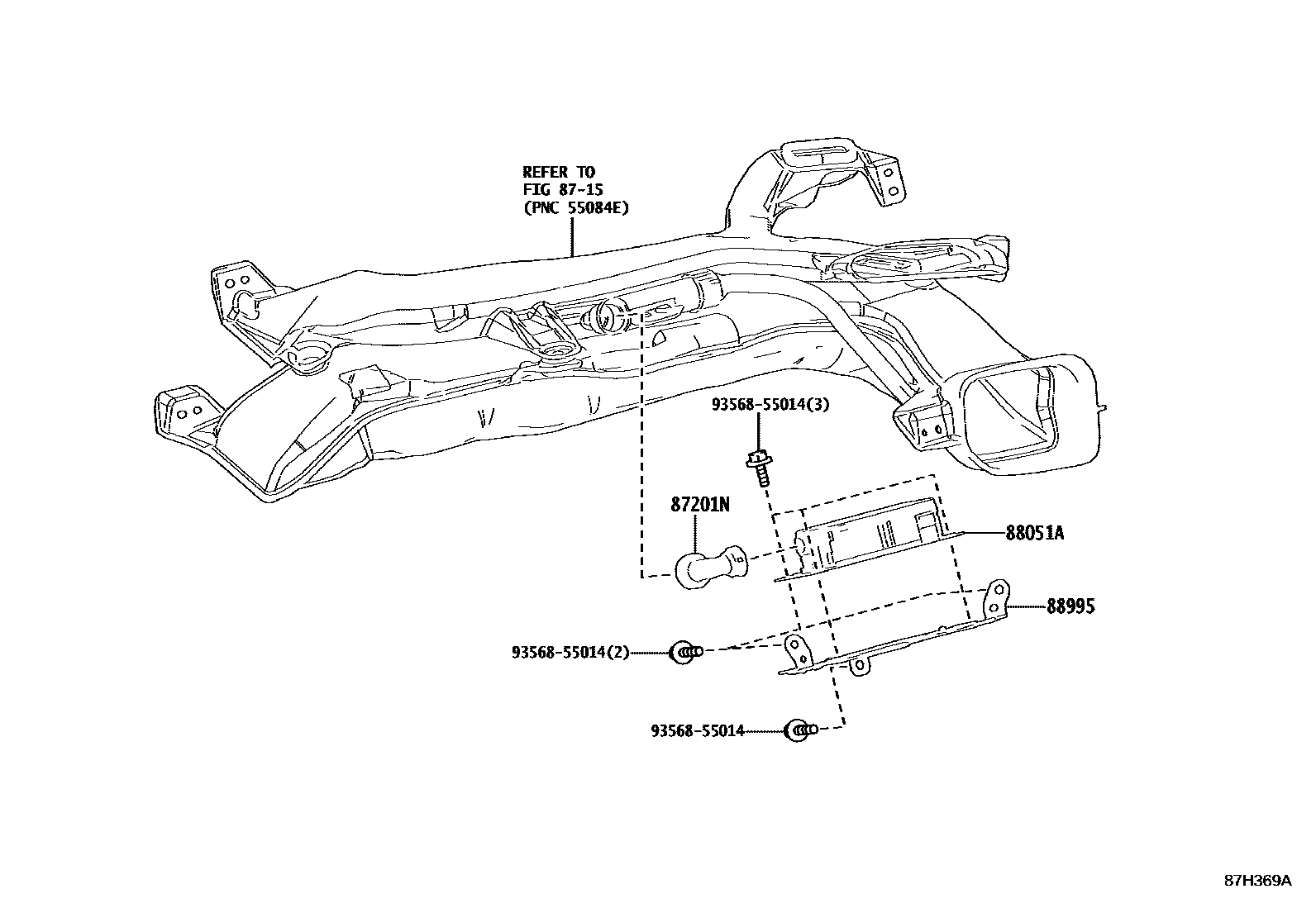

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715

87201NDUCT SUB-ASSY, AIR

main55848-76010iMZAA10,MZAH1#..LHD..GEN201810-202207

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main55848-76020iMZAA10,MZAH1#..RHD..EUR201901-202207

88051AGENERATOR SUB-ASSY,ION

main88051-28060iMZAH10..GEN;MZAA10,MZAH15..LHD..GEN201810-202108

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main88051-48010iMZAA10,MZAH1#..EUR202108-202207

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

88995BRACKET,ION GENERATOR, NO.1

main88995-76010iMZAA10,MZAH1#..LHD..GEN201810-202207

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main88995-76020iMZAA10,MZAH1#..RHD..EUR201901-202207

9356855014

main93568-55014

5 parts on this diagram · 2 diagrams in section
