8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010i201810-202207

88374CVALVE, SERVICE, NO.2

main88374-30010i201810-201910

88375BCAP, SERVICE VALVE, NO.1

main88375-30290i201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC; KAZAKHSTAN SPEC; RUSSIA SPEC; UKRAINE SPEC

main88375-30310i201810-202207

88375DCAP, SERVICE VALVE, NO.2

main88375-30280i201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC; KAZAKHSTAN SPEC; RUSSIA SPEC; UKRAINE SPEC

main88375-30320i201810-202207

88474DRYER, COOLER

main88474-12020i201810-202207

884A0CONDENSER ASSY, COOLER

main884A0-12010i201810-202207

main884A0-12020i201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC; KAZAKHSTAN SPEC; RUSSIA SPEC; UKRAINE SPEC

main884A0-76010i201811-202207

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-12A40i201810-202207

main88688-76060i201811-202207

88703HOSE SUB-ASSY, DISCHARGE

main88703-76020i201811-202207

main88703-76030i201810-202207

88704HOSE SUB-ASSY, SUCTION

main88704-12A20i201810-202010

TAPE COLOR : PINK

main88704-12A90i202010-202207

TAPE COLOR : BLUE

main88704-76020i201811-202207

88707BTUBE SUB-ASSY, SUCTION, B

main88707-12410i202108-202207

main88707-76010i201901-202207

main88707-76020i201811-202207

main88707-76040supersedes 88707-76030i201811-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC; KAZAKHSTAN SPEC; MOROCCO SPEC; RUSSIA SPEC; UKRAINE SPEC

main88710-76120i201901-202009

main88710-76130i201810-202108

main88710-76140supersedes 88710-12A00i201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC; KAZAKHSTAN SPEC; RUSSIA SPEC; UKRAINE SPEC

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-12C30i202108-202207

main88710-76040i201901-201910

main88710-76050i201811-201910

main88710-76070supersedes 88710-76060i201811-201910

AZERBAIJAN, ARMENIA, GEORGIA SPEC; KAZAKHSTAN SPEC; MOROCCO SPEC; RUSSIA SPEC; UKRAINE SPEC

main88710-76080i201901-201910

main88710-76090i201810-201910

main88710-76110supersedes 88710-12B00i201810-201910

AZERBAIJAN, ARMENIA, GEORGIA SPEC; KAZAKHSTAN SPEC; RUSSIA SPEC; UKRAINE SPEC

main88710-76170i201910-202207

main88710-76180i201910-202207

main88710-76200supersedes 88710-76190i201910-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC; KAZAKHSTAN SPEC; MOROCCO SPEC; RUSSIA SPEC; UKRAINE SPEC

main88710-76210i201910-202009

main88710-76220i201910-202108

main88710-76240supersedes 88710-12C10i201910-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC; KAZAKHSTAN SPEC; RUSSIA SPEC; UKRAINE SPEC

88718LCLAMP, PIPING

main88718-52280i201810-202207

88718MCLAMP, PIPING

main88718-47110i201810-202207

88718NCLAMP, PIPING

main88718-1E150i201810-202207

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010i201810-202207

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

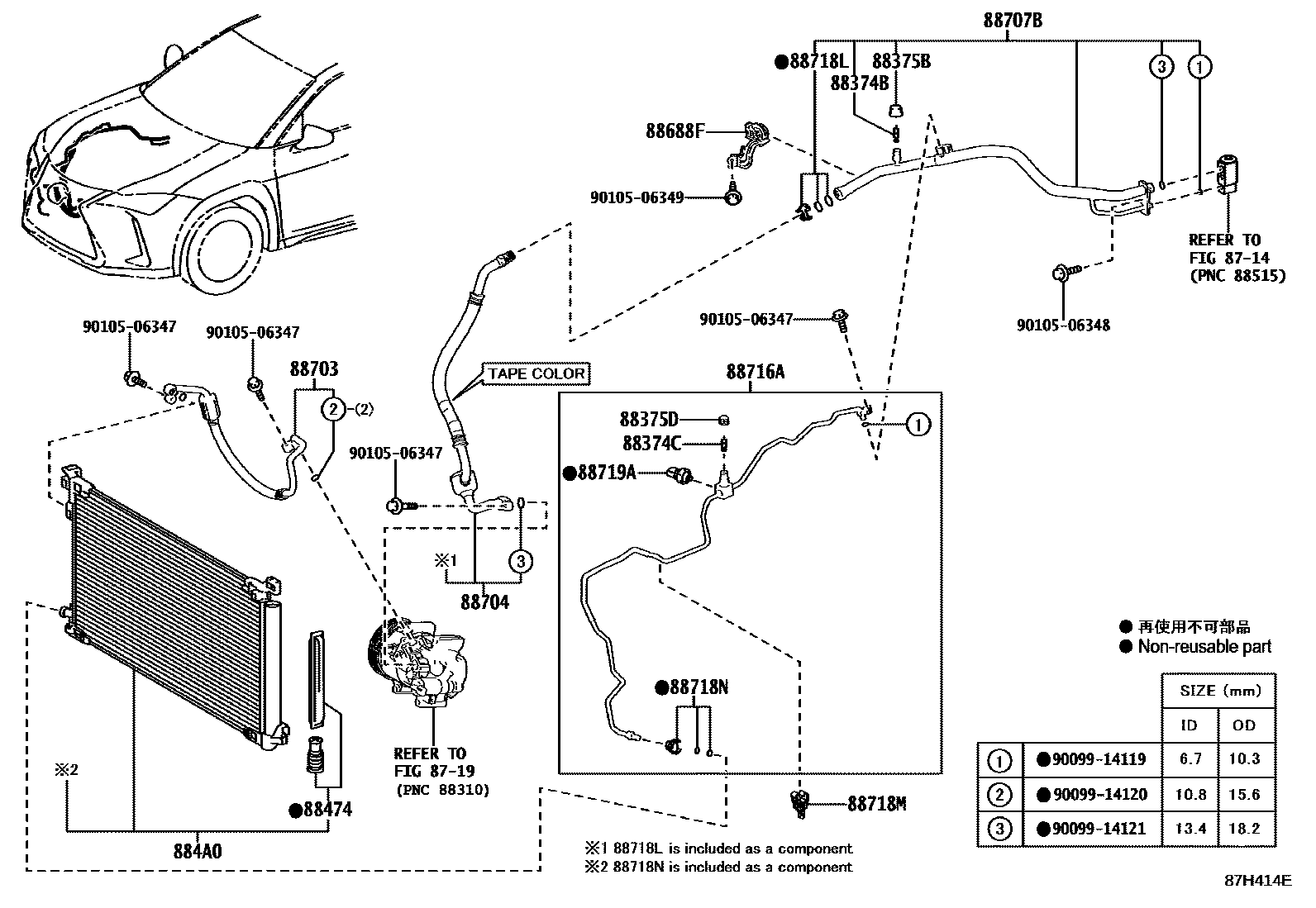

HEATING & AIR CONDITIONING - COOLER PIPING
