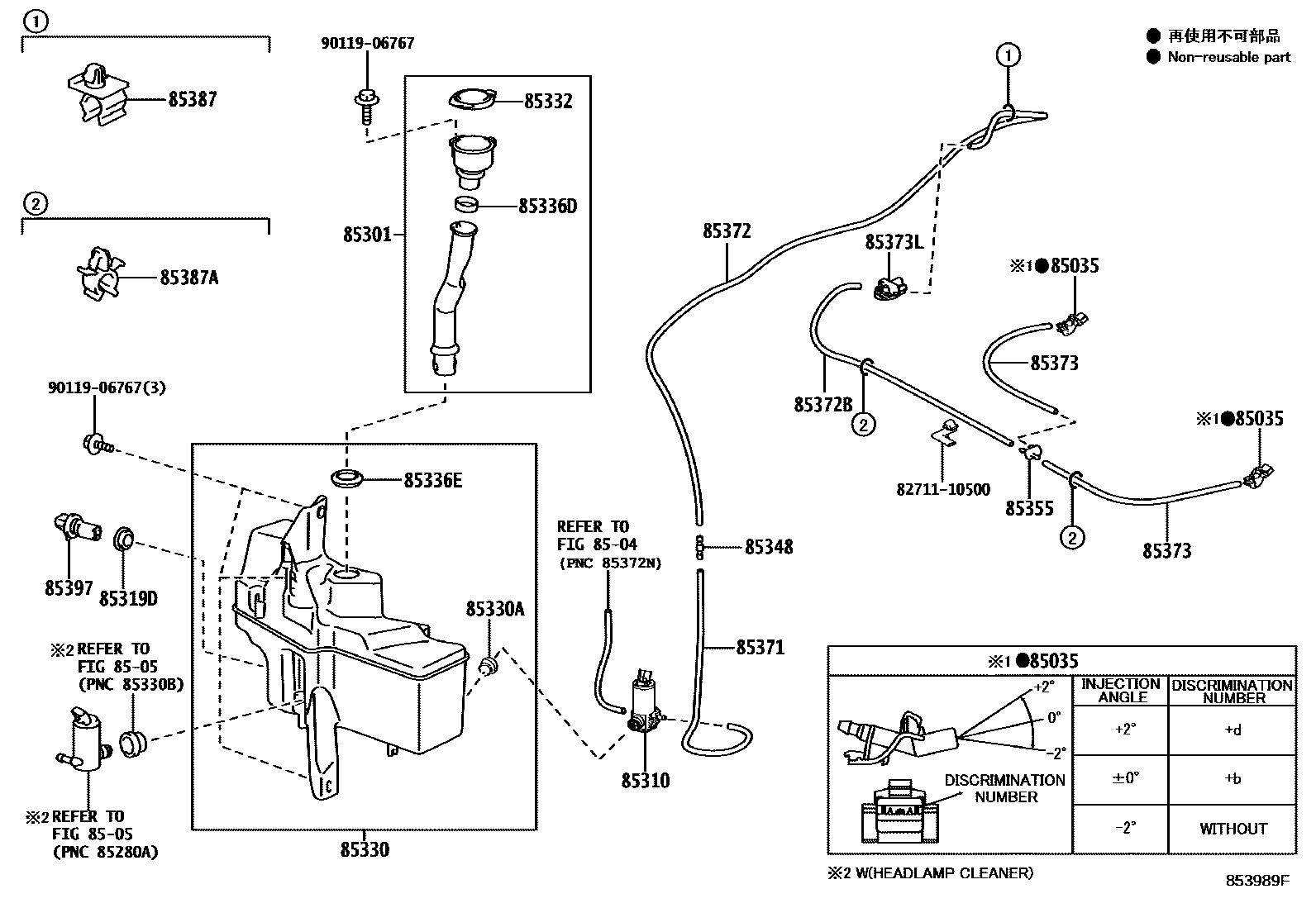

85035NOZZLE SUB-ASSY, WASHER

main85381-30220i201810-202207

ANGLE 0

main85381-30230i201810-202207

ANGLE -2

main85381-30240i201810-202207

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85319-76110i201810-202102

main85319-76111i202102-202207

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100i201810-202207

85319DPACKING, FRONT WASHER

main85319-33230i201810-202207

85330JAR ASSY, WINDSHIELD WASHER

main85315-76110i201810-202207

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201810-202207

85332CAP, WINDSHIELD WASHER JAR

main85316-76110i201810-202102

main85316-76111i202102-202207

85336DPACKING, WINDSHIELD WASHER JAR

main85336-42320i201810-202207

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201810-202207

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201810-202207

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201810-202207

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201810-202207

L=1450(*H,L=490)

main90099-33080i201810-202207

L=1450(*H,L=490),HEADLAMP CLEANER-WITH(WASHER SYNCHRONIZE)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201810-202207

L=1450(*H,L=1300)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201810-202207

L=1450(*H,L=700)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i201810-202207

L=1450(*H,L=360)

85373LGROMMET, WASHER

main85373-12050i201810-202207

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-32020i201810-202207

85387ACLAMP, WASHER, NO.2

main90469-07011i201810-202207

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i201810-202207

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

9011906767

main90119-06767
