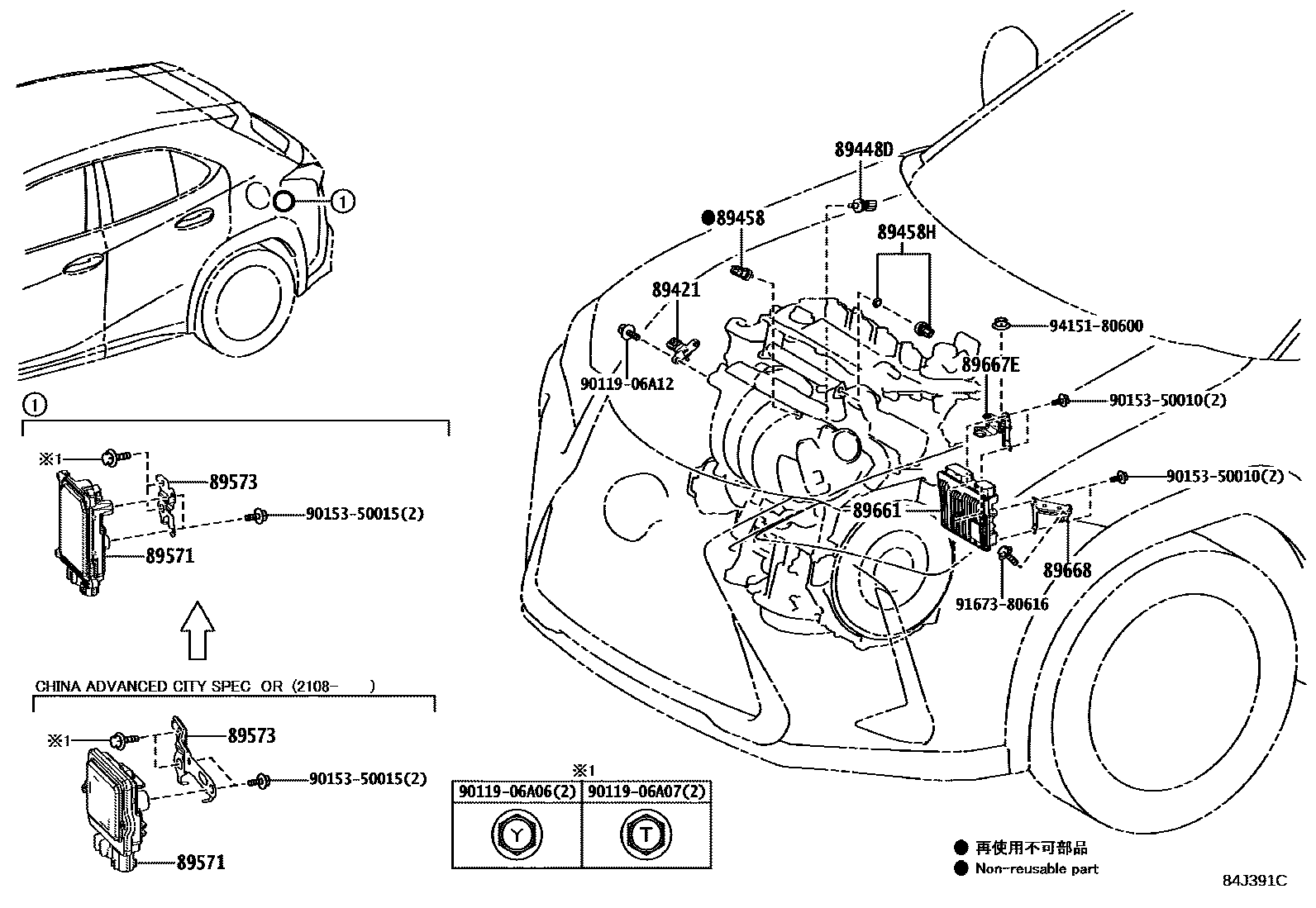

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMZAA10,MZAH1#201810-202207

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMZAA10,MZAH1#201810-202207

89458SENSOR, FUEL PRESSURE

main89458-33030iMZAA10,MZAH1#201810-202207

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iMZAA10,MZAH1#201810-202207

89571COMPUTER, FUEL PUMP CONTROL

main89571-12010iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202108

main89571-42010iMZAA10..CHI202010-202207

main89571-48010iMZAH1#;MZAA10..ARL,EUR,GCC,GEN202108-202207

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-76010iMZAH1#;MZAA10..ARL,EUR,GCC,GEN202010-202207

main89573-76020iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202108

89661COMPUTER, ENGINE CONTROL

main89661-76220iMZAH10..RHD..GEN201811-202207

DENSO

main89661-76220iMZAH15..RHD..GEN201811-202207

DENSO,LATIN AMERICA SPEC

main89661-76220iMZAH15..RHD..GEN201811-202207

DENSO,INDONESIA SPEC

main89661-76220iMZAH15..RHD..GEN201811-202207

DENSO,BRUNEI SPEC

main89661-76220iMZAH15..RHD..GEN201811-202207

DENSO,DOMINICA, PERU SPEC

main89661-76220iMZAH15..RHD..GEN201811-202207

DENSO,SOUTH AFRICA SPEC

main89661-76230iMZAH1#..EUR201811-202010

DENSO

main89661-76240iMZAH1#..LHD..EUR201811-202207

DENSO,MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 6

main89661-76240iMZAH1#..LHD..EUR201811-202207

DENSO,AZERBAIJAN, ARMENIA, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 6

main89661-76240iMZAH1#..LHD..EUR201811-202207

DENSO,KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6

main89661-76240iMZAH1#..LHD..EUR201811-202207

DENSO,UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main89661-76240iMZAH1#..LHD..EUR201811-202207

DENSO,RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6

main89661-76240iMZAH1#..LHD..EUR201811-202207

DENSO

main89661-76260iMZAH1#..CHI202010-202207

DENSO

main89661-76290iMZAA10..LHD..EUR201810-201909

DENSO,UKRAINE SPEC

sub89661-76291

main89661-76290iMZAA10..LHD..EUR201810-201909

DENSO,AZERBAIJAN, ARMENIA, GEORGIA SPEC

sub89661-76291

main89661-76290iMZAA10..LHD..EUR201810-201909

DENSO

sub89661-76291

main89661-76290iMZAA10..LHD..EUR201810-201909

DENSO,KAZAKHSTAN SPEC

sub89661-76291

main89661-76291iMZAA10..EUR201910-202010

DENSO,UKRAINE SPEC

main89661-76291iMZAA10..LHD..EUR201910-202010

DENSO,AZERBAIJAN, ARMENIA, GEORGIA SPEC

main89661-76291iMZAA10..LHD..EUR201910-202010

DENSO,KAZAKHSTAN SPEC

main89661-76291iMZAA10..LHD..EUR201910-202010

DENSO

main89661-76320iMZAA10..CHI201812-202010

DENSO

main89661-76330iMZAA10..GCC201810-202010

DENSO,SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76330iMZAA10..LHD..GEN201810-202010

DENSO,PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76330iMZAA10..LHD..GEN201810-202010

DENSO,INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76330iMZAA10..LHD..GEN201810-202010

DENSO

main89661-76330iMZAA10..LHD..GEN201810-202010

DENSO,DOMINICA, PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76330iMZAA10..LHD..GEN201810-202010

DENSO,CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76330iMZAA10..LHD..GEN201810-202010

DENSO,MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76330iMZAA10..LHD..GEN201810-202010

DENSO,BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76390iMZAH1#..CHI201812-202010

DENSO

main89661-76440iMZAA10..ARL,GEN201810-202010

DENSO

main89661-76490iMZAH1#..EUR202010-202207

DENSO

main89661-76530iMZAA10..CHI202010-202207

DENSO

main89661-76540iMZAA10..EUR202010-202108

DENSO,KAZAKHSTAN SPEC

main89661-76540iMZAA10..EUR202010-202108

DENSO

main89661-76540iMZAA10..EUR202010-202108

DENSO,AZERBAIJAN, ARMENIA, GEORGIA SPEC

main89661-76540iMZAA10..EUR202010-202108

DENSO,UKRAINE SPEC

main89661-76560iMZAA10..ARL,GEN202010-202207

DENSO

main89661-76570iMZAA10..GCC202010-202207

DENSO

main89661-76570iMZAA10..GCC202010-202207

DENSO,SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76570iMZAA10..GCC202010-202207

DENSO,DOMINICA, PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76570iMZAA10..GCC202010-202207

DENSO,MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76570iMZAA10..GCC202010-202207

DENSO,BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76570iMZAA10..GCC202010-202207

DENSO,PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76570iMZAA10..GCC202010-202207

DENSO,INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76570iMZAA10..GCC202010-202207

DENSO,GUATEMALA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76570iMZAA10..GCC202010-202207

DENSO,PANAMA SPEC&EXHAUST EMISSION CONTROL-EURO 5

main89661-76580iMZAA10..EUR202108-202207

DENSO

main89661-76580iMZAA10..EUR202108-202207

DENSO,AZERBAIJAN, ARMENIA, GEORGIA SPEC

main89661-76580iMZAA10..EUR202108-202207

DENSO,UKRAINE SPEC

main89661-76580iMZAA10..EUR202108-202207

DENSO,KAZAKHSTAN SPEC

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12350iMZAA10201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main89667-12350iMZAA10201810-202207

UKRAINE SPEC

main89667-12350iMZAA10201810-202207

KAZAKHSTAN SPEC

main89667-76010iMZAH1#201811-202207

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12280iMZAA10201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC

main89668-12280iMZAA10201810-202207

UKRAINE SPEC

main89668-12280iMZAA10201810-202207

KAZAKHSTAN SPEC

main89668-76010iMZAH1#201811-202207

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9011906A12

main90119-06A12

9015350010

main90153-50010

9015350015

main90153-50015

9167380616

main91673-80616

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
