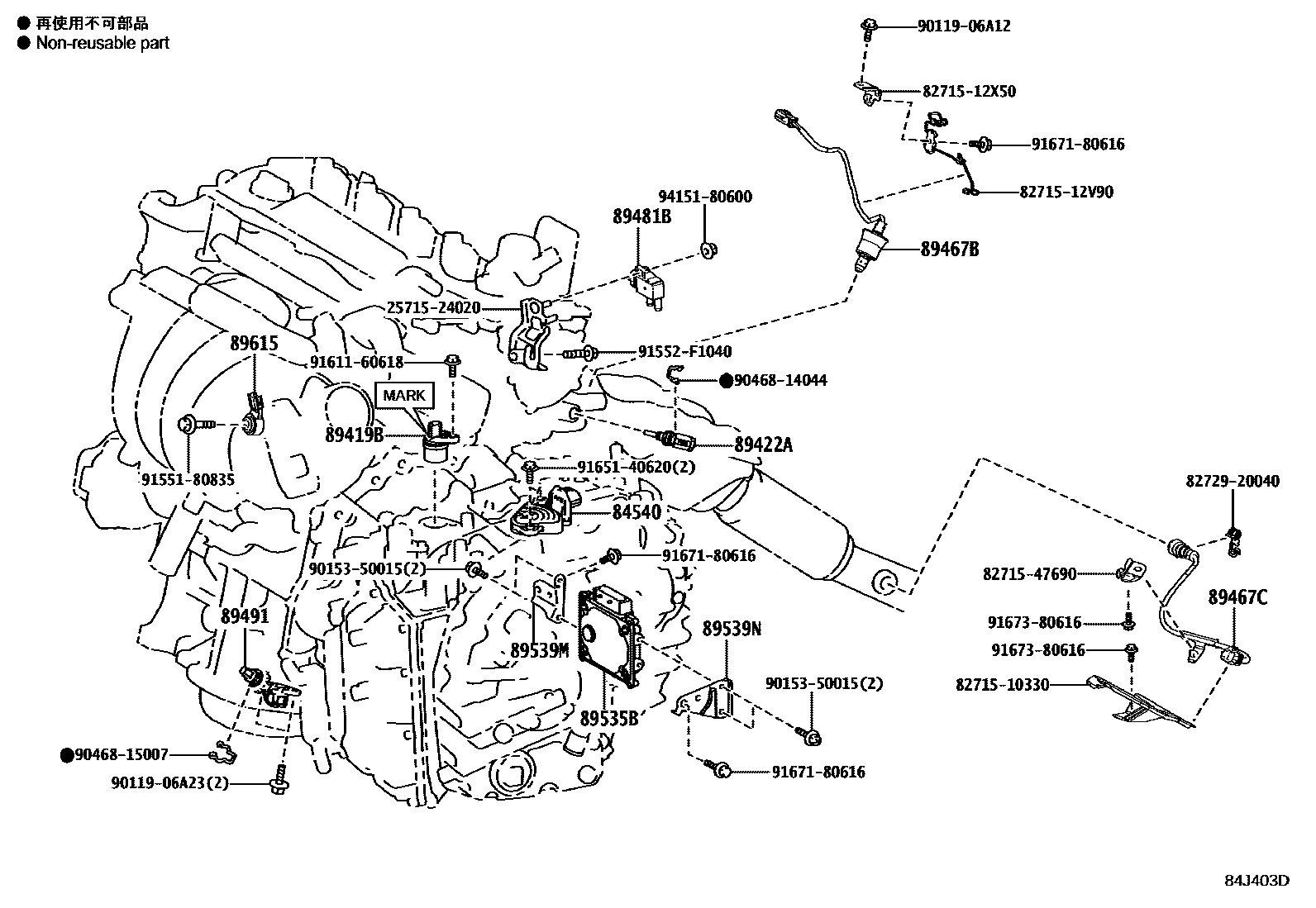

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1CONSOLE BOX 0012 1CONSOLE BOX 0013 1STEERING 0014 1SEAT 0015 1DOOR & ROOF 0016 1FLOOR & BACK DOOR 1/2 0017 1FLOOR & BACK DOOR 2/2 0018 1FLOOR & BACK DOOR 2/2

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZAA10201810-202207

89419BSENSOR, SHIFT STROKE

main89419-12010iMZAA10201810-201904

main89419-12011iMZAA10201905-202108

main89419-K2010iMZAA10202108-202207

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZAA10,MZAH1#201810-202207

89467BSENSOR, AIR FUEL RATIO

main89467-12280iMZAA10,MZAH1#201810-202207

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-76010iMZAA10,MZAH1#201810-202207

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iMZAA10,MZAH1#..EUR201810-202207

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iMZAA10,MZAH1#201810-202204

main89491-33052iMZAA10,MZAH1#202205-202207

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-76050iMZAA10..RHD..GEN201810-202207

BRUNEI SPEC

main89535-76060iMZAA10..ARL,EUR,GEN201810-202207

main89535-76080supersedes 89535-76090iMZAA10..CHI202010-202207

main89535-76070iMZAA10..LHD..EUR201810-202207

KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-12070iMZAA10201810-202207

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-12080iMZAA10201810-202207

89615SENSOR, KNOCK CONTROL

main89615-20090iMZAA10,MZAH1#201810-202207

2571524020BRACKET, EMISSION CONTROL VALVE

main25715-24020

8271510330BRACKET,WIRING HARNESS CLAMP

main82715-10330

8271512V90BRACKET,WIRING HARNESS CLAMP

main82715-12V90

8271512X50BRACKET,WIRING HARNESS CLAMP

main82715-12X50

8271547690BRACKET,WIRING HARNESS CLAMP

main82715-47690

8272920040

main82729-20040

9011906A12

main90119-06A12

9011906A23

main90119-06A23

9015350015

main90153-50015

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

91552F1040

main91552-F1040

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

9167380616

main91673-80616

9415180600

main94151-80600

29 parts on this diagram · 18 diagrams in section
