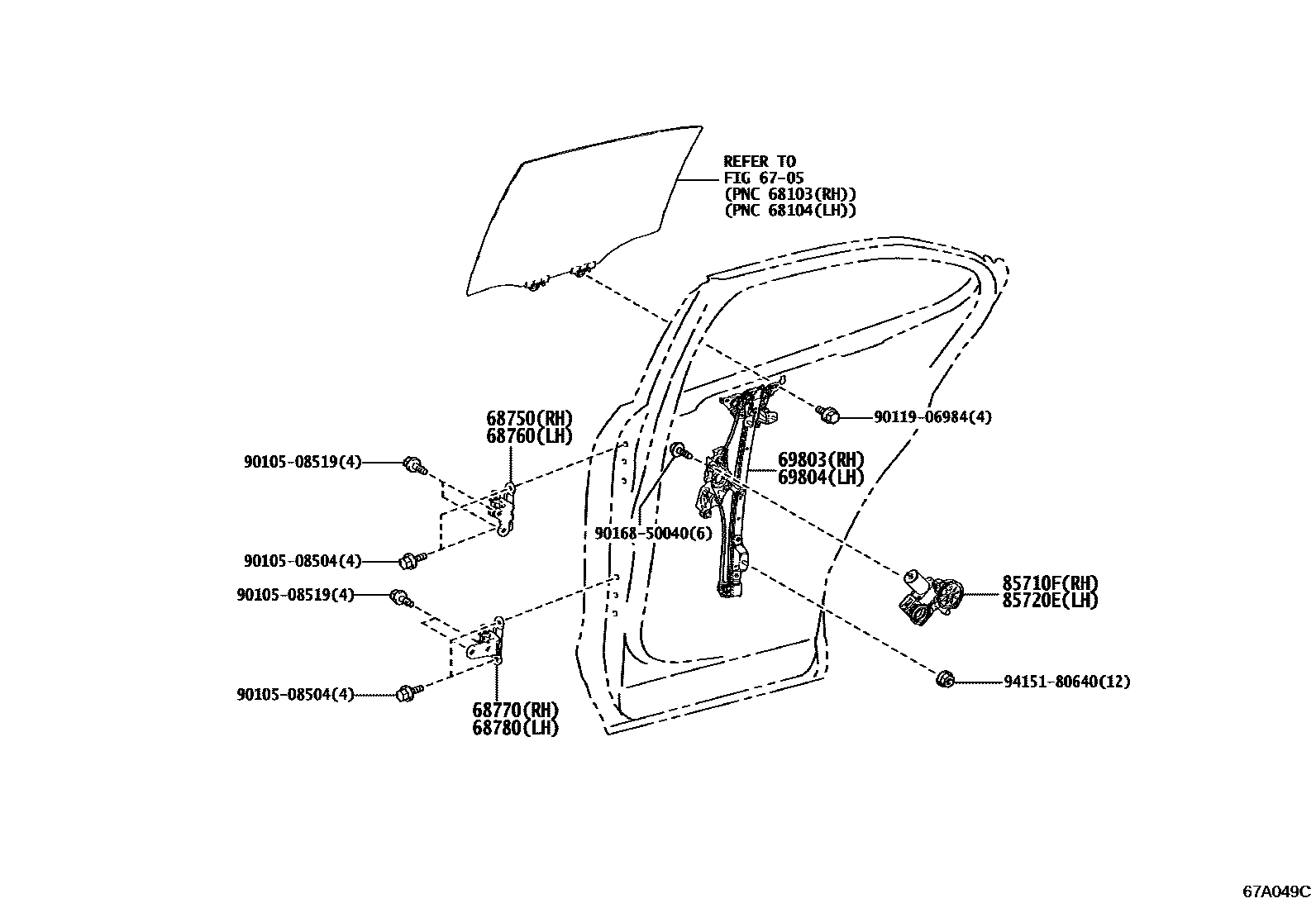

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-76010iMZAA10,MZAH1#..CHI201812-201910

main68750-76020iMZAA10,MZAH1#..ARL,EUR,GCC,GEN201810-202207

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-76010iMZAA10,MZAH1#..CHI201812-201910

main68760-76020iMZAA10,MZAH1#..ARL,EUR,GCC,GEN201810-202207

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-76010iMZAA10,MZAH1#..CHI201812-201910

main68770-76020iMZAA10,MZAH1#..ARL,EUR,GCC,GEN201810-202207

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-76010iMZAA10,MZAH1#..CHI201812-201910

main68780-76020iMZAA10,MZAH1#..ARL,EUR,GCC,GEN201810-202207

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-76010iMZAA10,MZAH1#201810-202104

main69803-76011iMZAA10,MZAH1#202105-202207

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-76010iMZAA10,MZAH1#201810-202104

main69804-76011iMZAA10,MZAH1#202105-202207

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-76030iMZAA10,MZAH1#201810-202207

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-76030iMZAA10,MZAH1#201810-202207

9010508504

main90105-08504

9010508519

main90105-08519

9011906984

main90119-06984

9016850040

main90168-50040

9415180640

main94151-80640

14 parts on this diagram · 1 diagram in section
