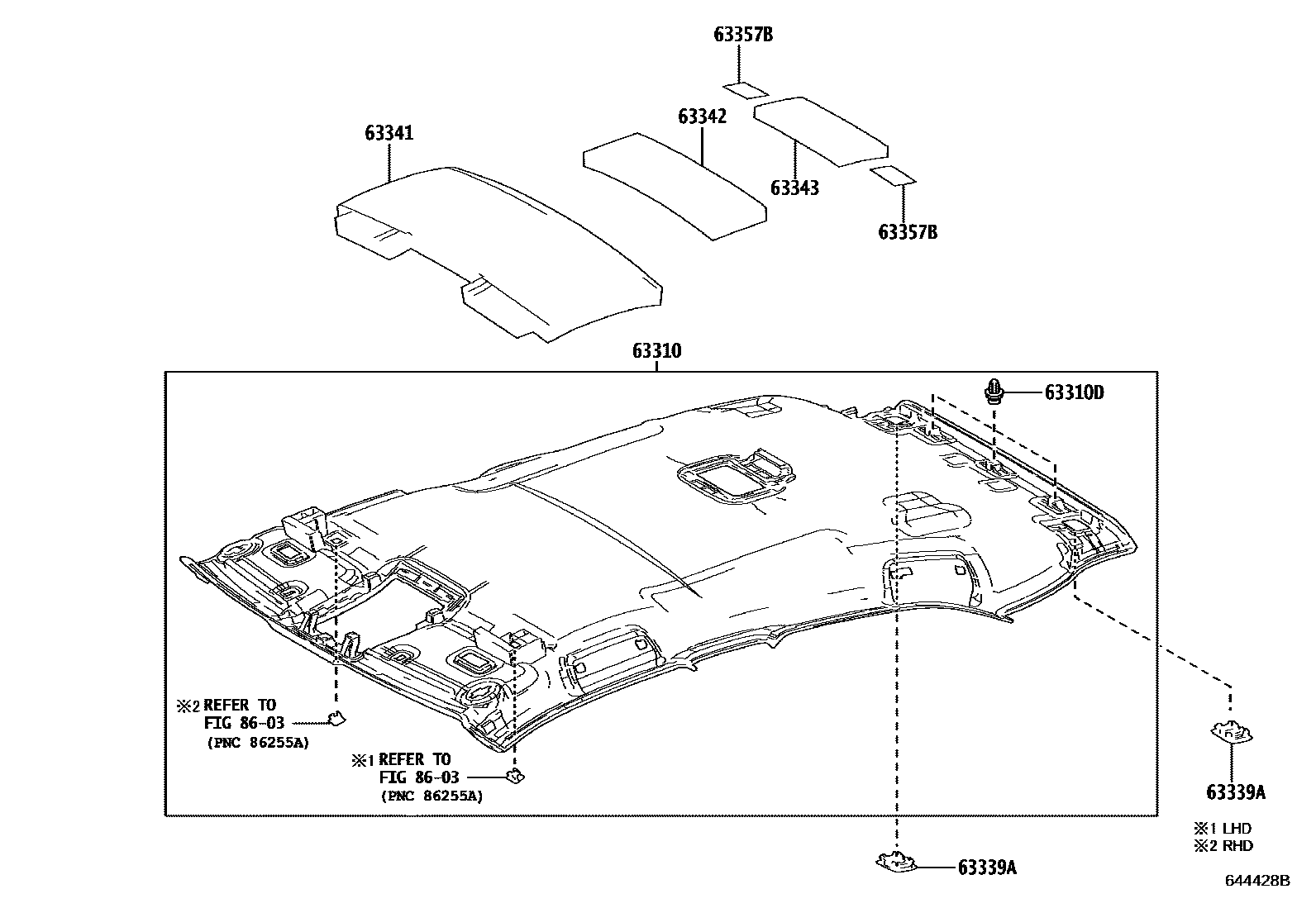

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
main63310-76090-A2supersedes 63310-76070-A2iMZAA10..LHD..EUR;MZAH1#..LHD..(CHI,EUR,GCC); MZAH10..LHD..GEN;MZAA10,MZAH15..LHD..(GCC,GEN)201810-202207
MOON ROOF-WITH,LWHITE,TRIM00,02,11,4#,8#; MOON ROOF-WITH,LWHITE,TRIM00,11,4#,8#
MOON ROOF-WITH,BLACK,TRIM01,10,2#,3#
MOON ROOF-WITH,LWHITE,TRIM00,02,4#,8#
main63310-76100-C2supersedes 63310-76080-C2iMZAA10..ARL;MZAH1#..RHD..(ARL,GEN); MZAH1#..RHD..EUR;MZAA10..RHD..(EUR,GEN)201810-202207
MOON ROOF-WITH,BLACK,TRIM01,1#,2#,3#; MOON ROOF-WITH,BLACK,TRIM01,10,2#,3#
63310DCLIP, ROOF HEADLINING
63339ACOVER, ROOF HEADLINING SERVICE HOLE
main63339-76010-A0×2iMZAA10,MZAH10..ARL;MZAH15..RHD..(ARL,GEN); MZAA10..GCC,GEN;MZAH1#..LHD..GEN; MZAH10..CHI,EUR,GCC;MZAA10,MZAH15..CHI,EUR201810-202207
WHITE,TRIM00,02,11,4#,8#; WHITE,TRIM00,11,4#,8#; WHITE,TRIM00,4#,8#
main63339-76010-C0×2iMZAA10..ARL;MZAH1#..RHD..(ARL,GEN); MZAH1#..LHD..GEN;MZAH1#..CHI,EUR,GCC;MZAA10..CHI,EUR,GCC,GEN201810-202207
BLACK,TRIM01,1#,2#,3#; BLACK,TRIM01,10,2#,3#
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63357BSILENCER, ROOF
MOON ROOF-WITH
MOON ROOF-WITH
8603NAVIGATION & FRONT MONITOR DISPLAY
8 parts on this diagram · 2 diagrams in section
