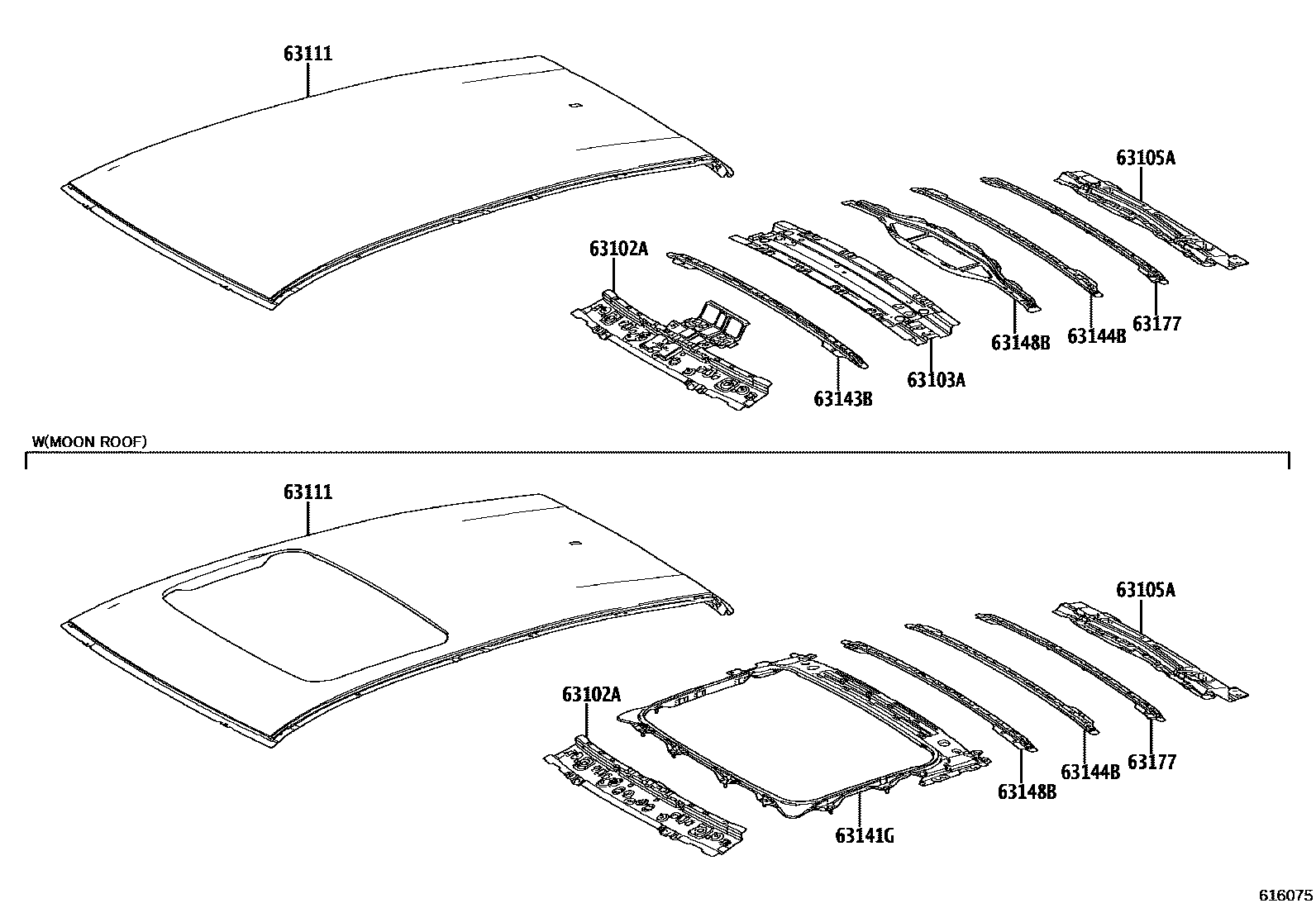

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-76903201810-202207

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-76020201810-202207

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-76020201810-202207

63111PANEL, ROOF

main63111-76030201810-202207

main63111-76040201810-202207

main63111-76050201910-202207

main63111-76060201810-202207

63141GREINFORCEMENT, ROOF PANEL, NO.1

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-76020201810-202207

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-76020201810-202207

63148BREINFORCEMENT, ROOF PANEL SIDE

main63148-76020201810-202207

63177REINFORCEMENT, ROOF PANEL, NO.9

main63177-76010201810-202207

9 parts on this diagram · 3 diagrams in section
