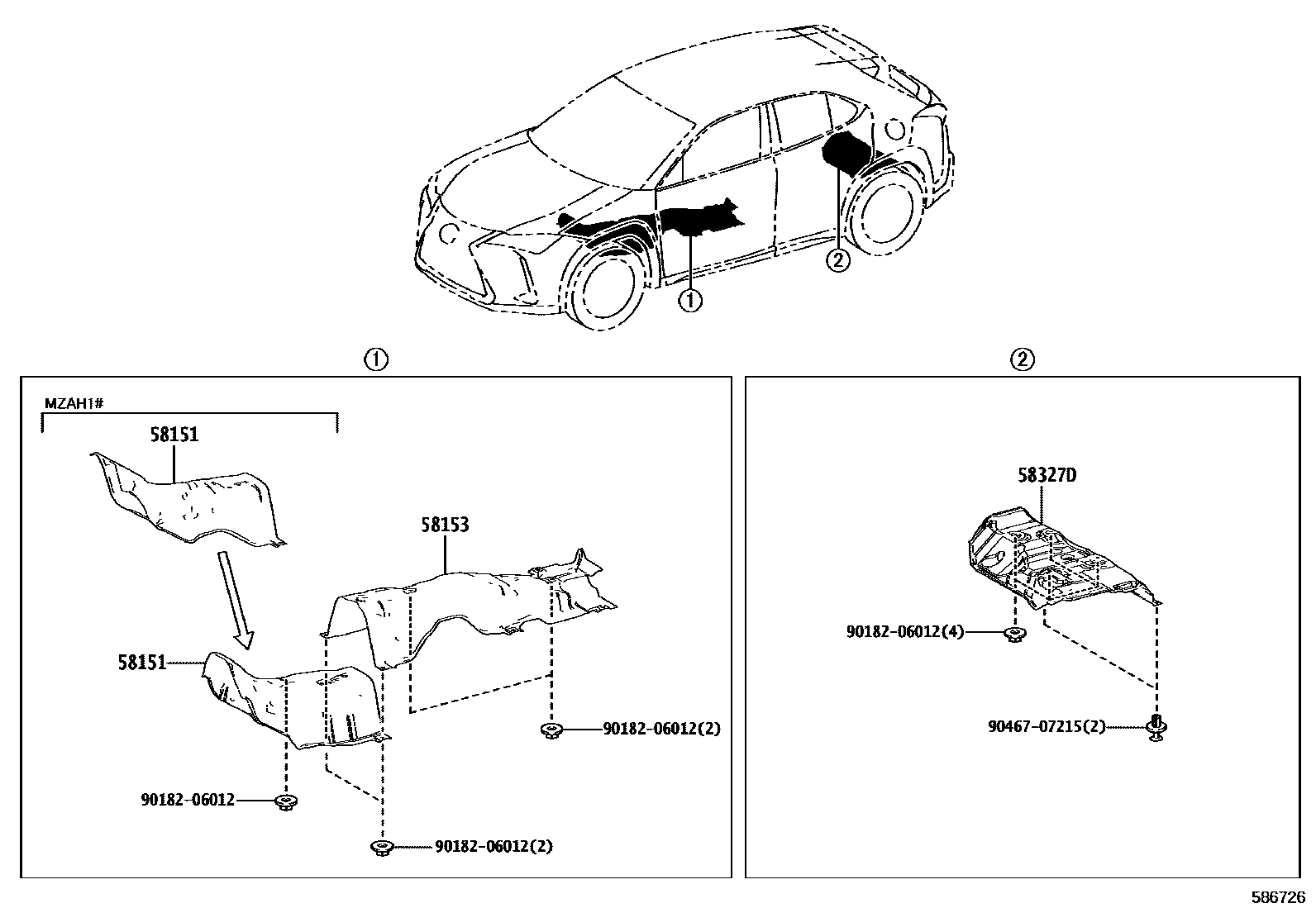

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-12410iMZAA10201810-202207

main58151-76020iMZAH1#201811-202207

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-12230iMZAA10,MZAH1#201810-202105

main58153-12231iMZAA10,MZAH1#202106-202207

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-76020iMZAA10,MZAH1#201810-202207

9018206012

main90182-06012

9046707215

main90467-07215

5 parts on this diagram · 1 diagram in section
