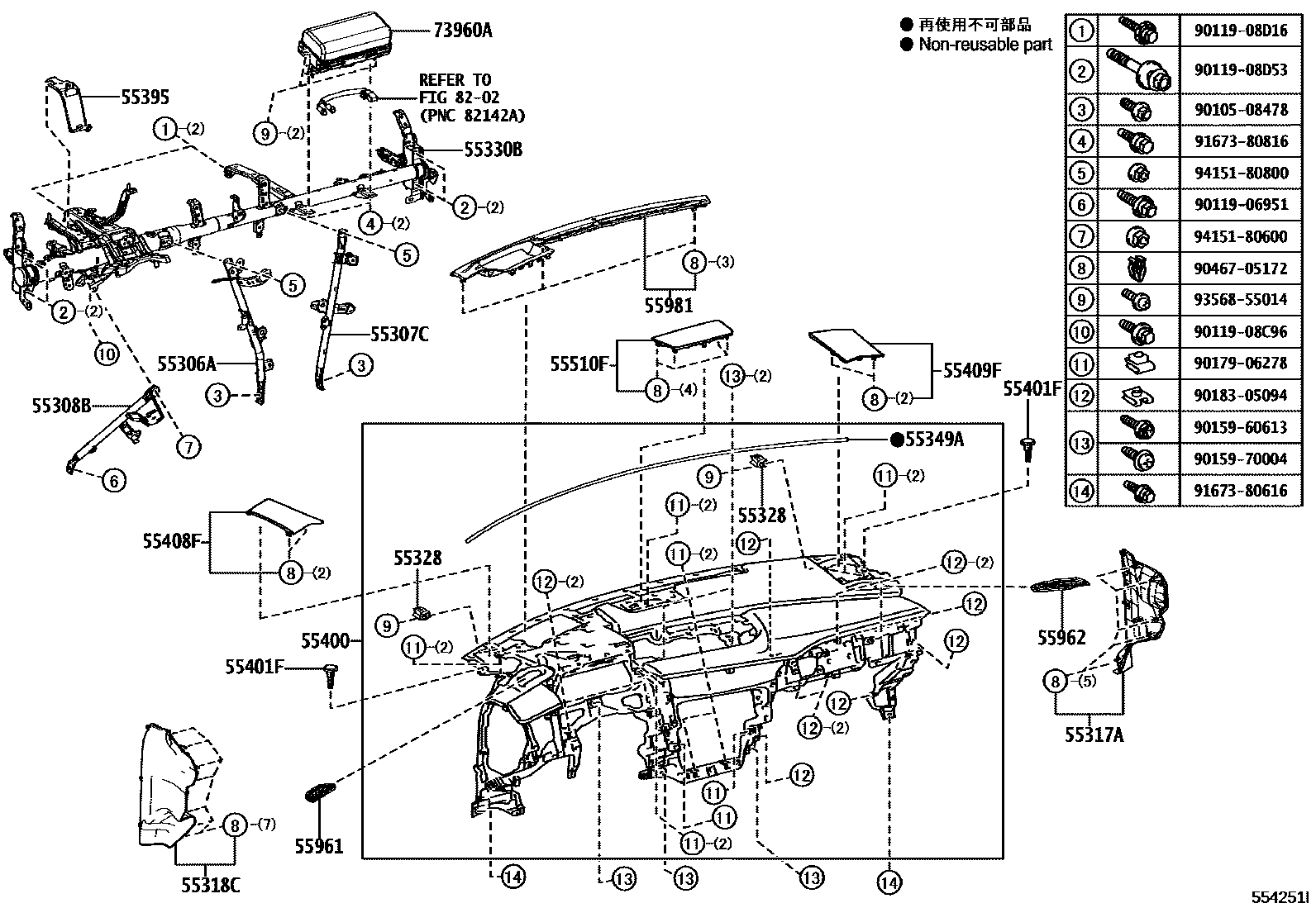

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-76040iMZAA10,MZAH1#..LHD201810-202207

main55306-76050iMZAA10,MZAH1#..RHD201810-202207

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-76030iMZAA10,MZAH1#..LHD201810-202207

main55307-76040iMZAA10,MZAH1#..RHD201810-202207

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-76010iMZAA10,MZAH1#..LHD201810-202207

main55308-76020iMZAA10,MZAH1#..RHD201810-202207

55317APANEL, INSTRUMENT SIDE, RH

main55317-76080-C0iMZAA10,MZAH1#..RHD201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55318-76070-C0iMZAA10,MZAH1#..LHD..(CHI,GCC,GEN)201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55318-76080-C0iMZAA10,MZAH1#..LHD..EUR201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-76070-C0iMZAA10,MZAH1#..LHD201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55318-76090-C0iMZAA10,MZAH1#..RHD..(ARL,GEN)201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55318-76100-C0iMZAA10,MZAH1#..RHD..EUR201901-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-76090×2iMZAA10,MZAH1#201810-202207

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-76040iMZAA10,MZAH1#..LHD201810-202207

main55330-76060iMZAH1#..LHD;MZAA10..LHD..(EUR,GCC,GEN)201810-202207

HEAD-UP DISPLAY-WITH

main55330-76070supersedes 55330-76050iMZAA10,MZAH1#..RHD201810-202207

HEAD-UP DISPLAY-WITH

55349ACUSHION, INSTRUMENT PANEL

main55349-76030iMZAA10,MZAH1#201810-202207

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12020iMZAA10,MZAH1#..LHD201810-202207

main55395-12040iMZAA10,MZAH1#..RHD201810-202207

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-76030-29iMZAA10,MZAH1#..LHD201810-202207

BLACK/BLACK/RED,TRIM21,3#

main55400-76030-40iMZAA10,MZAH1#..LHD..EUR201810-202207

BLACK/BLACK/LT.GRAY,TRIM01,10,20

main55400-76030-E0iMZAH1#..LHD;MZAA10..LHD..(EUR,GCC,GEN)201810-202207

NOBLEBROWN/BLACK/ME.WHITE,TRIM00,11

main55400-76040-27iMZAA10,MZAH1#..RHD201810-202207

BLACK/BLACK/RED,TRIM21,3#

main55400-76040-28iMZAA10..RHD..(EUR,GEN)201810-202207

BLACK/BLACK/LT.GRAY,TRIM01,10,20

main55400-76040-42iMZAH15..ARL;MZAA10..RHD..GEN202108-202207

BLACK/BLACK/BLUE,TRIM25

main55400-76040-E0iMZAH1#..RHD..EUR;MZAA10..RHD..(EUR,GEN)201810-202207

NOBLEBROWN/BLACK/ME.WHITE,TRIM00

main55400-76010-21iMZAA10,MZAH1#..LHD..EUR201810-202207

INSTRUMENT PANEL-WASHI TYPE,BLACK/BLACK/LT.GRAY,TRIM10,20,24

main55400-76010-22supersedes 55400-76030-41iMZAA10,MZAH10..GCC201810-202207

INSTRUMENT PANEL-WASHI TYPE,BLACK/BLACK/ROYAL BROWN,TRIM4#

main55400-76010-24supersedes 55400-76030-43iMZAA10,MZAH1#..LHD..EUR202108-202207

INSTRUMENT PANEL-WASHI TYPE,BLACK/BLACK/IVORY,TRIM26

main55400-76010-E0iMZAH10..LHD..(CHI,EUR,GCC);MZAA10,MZAH15..LHD..(CHI,EUR)201810-202207

INSTRUMENT PANEL-WASHI TYPE,NOBLEBROWN/BLACK/ML.WHITE,TRIM0#,11

main55400-76010-E1supersedes 55400-76030-E1iMZAA10,MZAH10..GCC201810-202207

INSTRUMENT PANEL-WASHI TYPE,OCHER/BLACK/ROYAL BROWN,TRIM40

main55400-76010-J1supersedes 55400-76030-J1iMZAH10..CHI,GCC;MZAA10,MZAH15..CHI201811-202207

INSTRUMENT PANEL-WASHI TYPE,BLUE/BLACK/LT.GRAY,TRIM8#

main55400-76020-20iMZAH1#..RHD..EUR201901-202207

INSTRUMENT PANEL-WASHI TYPE,BLACK/BLACK/LT.GRAY,TRIM10,20,24

main55400-76020-21supersedes 55400-76040-29iMZAA10,MZAH1#..RHD201810-202207

INSTRUMENT PANEL-WASHI TYPE,BLACK/BLACK/ROYAL BROWN,TRIM4#

main55400-76020-23supersedes 55400-76040-41iMZAH1#..RHD..EUR202108-202207

INSTRUMENT PANEL-WASHI TYPE,BLACK/BLACK/IVORY,TRIM26

main55400-76020-E0iMZAA10,MZAH10..ARL;MZAH15..RHD..(ARL,GEN)201810-202207

INSTRUMENT PANEL-WASHI TYPE,NOBLEBROWN/BLACK/ME.WHITE,TRIM0#

main55400-76020-J1supersedes 55400-76040-J1iMZAA10..ARL;MZAH1#..RHD..(ARL,EUR)201810-202207

INSTRUMENT PANEL-WASHI TYPE,BLUE/BLACK/LT.GRAY,TRIM23,8#

55401FCLIP(FOR SAFETY PAD)

main52161-16010×2iMZAA10,MZAH1#201810-202207

sub52161-0K040

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-76040-C0iMZAA10,MZAH1#..LHD201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55408-76050-C0iMZAA10,MZAH1#..LHD..(CHI,EUR,GCC)201810-202207

AUDIO-*DA & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#

main55408-76070-C0supersedes 55408-76060-C0iMZAA10,MZAH1#..RHD201810-202207

AUDIO-EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-76050-C0iMZAA10,MZAH1#..LHD201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55409-76060-C0iMZAA10,MZAH1#..LHD..(CHI,EUR,GCC)201810-202207

AUDIO-*DA & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#

main55409-76080-C0supersedes 55409-76070-C0iMZAA10,MZAH1#..RHD201810-202207

AUDIO-EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-76060-C0supersedes 55510-76050-C0iMZAA10,MZAH1#..ARL201810-202207

AUDIO-EMV & 8SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#

main55510-76070-C0iMZAA10,MZAH1#..CHI,EUR,GCC201810-202207

AUDIO-*DA & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-76010-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-76010-C0iMZAA10,MZAH1#201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-76050-C0iMZAA10,MZAH1#..LHD201810-202207

BLACK,TRIM0#,1#,2#,3#,4#,8#

main55981-76060-C0iMZAH1#..LHD;MZAA10..LHD..(EUR,GCC,GEN)201810-202207

HEAD-UP DISPLAY-WITH,BLACK,TRIM0#,1#,2#,3#,4#,8#

main55981-76080-C0supersedes 55981-76070-C0iMZAA10,MZAH1#..RHD201810-202207

HEAD-UP DISPLAY-WITH,BLACK,TRIM0#,1#,2#,3#,4#,8#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-76030iMZAA10,MZAH1#201810-202207

8202

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9011908D53

main90119-08D53

9015960613

main90159-60613

9015970004

main90159-70004

9017906278

main90179-06278

9018305094

main90183-05094

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

34 parts on this diagram · 8 diagrams in section
