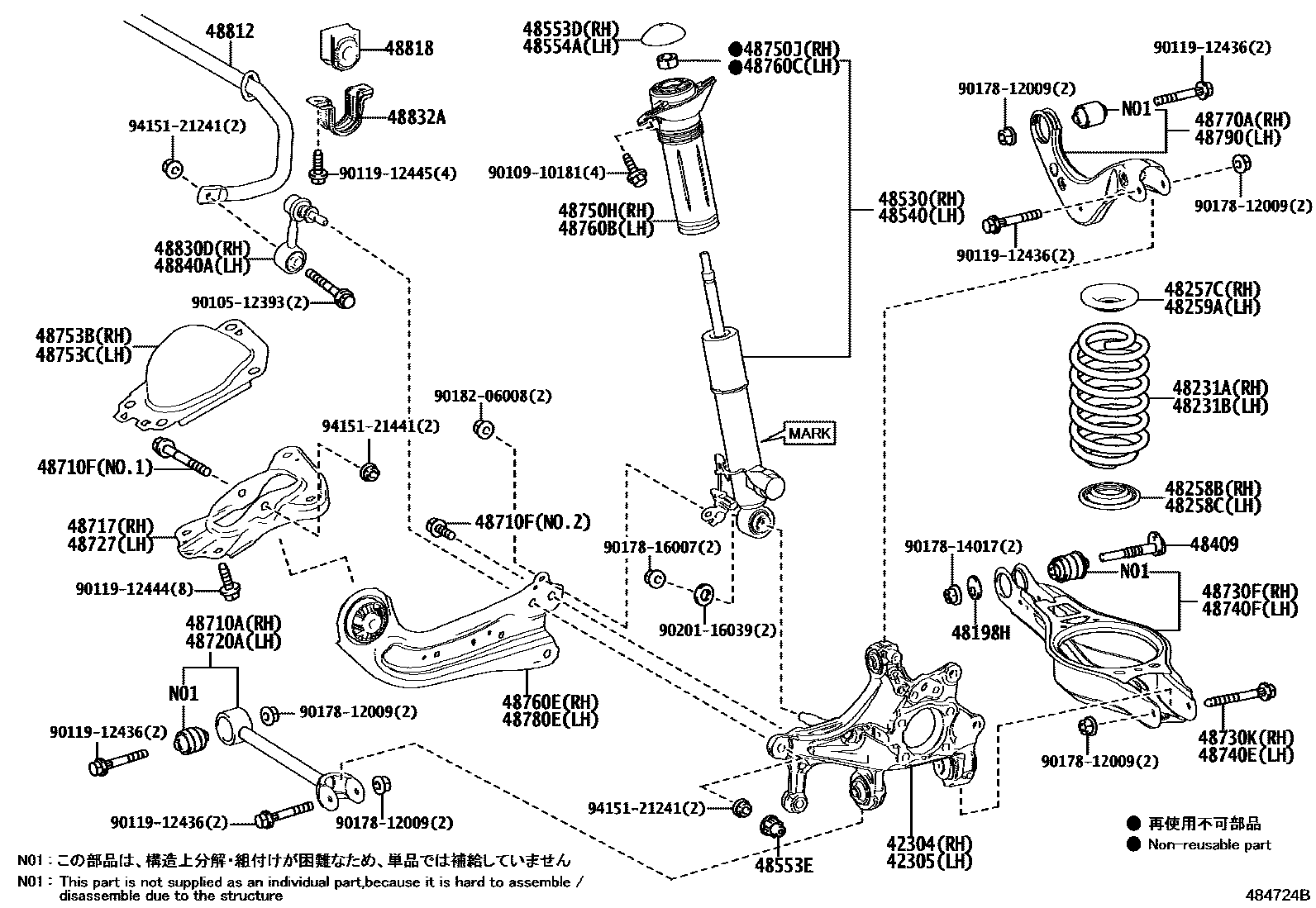

REAR SPRING & SHOCK ABSORBER

0001 1W(AVS) 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-76030iMZAA10,MZAH10201810-202207

main42304-76040iMZAH15201811-202207

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-76030iMZAA10,MZAH10201810-202207

main42305-76040iMZAH15201811-202207

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010×2iMZAA10,MZAH1#201810-202207

48231ASPRING, COIL, REAR RH

main48231-76120iMZAA10201810-202207

main48231-76090supersedes 48231-76080iMZAH10201811-202207

F SPORT

main48231-76110supersedes 48231-76100iMZAH15201811-202207

F SPORT

48231BSPRING, COIL, REAR LH

main48231-76120iMZAA10201810-202207

main48231-76090supersedes 48231-76080iMZAH10201811-202207

F SPORT

main48231-76110supersedes 48231-76100iMZAH15201811-202207

F SPORT

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-47020iMZAA10,MZAH1#201810-202207

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-47010iMZAA10,MZAH1#201810-202207

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-47010iMZAA10,MZAH1#201810-202207

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-47020iMZAA10,MZAH1#201810-202207

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011×2iMZAA10,MZAH1#201810-202207

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-79295iMZAA10201810-202207

MARK 48530-76170

main48530-79305iMZAH10201811-202207

MARK 48530-76180

main48530-79315iMZAH15201811-202207

MARK 48530-76190

main48530-79325iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

MARK 48530-76160,AVS-WITH

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-79295iMZAA10201810-202207

MARK 48530-76170

main48530-79305iMZAH10201811-202207

MARK 48530-76180

main48530-79315iMZAH15201811-202207

MARK 48530-76190

main48540-79005iMZAH1#;MZAA10..ARL,EUR,GCC,GEN201810-202207

MARK 48540-76160,AVS-WITH

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-47010iMZAA10,MZAH1#201810-202207

48553ECAP

main48553-52030×2iMZAA10,MZAH1#201810-202207

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-47010iMZAA10,MZAH1#201810-202207

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-47010iMZAA10201810-202207

main48710-76010iMZAH1#201811-202207

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195×2iMZAA10,MZAH1#201810-202207

NO.1:REFER ILLUST.

main90105-14197×4iMZAA10,MZAH1#201810-202207

NO.2:REFER ILLUST.

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-10010iMZAA10,MZAH1#201810-202207

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-47010iMZAA10201810-202207

main48710-76010iMZAH1#201811-202207

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-10010iMZAA10,MZAH1#201810-202207

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-47010iMZAA10,MZAH1#201810-202207

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iMZAA10,MZAH1#201810-202207

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iMZAA10,MZAH1#201810-202207

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-47010iMZAA10,MZAH1#201810-202207

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-76010supersedes 48750-12050iMZAA10,MZAH1#201811-202207

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iMZAA10,MZAH1#201810-202207

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-10010iMZAA10,MZAH1#201810-202207

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-10020iMZAA10,MZAH1#201810-202207

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-76010supersedes 48750-12050iMZAA10,MZAH1#201811-202207

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iMZAA10,MZAH1#201810-202207

48760EARM ASSY, TRAILING, REAR RH

main48760-33180iMZAH1#201811-202207

main48760-76010iMZAA10201810-202207

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-76010iMZAA10,MZAH1#201810-202207

48780EARM ASSY, TRAILING, REAR LH

main48780-33100iMZAH1#201811-202207

main48780-76010iMZAA10201810-202207

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-76010iMZAA10,MZAH1#201810-202207

48812BAR, STABILIZER, REAR

main48812-10060supersedes 48812-76030iMZAA10,MZAH10201810-202108

F SPORT

main48812-10061iMZAA10,MZAH10202109-202207

F SPORT

main48812-76040supersedes 48812-76061iMZAH15201811-202207

F SPORT

48818BUSH, STABILIZER, REAR

main48818-10010×2supersedes 48818-76030iMZAA10,MZAH10201810-202207

F SPORT

main48818-76040×2supersedes 48818-47020iMZAH15201811-202108

F SPORT

main48818-76041×2supersedes 48818-47020iMZAH15202109-202207

F SPORT

48830DLINK ASSY, REAR STABILIZER, RH

main48830-47010iMZAA10,MZAH1#201810-202207

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-47010×2iMZAA10,MZAH10201810-202207

main48832-47020×2iMZAH15201811-202207

48840ALINK ASSY, REAR STABILIZER, LH

main48830-47010iMZAA10,MZAH1#201810-202207

9010512393

main90105-12393

9010910181

main90109-10181

9011912436

main90119-12436

9011912444

main90119-12444

9011912445

main90119-12445

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

9018206008

main90182-06008

9020116039

main90201-16039

9415121241

main94151-21241

9415121441

main94151-21441
