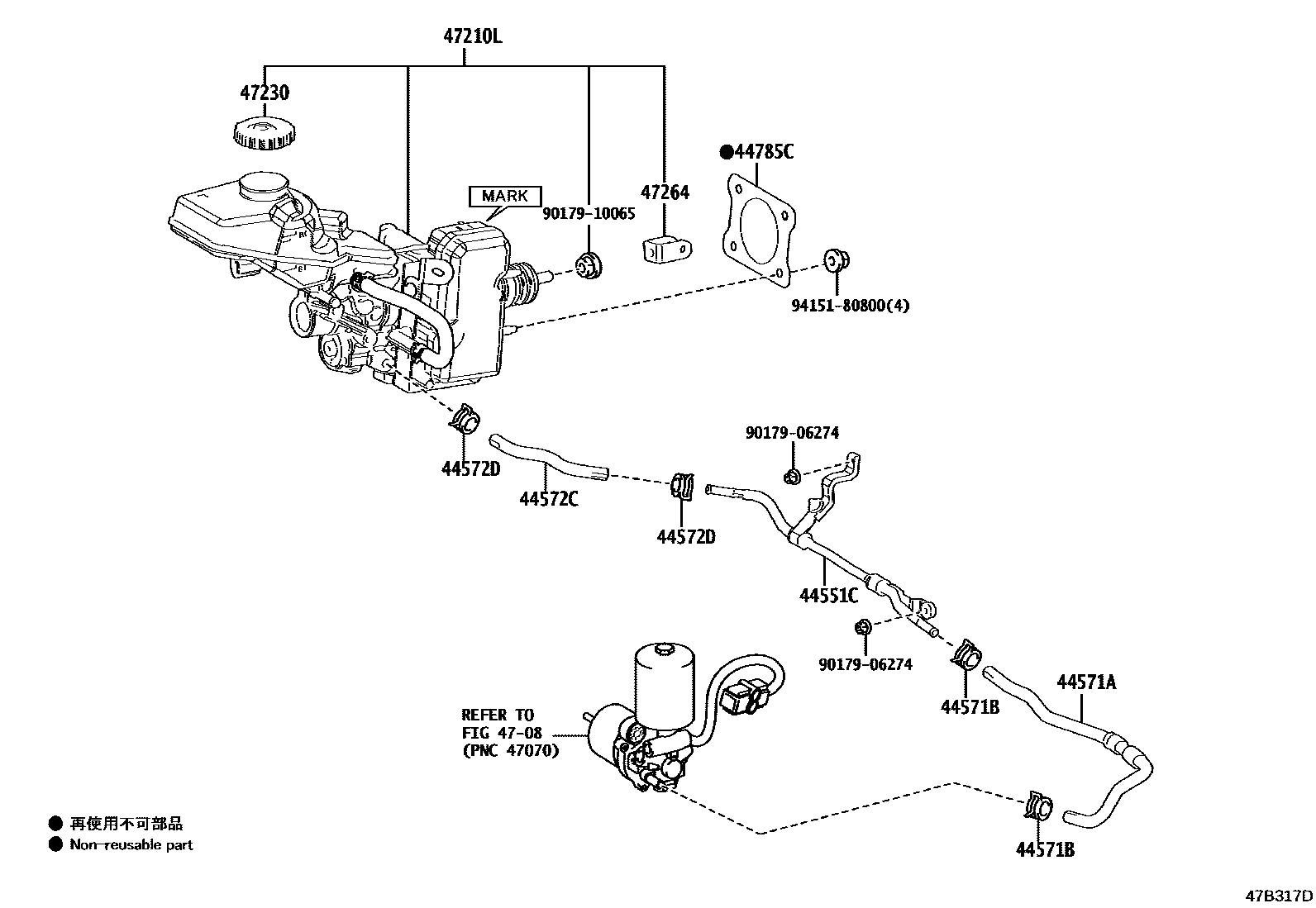

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-47050iMZAH1#..LHD201811-202207

main44551-47060iMZAH1#..RHD201811-202207

44571AHOSE, BRAKE ACTUATOR, NO.1

main44571-47080iMZAH1#..RHD201811-202207

main44571-76020iMZAH1#..LHD201811-202207

44571BCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)

main96137-41501×2iMZAH1#201811-202207

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-47050iMZAH1#..LHD201811-202207

main44572-47060iMZAH1#..RHD201811-202207

44572DCLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)

main96137-41501×2iMZAH1#201811-202207

44785CGASKET, BRAKE BOOSTER

main44785-12040iMZAH1#201811-202207

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-76250supersedes 47050-76270iMZAH1#..LHD..EUR201811-202010

ISRAEL SPEC,MARK=47210-76230

main47050-76280iMZAH1#..RHD..(ARL,GEN)201811-202010

MARK=47210-76220

main47050-76290iMZAH1#..RHD..EUR201901-202010

MARK=47210-76220

main47050-76490supersedes 47050-76510iMZAH1#..LHD..(GCC,GEN)202010-202207

MARK=47210-76231

main47050-76520iMZAH1#..RHD..(ARL,GEN)202010-202207

MARK=47210-76221

main47050-76530iMZAH1#..RHD..EUR202010-202207

MARK=47210-76221

main47050-76540iMZAH1#..CHI202010-202207

MARK=47210-76241

main47050-76300iMZAH1#..CHI201812-202010

CHINA ADVANCED CITY SPEC,MARK=47210-76240

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33072iMZAA10201810-202207

main47230-33330iMZAH1#202002-202006

main47230-47090iMZAH1#201811-202002

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-47010iMZAH1#201811-202207

9017906274

main90179-06274

9017910065

main90179-10065

9415180800

main94151-80800

13 parts on this diagram · 4 diagrams in section
