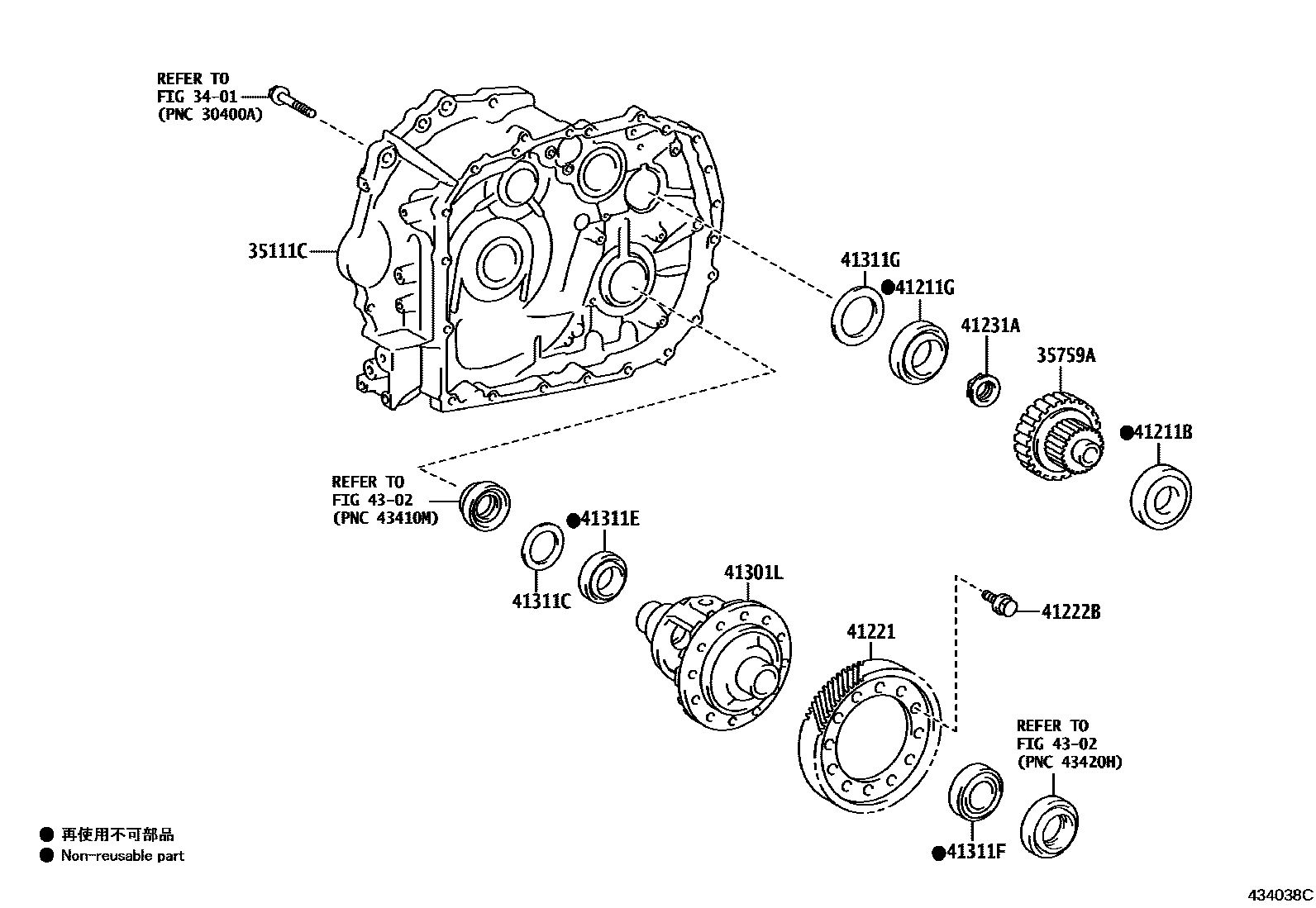

FRONT AXLE HOUSING & DIFFERENTIAL
3401
35111CHOUSING, TRANSAXLE
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
35759AGEAR, REDUCTION DRIVEN
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
TOYOTA:REFER 34-01
41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)
TOYOTA:REFER 34-01
41221GEAR, FRONT DIFFERENTIAL RING
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
TOYOTA:REFER 34-01
41231ANUT, DRIVE PINION LOCK
TOYOTA:REFER 34-01
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
TOYOTA:REFER 34-01
AISIN AW:REFER 34-01
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=1.76,MARK A,TOYOTA:REFER 34-01
T=1.79,MARK B,AISIN AW:REFER 34-01
T=1.82,MARK C,TOYOTA:REFER 34-01
T=1.85,MARK D,AISIN AW:REFER 34-01
T=1.88,MARK E,TOYOTA:REFER 34-01
T=1.91,MARK F,TOYOTA:REFER 34-01
T=1.94,MARK G,AISIN AW:REFER 34-01
T=1.97,MARK H,AISIN AW:REFER 34-01
T=2.00,MARK J,TOYOTA:REFER 34-01
T=2.03,MARK K,AISIN AW:REFER 34-01
T=2.06,MARK L,TOYOTA:REFER 34-01
T=2.09,MARK M,TOYOTA:REFER 34-01
T=2.12,MARK N,AISIN AW:REFER 34-01
T=2.15,MARK P,AISIN AW:REFER 34-01
T=2.18,MARK Q,AISIN AW:REFER 34-01
T=2.21,MARK R,AISIN AW:REFER 34-01
T=2.24,MARK S,AISIN AW:REFER 34-01
T=2.27,MARK T,AISIN AW:REFER 34-01
T=2.30,MARK U,TOYOTA:REFER 34-01
T=2.33,MARK V,TOYOTA:REFER 34-01
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
TOYOTA:REFER 34-01
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
TOYOTA:REFER 34-01
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.59, MARK A,AISIN AW:REFER 34-01
T=1.62, MARK B,TOYOTA:REFER 34-01
T=1.65, MARK C,TOYOTA:REFER 34-01
T=1.68, MARK D,AISIN AW:REFER 34-01
T=1.71, MARK E,AISIN AW:REFER 34-01
T=1.74, MARK F,AISIN AW:REFER 34-01
T=1.77, MARK G,AISIN AW:REFER 34-01
T=1.80, MARK H,TOYOTA:REFER 34-01
T=1.83, MARK J,TOYOTA:REFER 34-01
T=1.86, MARK K,TOYOTA:REFER 34-01
T=1.89, MARK L,TOYOTA:REFER 34-01
T=1.92, MARK M,AISIN AW:REFER 34-01
T=1.95, MARK N,AISIN AW:REFER 34-01
T=1.98, MARK P,TOYOTA:REFER 34-01
T=2.01, MARK Q,TOYOTA:REFER 34-01
T=2.04, MARK R,AISIN AW:REFER 34-01
T=2.07, MARK S,TOYOTA:REFER 34-01
T=2.10, MARK T,TOYOTA:REFER 34-01
T=2.13, MARK U,AISIN AW:REFER 34-01
T=2.16, MARK V,TOYOTA:REFER 34-01
T=2.19, MARK W,AISIN AW:REFER 34-01
T=2.22, MARK X,TOYOTA:REFER 34-01
T=2.25, MARK Y,TOYOTA:REFER 34-01
4302
14 parts on this diagram · 1 diagram in section
