1104CYLINDER HEAD

1708VACUUM PIPING

→ Go to FIG 17-08

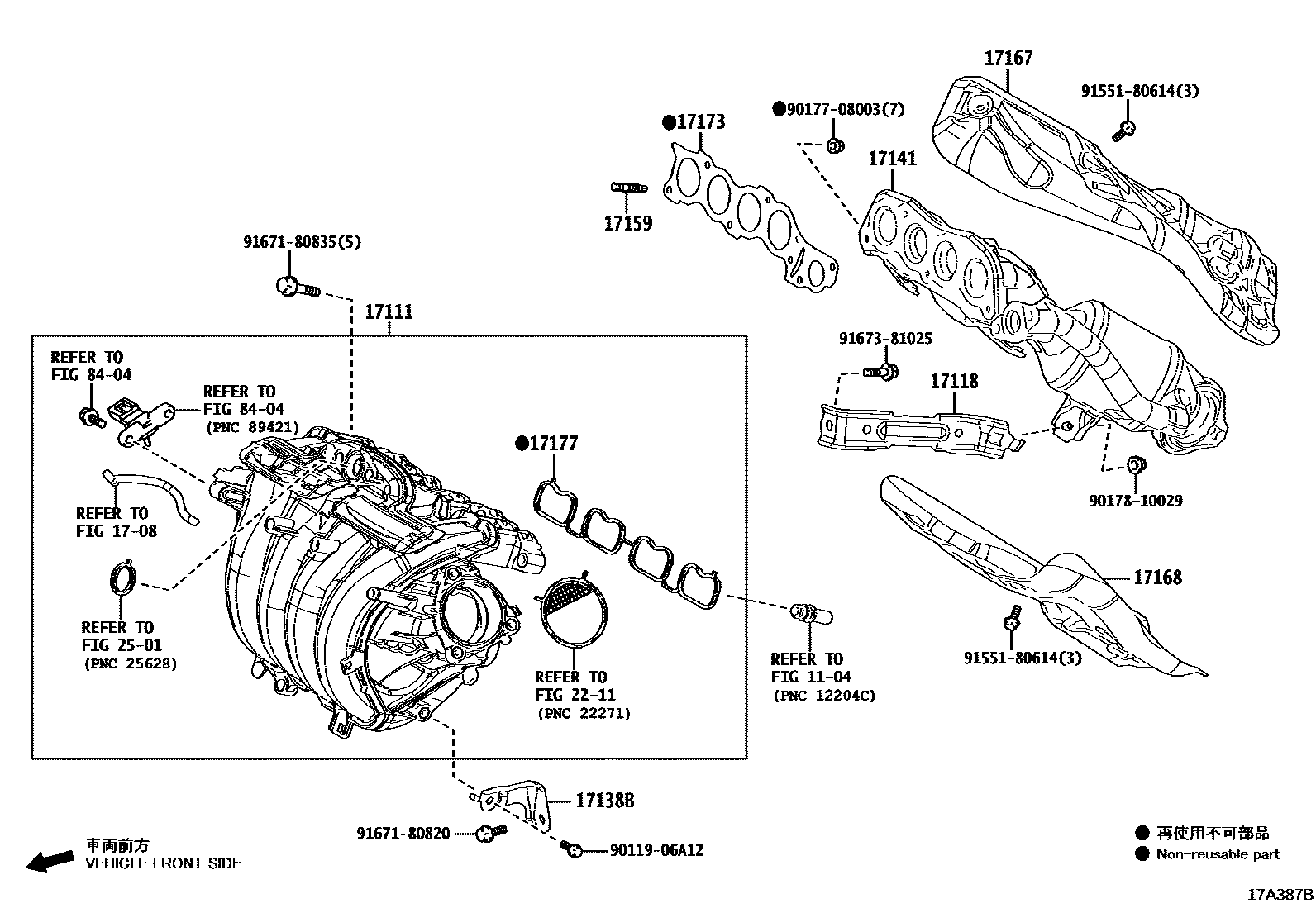

17111MANIFOLD, INTAKE

main17120-24010i201810-202207

main17120-24020i201811-202207

17118STAY, MANIFOLD

main17118-24010i201810-202207

17138BSTAY, INTAKE MANIFOLD

main17138-24010i201810-202207

main17138-24020i201811-202207

17141MANIFOLD, EXHAUST

main17141-24070i201811-202207

*114=*688; *114=*688,AZERBAIJAN, ARMENIA, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 6; *114=*688,KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6; *114=*688,MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 6; *114=*688,RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6; *114=*688,UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24100i201812-202207

main17141-24120i201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 6; KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6; RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6; UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17141-24150i201810-202207

main17141-24170i201811-202207

*114=*588

main17141-24280i202108-202207

BRAZIL SPEC

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×7i201810-202207

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24030i201810-202207

AZERBAIJAN, ARMENIA, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 6; KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO 6; RUSSIA SPEC&EXHAUST EMISSION CONTROL-EURO 6; UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO 6

main17167-24060i201810-202207

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-24030i201810-201905

main17168-F2050i201905-202207

(L)

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010i201810-202207

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020i201810-202207

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM
