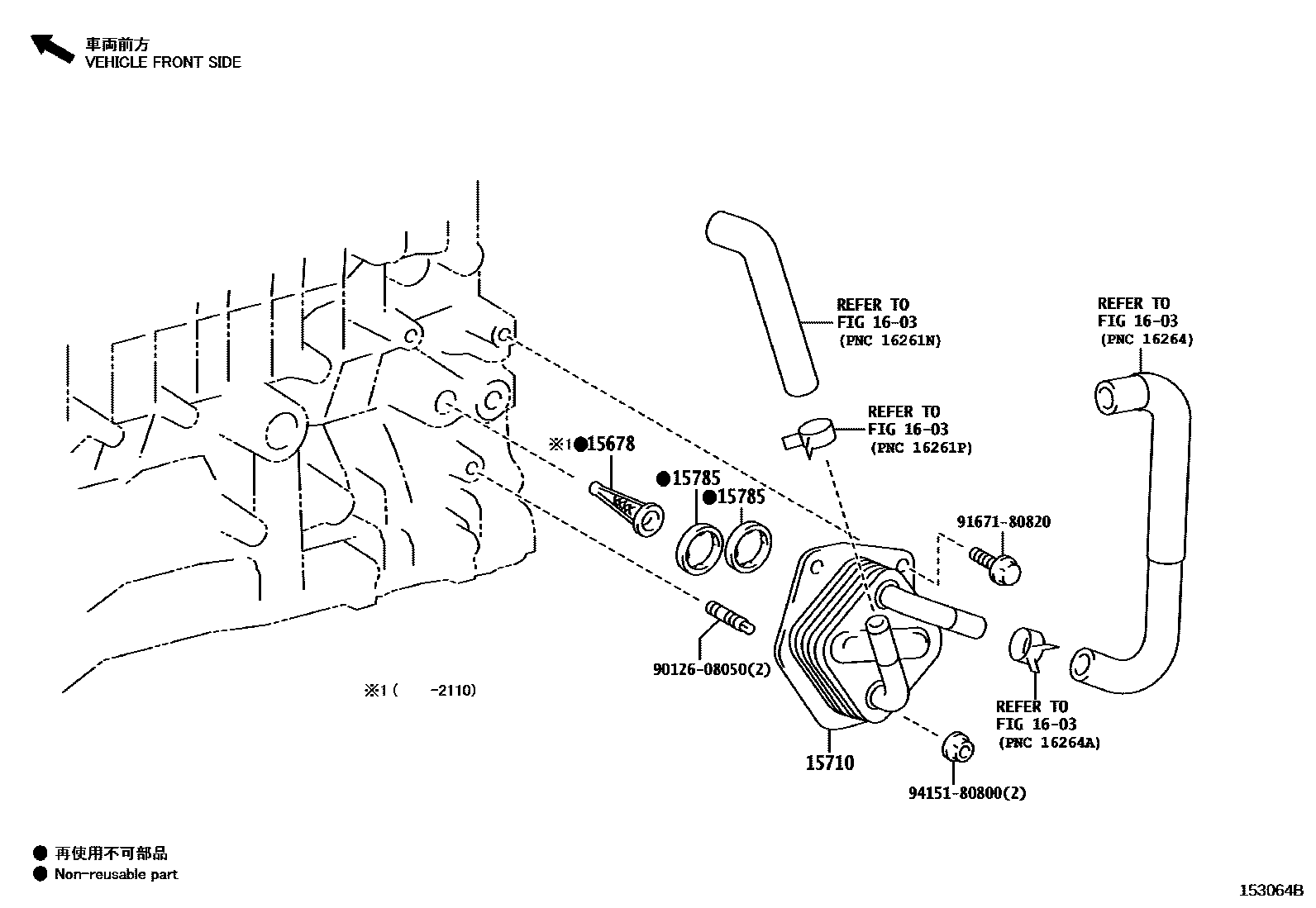

ENGINE OIL COOLER
15678FILTER, OIL CONTROL VALVE
main15678-25010iM20#..MZAA10,MZAH1#..ARL,CHI,EUR,GCC; M20AFKS..MZAA10..LHD..GEN; M20AFKS..MZAA10..RHD..GEN201810-202110
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 5; DOMINICA, PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5; INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 5; MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 5; PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5; SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 5
15710COOLER ASSY, OIL
main15710-24010iM20#..MZAA10,MZAH1#..ARL,CHI,EUR,GCC; M20AFKS..MZAA10..LHD..GEN; M20AFKS..MZAA10..RHD..GEN201810-202207
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 5; DOMINICA, PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5; INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 5; MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 5; PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5; SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 5
15785GASKET, OIL COOLER
main15785-25010×2iM20#..MZAA10,MZAH1#..ARL,CHI,EUR,GCC; M20AFKS..MZAA10..LHD..GEN; M20AFKS..MZAA10..RHD..GEN201810-202207
BRUNEI SPEC&EXHAUST EMISSION CONTROL-EURO 5; DOMINICA, PERU SPEC&EXHAUST EMISSION CONTROL-EURO 5; INDONESIA SPEC&EXHAUST EMISSION CONTROL-EURO 5; MALAYSIA SPEC&EXHAUST EMISSION CONTROL-EURO 5; PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-EURO 5; SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-EURO 5
1603RADIATOR & WATER OUTLET
9012608050
main90126-08050
9167180820
main91671-80820
9415180800
main94151-80800
7 parts on this diagram · 1 diagram in section
