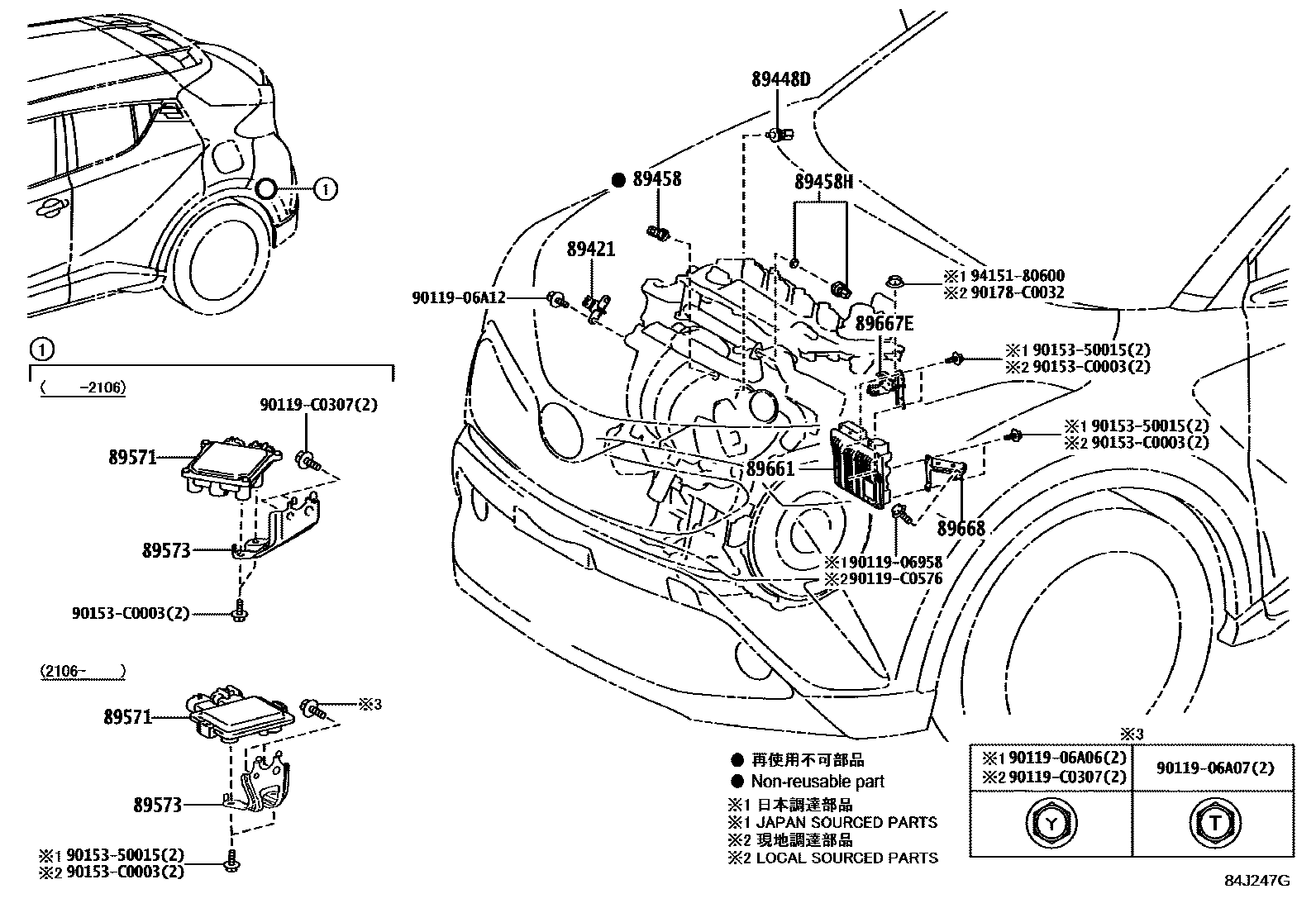

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMAXA10..D,G,N201808-202106

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-0R010iMAXH10;MAXA10..D,G,N202403

(L)

main89448-33010iMAXA10..D,G,N201808-202106

89458SENSOR, FUEL PRESSURE

main89458-0R010iMAXH10;MAXA10..D,G,N202403

(L)

main89458-33030iMAXA10..E201808

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-0R020iMAXH10;MAXA10..D,G,N202403

(L)

main89458-33041iMAXA10..D,G,N201808-202106

main89458-33042iMAXH10;MAXA10..D,G,N202207-202403

89571COMPUTER, FUEL PUMP CONTROL

main89571-10010iMAXH10;MAXA10..D,G,N202106-202212

main89571-12010iMAXA10..E201808

main89571-48010iMAXH10;MAXA10..D,G,N202301-202403

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-F4020iMAXA10..D,G,N201808-202106

main89573-F4060iMAXH10;MAXA10..D,G,N202106

89661COMPUTER, ENGINE CONTROL

main89661-F4610iMAXH10202106-202303

DENSO

main89661-F4670iMAXH10202303

DENSO

main89661-F4220supersedes 89661-F4650iMAXA10..D,G,N201808-202106

DENSO,EXHAUST EMISSION CONTROL-CHINA 6B,WITH(ON BOARD DIAGNOSIS)

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-F4070iMAXA10..D,G,N201808-202106

main89667-F4090iMAXH10202106

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-10070iMAXA10201808-201905

main89668-F4090iMAXA10..D,G,N201906-202106

main89668-F4110iMAXH10202106

9011906958

main90119-06958

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9011906A12

main90119-06A12

90119C0307

main90119-C0307

90119C0576

main90119-C0576

9015350015

main90153-50015

90153C0003

main90153-C0003

90178C0032

main90178-C0032

9415180600

main94151-80600

19 parts on this diagram · 3 diagrams in section
