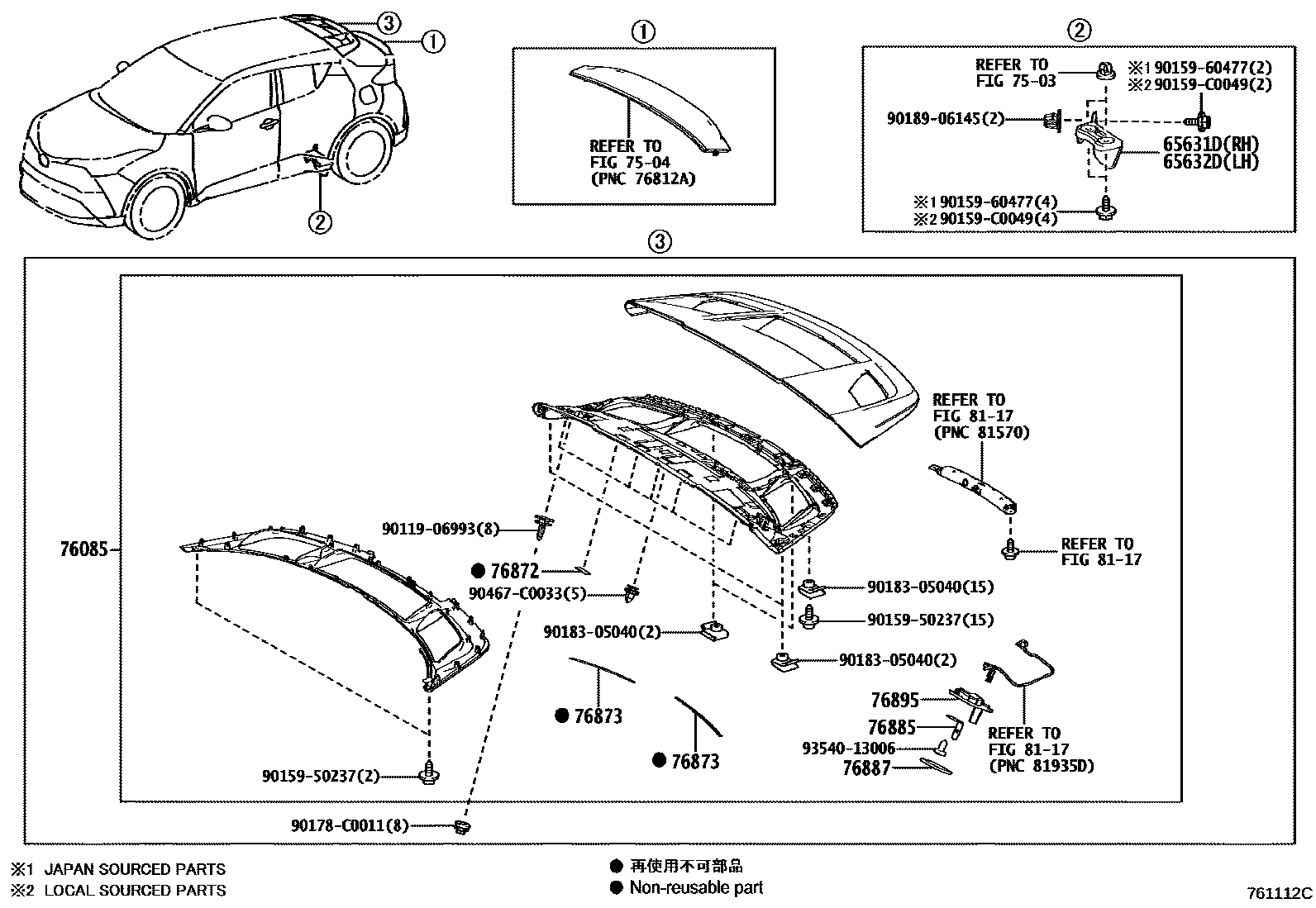

MUDGUARD & SPOILER

0001 1 0002 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-F4030iMAXH10;MAXA10..D,G,N201808-202106

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-F4030iMAXH10;MAXA10..D,G,N201808-202106

7503

7504

76085SPOILER SUB-ASSY, REAR

main76085-F4040-A0iMAXA10..D,G,N201808-202106

WHITE,2NJ ,2QH ,2QK

main76085-F4040-A1iMAXA10..D,G,N201808-202106

WHITE PEARL CS.,070

main76085-F4040-A2iMAXH10;MAXA10..D,G,N202106

PLATINUM WHITE PEARL MC.,089

main76085-F4040-B0iMAXH10;MAXA10..D,G,N202106

CELESTITE GRAY ME.,1K3

main76085-F4040-C0iMAXA10..E201808-202106

ATTITUDE BLACK MC.,218 ,2QJ ,2QL ,2QM

main76085-F4040-C1iMAXH10;MAXA10..D,G,N202106

BLACK MC.,209 ,2NU ,2PU ,2TL ,2UP ,2VA

main76085-F4040-D0iMAXH10;MAXA10..D,G,N201808-202106

RED M.M.,3R3

main76085-F4040-E0iMAXA10..D,G,N201903-202106

STEEL BLONDE ME.,4X1

main76085-F4040-E0iMAXH10;MAXA10..D,G,N202106

STEEL BLONDE ME.,2TG ,2VB ,4X1

main76085-F4040-F0iMAXH10;MAXA10..D,G,N202106

YELLOW,5A3

main76085-F4040-G0iMAXA10..E201808-202106

CITRUS M.M.,6W2

main76085-F4040-G1iMAXA10..E201808-202106

RADIANT GREEN ME.,6W9

76872PROTECTOR, REAR SPOILER, NO.1

main76872-F4040iMAXA10..D,G,N201808-202106

76873PROTECTOR, REAR SPOILER, NO.2

main76873-F4040iMAXA10..D,G,N201808-202106

76885RETAINER, REAR SPOILER, NO.5

main76885-F4040iMAXA10..D,G,N201808-202106

76887SEAL, REAR SPOILER

main76887-F4040iMAXA10..D,G,N201808-202106

76895PROTECTOR, REAR SPOILER, NO.5

main76895-F4040iMAXA10..D,G,N201808-202106

8117

9011906993

main90119-06993

9015950237

main90159-50237

9015960477

main90159-60477

90159C0049

main90159-C0049

90178C0011

main90178-C0011

9018305040

main90183-05040

9018906145

main90189-06145

90467C0033

main90467-C0033

9354013006

main93540-13006

20 parts on this diagram · 2 diagrams in section
