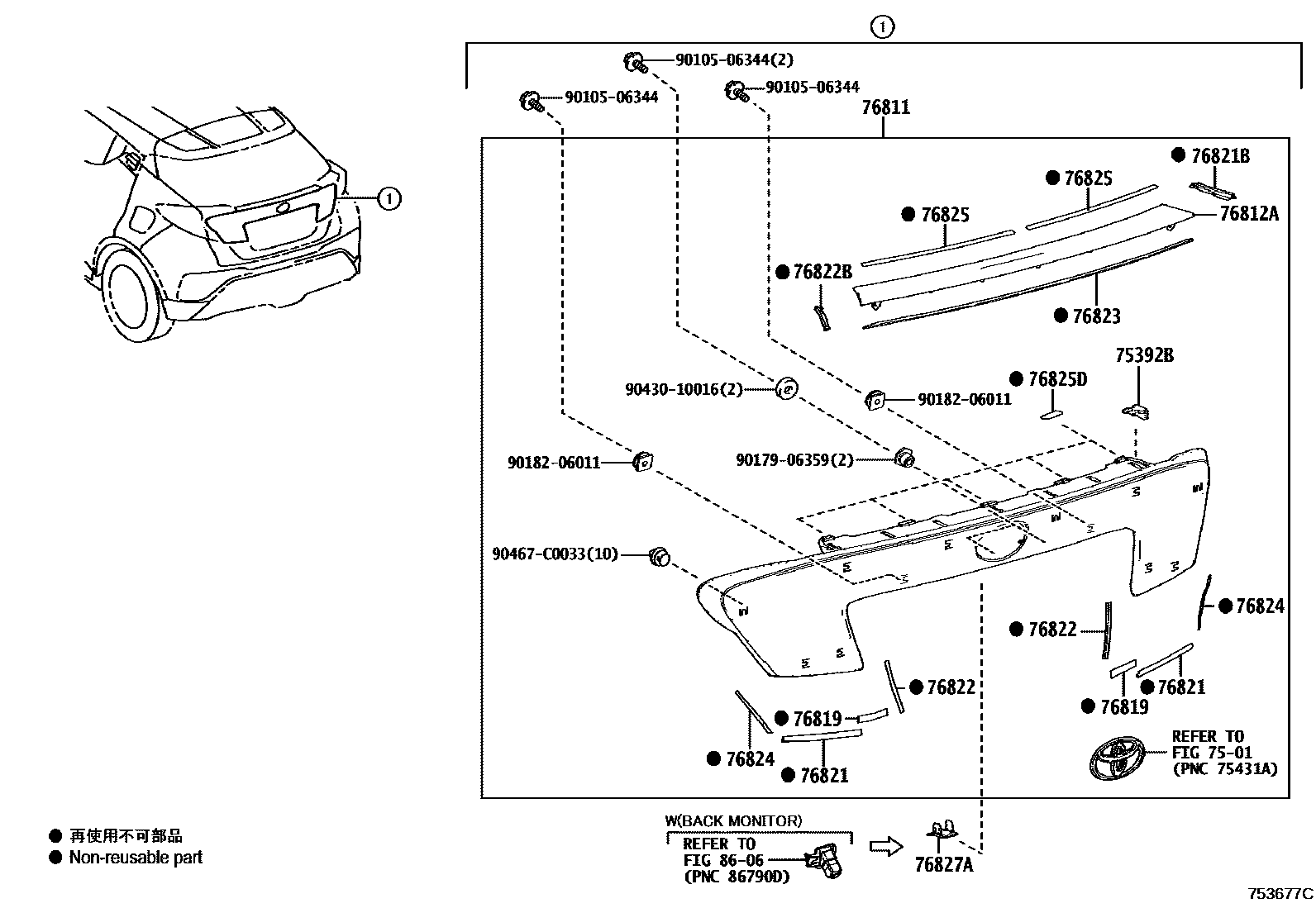

REAR MOULDING
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
75392BRETEINER, OUTSIDE MOULDING, NO.1
76811GARNISH, BACK DOOR, OUTSIDE
WHITE PEARL CS.,070 ,2QJ
ATTITUDE BLACK MC.,218 ,2QH
RED M.M.,2QK ,2QL ,3R3
STEEL BLONDE ME.,4X1
CITRUS M.M.,2QM ,6W2
RADIANT GREEN ME.,2NJ ,6W9
PLATINUM WHITE PEARL MC.,089 ,2PU
CELESTITE GRAY ME.,1K3 ,2UP ,2VB
BLACK MC.,209 ,2TG
RED M.M.,2NU ,3R3
STEEL BLONDE ME.,2TL ,4X1
YELLOW,2VA ,5A3
PLATINUM WHITE PEARL MC.,089 ,2PU
CELESTITE GRAY ME.,1K3 ,2UP ,2VB
BLACK MC.,209 ,2TG
RED M.M.,2NU ,3R3
STEEL BLONDE ME.,2TL ,4X1
YELLOW,2VA ,5A3
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
WHITE PEARL CS.,070 ,2QJ
PLATINUM WHITE PEARL MC.,089 ,2PU
CELESTITE GRAY ME.,1K3 ,2UP ,2VB
ATTITUDE BLACK MC.,218 ,2QH
BLACK MC.,209 ,2TG
RED M.M.,2NU ,3R3
STEEL BLONDE ME.,4X1
YELLOW,2VA ,5A3
CITRUS M.M.,2QM ,6W2
RADIANT GREEN ME.,2NJ ,6W9
76819SEAL, BACK DOOR OUTSIDE GARNISH
76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER
76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH
76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER
76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76827ARETAINER, BACK DOOR GARNISH, NO.2
8606CAMERA & REAR MONITOR DISPLAY
9010506344
main90105-06344
9017906359
main90179-06359
9018206011
main90182-06011
9043010016
main90430-10016
90467C0033
main90467-C0033
20 parts on this diagram · 3 diagrams in section
