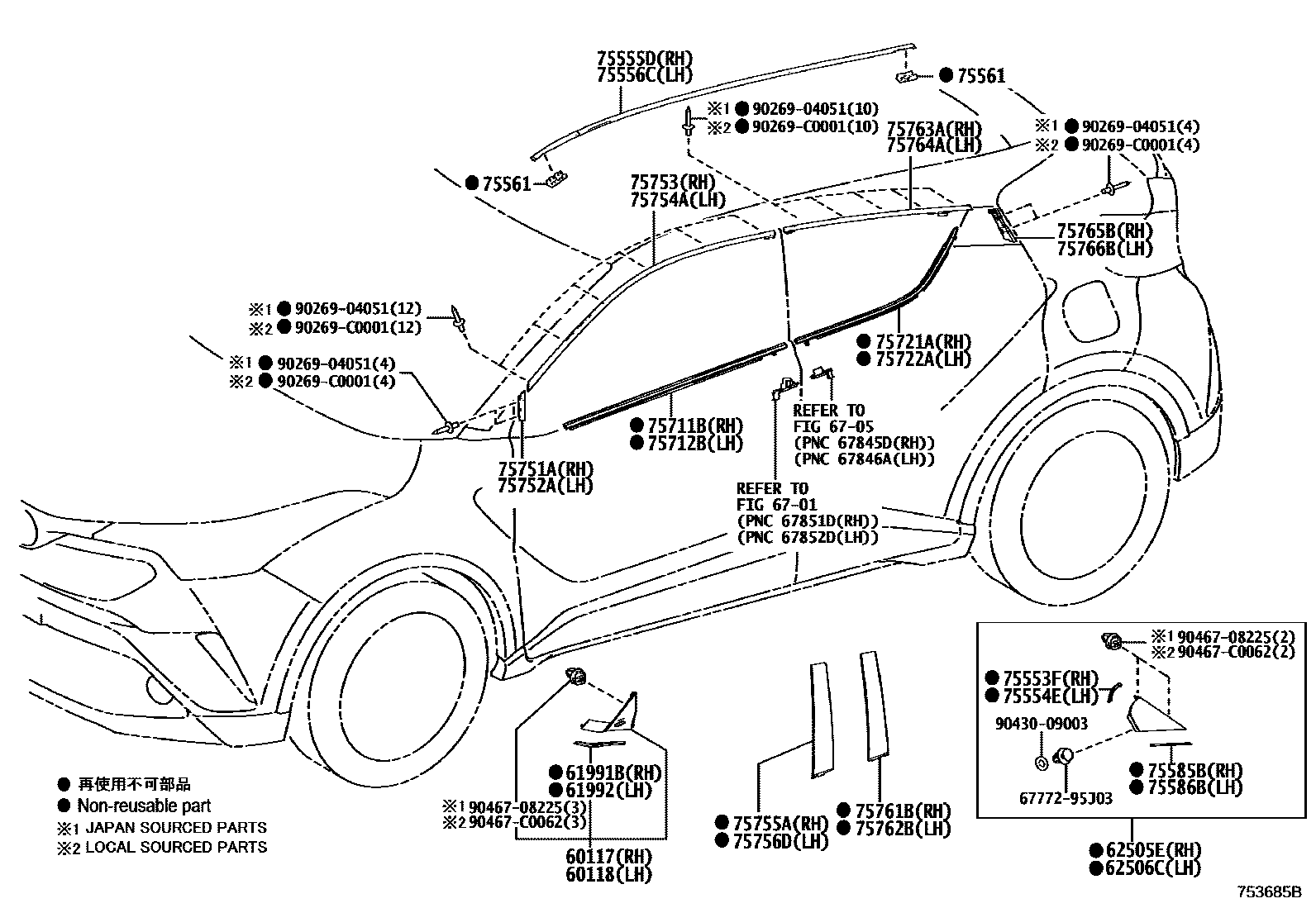

SIDE MOULDING

0001 1 0002 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-F4030iMAXA10..D,G,N201808-202106

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-F4030iMAXA10..D,G,N201808-202106

61991BPROTECTOR, FRONT PILLAR COVER, RH

main61991-F4030iMAXA10..D,G,N201808-202106

61992PROTECTOR, FRONT PILLAR COVER, LH

main61992-F4030iMAXA10..D,G,N201808-202106

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-F4040iMAXA10..D,G,N201808-202106

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-F4040iMAXA10..D,G,N201808-202106

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

75553FMOULDING, QUARTER GARNISH, RH

main75553-F4040iMAXA10..E201808

75554EMOULDING, QUARTER GARNISH, LH

main75554-F4040iMAXH10;MAXA10..D,G,N202106

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-F4060iMAXA10..D,G,N201808-202106

main75555-F4070-A0iMAXA10..D,G,N201808-202106

BODY COLOR-TWO-TONES,WHITE,2NJ ,2QH ,2QK

main75555-F4070-C0iMAXA10..E201808

BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2QJ ,2QL ,2QM

main75555-F4070-C1iMAXH10;MAXA10..D,G,N202106

BODY COLOR-TWO-TONES,BLACK MC.,2NU ,2PU ,2TL ,2UP ,2VA

main75555-F4070-E0iMAXH10;MAXA10..D,G,N202106

BODY COLOR-TWO-TONES,STEEL BLONDE ME.,2TG ,2VB

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-F4060iMAXA10..E201808

main75556-F4070-A0iMAXA10..D,G,N201808-202106

BODY COLOR-TWO-TONES,WHITE,2NJ ,2QH ,2QK

main75556-F4070-C0iMAXA10..E201808

BODY COLOR-TWO-TONES,ATTITUDE BLACK MC.,2QJ ,2QL ,2QM

main75556-F4070-C1iMAXH10;MAXA10..D,G,N202106

BODY COLOR-TWO-TONES,BLACK MC.,2NU ,2PU ,2TL ,2UP ,2VA

main75556-F4070-E0iMAXH10;MAXA10..D,G,N202106

BODY COLOR-TWO-TONES,STEEL BLONDE ME.,2TG ,2VB

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iMAXA10..D,G,N201808-202106

75585BPROTECTOR, REAR PILLAR GARNISH, NO.1

main75585-F4040iMAXA10..D,G,N201808-202106

75586BPROTECTOR, REAR PILLAR GARNISH, NO.2

main75586-F4040iMAXA10..D,G,N201808-202106

75711BMOULDING, FRONT DOOR BELT, RH

main75710-F4050iMAXA10,MAXH10..D,N202106

main75710-F4060iMAXA10..G,N201808-202106

75712BMOULDING, FRONT DOOR BELT, LH

main75720-F4050iMAXA10,MAXH10..D,N202106

main75720-F4060iMAXA10..E201808

75721AMOULDING, REAR DOOR BELT, RH

main75730-F4050iMAXA10..D201808-202106

main75730-F4060iMAXA10..G;MAXH10..E,G202106

75722AMOULDING, REAR DOOR BELT, LH

main75740-F4050iMAXA10..D201808-202106

main75740-F4060iMAXA10..G,N201808-202106

75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)

main75751-F4040iMAXA10..D,G,N201808-202106

75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)

main75752-F4040iMAXA10..D,G,N201808-202106

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-F4040iMAXH10;MAXA10..D,G,N202106

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-F4040iMAXA10..E201808

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-F4070iMAXA10,MAXH10..D,N202106

main75755-F4080iMAXA10..G;MAXH10..E,G202106

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-F4070iMAXA10,MAXH10..D,N202106

main75756-F4080iMAXA10..G;MAXH10..E,G202106

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-F4070iMAXA10..D201808-202106

main75761-F4080iMAXA10..E201808

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-F4070iMAXA10,MAXH10..D,N202106

main75762-F4080iMAXA10..E201808

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-F4040iMAXA10..D,G,N201808-202106

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-F4040iMAXA10..E201808

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-F4030iMAXA10..D,G,N201808-202106

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-F4030iMAXA10..D,G,N201808-202106

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03

9026904051

main90269-04051

90269C0001

main90269-C0001

9043009003

main90430-09003

9046708225

main90467-08225

90467C0062

main90467-C0062

37 parts on this diagram · 2 diagrams in section
