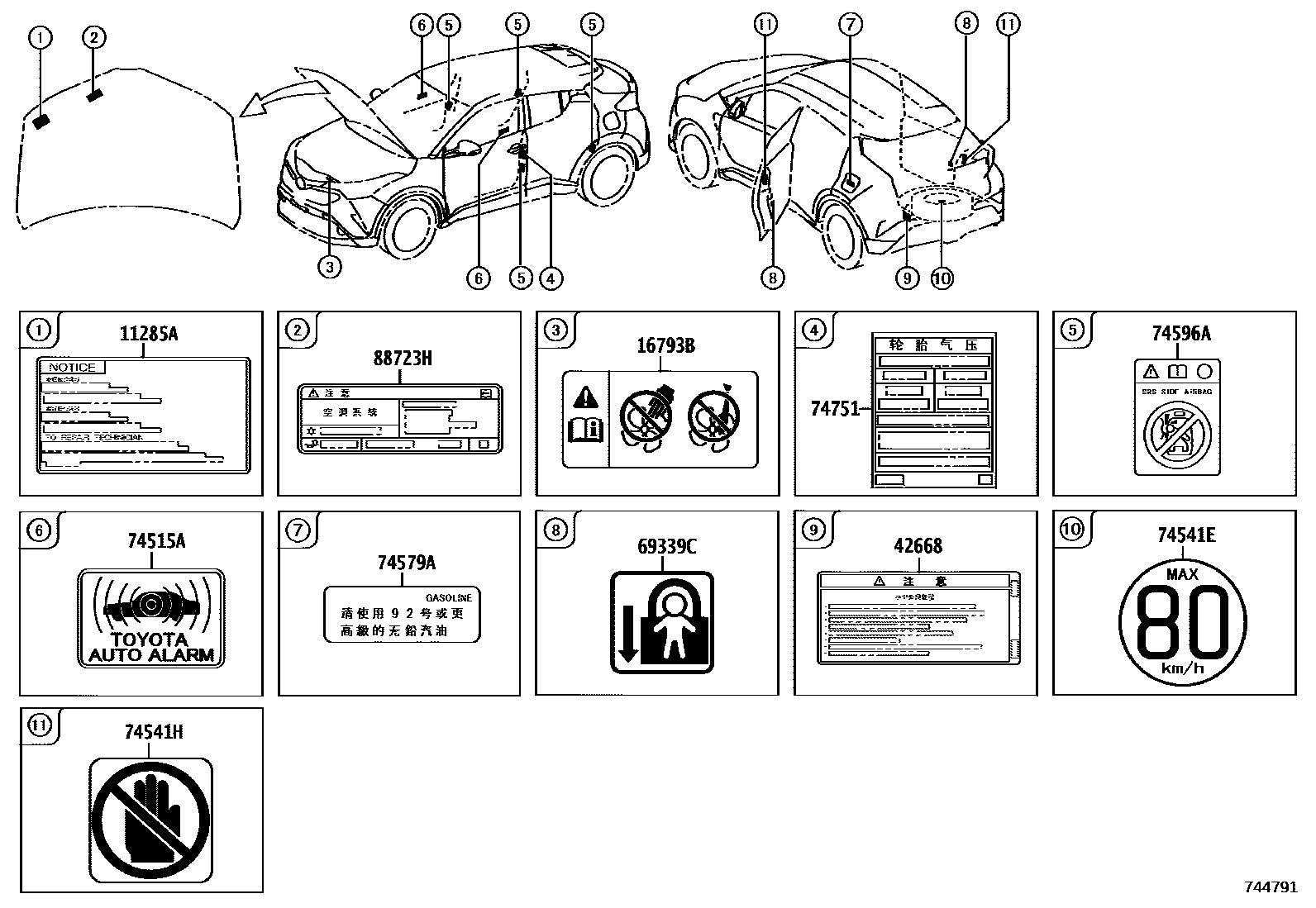

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1 0004 1 0005 1

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0Y020iM20..MAXA10..E201808

16793BLABEL, COOLING FAN INFORMATION

main16793-36030iM20..MAXA10..E201808

42668LABEL, COMPACT SPARE TIRE CAUTION

main42668-0D100iMAXA10..E201808

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-06080×2iMAXA10..E201808

74515APLATE, THEFT WARNING

main74515-F4010×2iMAXA10201808-202007

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-20020iMAXA10..E201808

74541HPLATE, BODY CAUTION

main74541-F4040×2iMAXA10..E201808

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-0D010iMAXA10..E201808

main74579-26011iMAXA10..D,G,N202106

(J)

74596ALABEL, SIDE AIRBAG CAUTION

main74596-0G010×4iMAXA10201808-202001

74751LABEL, TIRE PRESSURE INFORMATION

main42661-0A260iMAXH10;MAXA10..D,G,N202303

main42661-F4170iMAXA10..E201808

88723HLABEL, COOLER SERVICE CAUTION

main88723-02520iMAXH10202106

main88723-F4150iMAXA10..E201808

11 parts on this diagram · 5 diagrams in section
