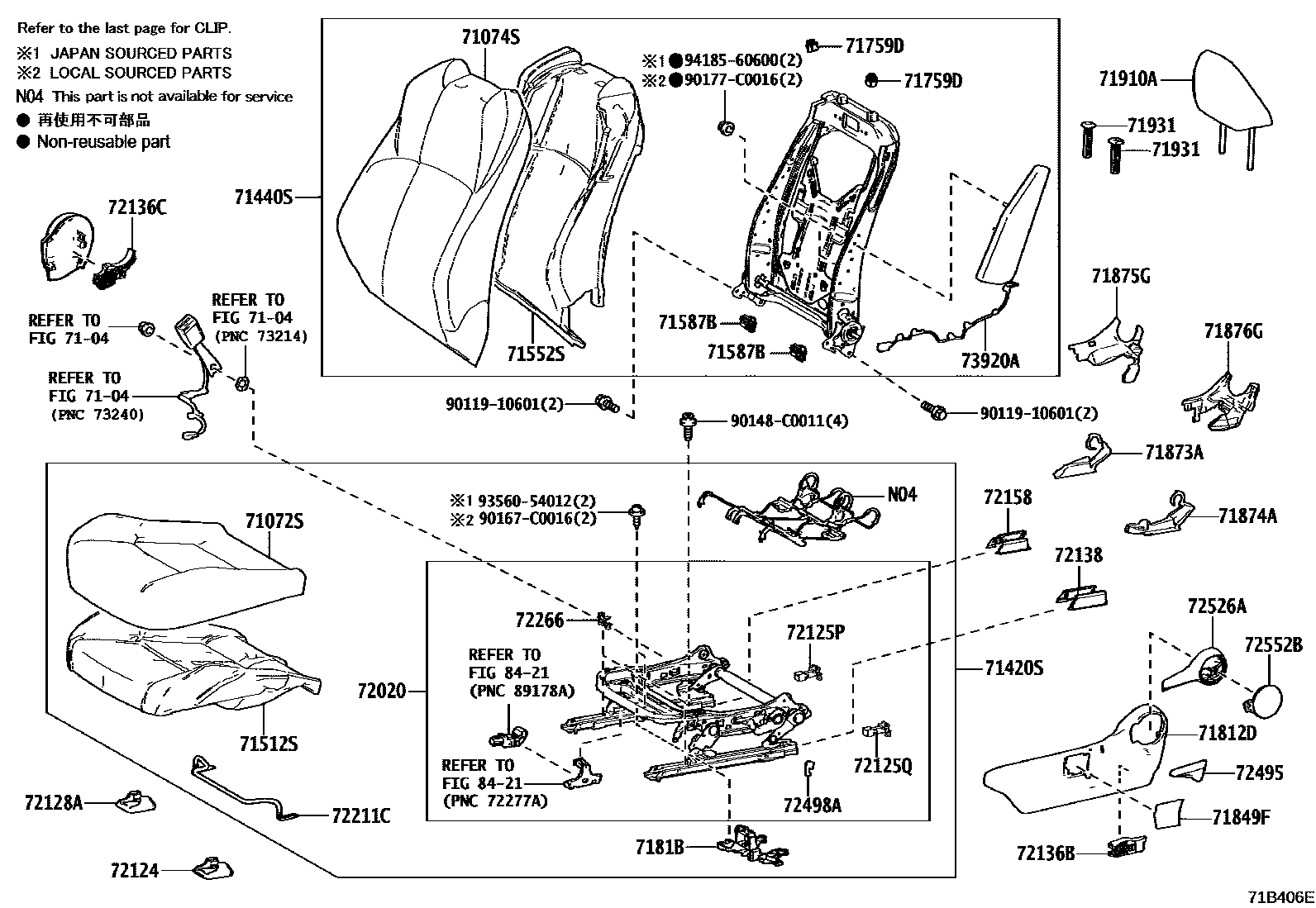

FRONT SEAT & SEAT TRACK

0001 1LH (MANUAL SEAT) 0002 1LH (MANUAL SEAT) 0003 1LH (POWER SEAT) 0004 1LH (POWER SEAT) 0005 1RH 0006 1RH 0007 1CLIP

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-F4150-B2iMAXA10..D201808-202106

DK.GRAY,TRIM2#

main71072-F4150-B4iMAXA10..D202106

DK.GRAY,TRIM2#

main71072-F4160-B2iMAXA10..G,N201808-201911

DARK GREY,TRIM2#

main71072-F4170-C2iMAXA10..E201808-201911

BLACK,TRIM2#

main71072-F4440-C0iMAXA10..E201911-202106

BLACK,TRIM2#

main71072-F4450-A0iMAXA10..G,N201911-202106

CKD COLOR,TRIM2#

main71072-F4450-C0supersedes 71072-F4480-C2iMAXA10,MAXH10..G202106-202303

BLACK,TRIM2#

main71072-F4451-C0iMAXA10,MAXH10..G; MAXA10,MAXH10..N202303

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71072-F4520-C5iMAXH10..E202106-202303

BLACK,TRIM2#

main71072-F4521-C5iMAXH10..E202303

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-F4210-B1iMAXA10..D201808-202106

DK.GRAY,TRIM2#

main71074-F4210-B2iMAXA10..D202106-202303

DK.GRAY,TRIM2#

main71074-F4220-B1iMAXA10..G,N201808-201911

DARK GREY,TRIM2#

main71074-F4230-C2iMAXA10..E201808-202106

BLACK,TRIM2#

main71074-F4570-A0iMAXA10..G,N201911-202106

CKD COLOR,TRIM2#

main71074-F4570-C0supersedes 71074-F4790-C0iMAXA10,MAXH10..G202106-202303

BLACK,TRIM2#

main71074-F4610-C3iMAXH10..E202106-202303

BLACK,TRIM2#

main71074-F4780-B0iMAXA10..D202303

DK.GRAY,TRIM2#

main71074-F4800-C0iMAXA10,MAXH10..G; MAXA10,MAXH10..N202303

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-F4810-C0iMAXH10..E202303

BLACK,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-F4360-C1iMAXA10..D201808-202106

BLACK,TRIM2#

main71420-F4360-C4iMAXA10..D202106-202303

BLACK,TRIM2#

main71420-F4370-C1iMAXA10..G,N201808-201911

BLACK,TRIM2#

main71420-F4380-C1iMAXA10..E201808-201911

BLACK,TRIM2#

main71420-F4730-C0iMAXA10..D202303

BLACK,TRIM2#

main71420-F4750-C0supersedes 71420-F4A40-C2iMAXA10,MAXH10..G; MAXA10,MAXH10..N202303

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71420-F4760-C0iMAXH10..E202303

BLACK,TRIM2#

main71420-F4870-C0iMAXA10..E201911-202106

BLACK,TRIM2#

main71420-F4880-C0iMAXA10..G,N201911-202106

CKD COLOR,TRIM2#

main71420-F4880-C1iMAXA10,MAXH10..G202106-202303

BLACK,TRIM2#

main71420-F4A50-C5iMAXH10..E202106-202303

BLACK,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-F4260-C1iMAXA10..D201808-202106

BLACK,TRIM2#

main71440-F4260-C2iMAXA10..D202106-202303

BLACK,TRIM2#

main71440-F4270-C1iMAXA10..G,N201808-201911

BLACK,TRIM2#

main71440-F4280-C2iMAXA10..E201808-201911

BLACK,TRIM2#

main71440-F4630-C0iMAXA10..D202303

BLACK,TRIM2#

main71440-F4650-C0supersedes 71440-F4850-C1iMAXA10,MAXH10..G; MAXA10,MAXH10..N202303

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71440-F4660-C0iMAXH10..E202303

BLACK,TRIM2#

main71440-F4770-C0iMAXA10..E201911-202106

BLACK,TRIM2#

main71440-F4780-C0iMAXA10..G,N201911-202106

CKD COLOR,TRIM2#

main71440-F4780-C1iMAXA10,MAXH10..G202106-202303

BLACK,TRIM2#

main71440-F4860-C3iMAXH10..E202106-202303

BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-F4050iMAXA10..E,G,N201808-201911

main71512-F4070iMAXA10..E,G,N201911-202106

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-F4090iMAXA10201808-202106

main71552-F4180iMAXH10;MAXA10..D,G,N202303

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-06010×2iMAXH10;MAXA10..D,G,N202106

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-06010×2iMAXA10..E,G,N201808-201911

main71587-F4020×2iMAXA10,MAXH10..N; MAXA10..G;MAXH10..E,G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER

71759DHOOK, FRONT SEATBACK, NO.2

main71759-06030×2iMAXA10..E,G,N201808-201911

main71759-F4020×2iMAXA10,MAXH10..N; MAXA10..G;MAXH10..E,G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-06570-C0iMAXA10..D201808-202106

BLACK,TRIM2#

main71812-06580-C0iMAXA10..G;MAXH10..E,G202106

BLACK,TRIM2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-06010iMAXA10..D201808-202106

main7181B-06020iMAXA10..G;MAXH10..E,G202106

71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

main71849-47010-C1iMAXA10..E,G,N201808-201911

BLACK,TRIM2#

main71849-F4040-C0iMAXA10,MAXH10..D,N202106

BLACK,TRIM2#,(L)

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06400iMAXA10201808-202106

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71874-06390iMAXH10;MAXA10..D,G,N202106

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-F4090-C0iMAXA10201808-202106

BLACK,TRIM2#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-02510iMAXH10;MAXA10..D,G,N202303

main71874-06400iMAXA10201808-202106

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-06420-C0iMAXA10201808-202106

BLACK,TRIM2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-06390-C0iMAXA10201808-202106

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-F4090-C1×2iMAXA10..D201808-202106

BLACK,TRIM2#

main71910-F4100-J1×2iMAXA10..G,N201808-201911

BLUE,TRIM2#

main71910-F4110-C1×2iMAXA10..E201808-202106

BLACK,TRIM2#

main71910-F4160-A0×2iMAXA10..G,N201911-202106

CKD COLOR,TRIM2#

main71910-F4170-C0×2iMAXA10..D202106-202303

BLACK,TRIM2#

main71910-F4190-C0×2supersedes 71910-F4280-C0iMAXA10,MAXH10..G202106-202303

BALCK,TRIM2#

main71910-F4190-C1×2iMAXH10..E202106-202303

BLACK,TRIM2#

main71910-F4270-C0×2iMAXA10..D202303

BLACK,TRIM2#

main71910-F4290-C0×2iMAXA10,MAXH10..G; MAXA10,MAXH10..N202303

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71910-F4290-C1×2iMAXH10..E202303

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-06070-C0×2iMAXA10201808-202106

W(LOCK),BLACK,TRIM2#

main71931-06060-C0×2iMAXA10201808-202106

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-F4090iMAXA10201808-201905

main72020-F4091iMAXA10..E,G,N201906-201911

main72020-F4120iMAXA10..E,G,N201911-202106

main72020-F4200iMAXA10,MAXH10..D,N202303

main72020-F4210iMAXA10,MAXH10..N; MAXA10..G;MAXH10..E,G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-F4040iMAXA10..D,G,N201808-202106

72125PCOVER, SEAT TRACK, UPPER REAR NO.3

main72125-06050iMAXA10,MAXH10..N; MAXA10..G;MAXH10..E,G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER

main72125-06060iMAXA10..E,G,N201808-201911

72125QCOVER, SEAT TRACK, UPPER REAR NO.4

main72125-06050iMAXA10,MAXH10..N; MAXA10..G;MAXH10..E,G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER

main72125-06060iMAXA10..D201808-202106

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-F4040iMAXA10..D,G,N201808-202106

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-06560iMAXH10;MAXA10..D,G,N202106

main72136-06640iMAXA10201808-202106

72136BSPACER, SEAT TRACK, LOWER NO.3

main72136-06600iMAXA10..D201808-202106

main72136-06620iMAXA10..G;MAXH10..E,G202106

72136CSPACER, SEAT TRACK, LOWER NO.4

main72136-06610iMAXA10,MAXH10..D,N202106-202303

main72136-06630iMAXA10..E,G,N201911-202106

main72136-F4160iMAXA10,MAXH10..N; MAXA10..G;MAXH10..E,G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER

main72136-F4170iMAXA10,MAXH10..D,N202303

72138COVER, SEAT TRACK, OUTER LH

main72137-F4030iMAXA10..D,G,N201808-202106

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-F4030iMAXA10..D,G,N201808-202106

72211HANDLE, SEAT TRACK ADJUSTING

main72211-06140iMAXA10201808-202106

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-06140iMAXA10,MAXH10..D,N202106

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-06020×2iMAXA10,MAXH10..N; MAXA10..G;MAXH10..E,G202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER

main72265-06030×2iMAXA10..D201808-202106

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-F4060-C0iMAXA10..D201808-202106

BLACK,TRIM2#

72498ACOVER, VERTICAL ADJUSTER BRACKET, LH

main72498-06050iMAXA10..E,G,N201808-201911

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-F4100-C0iMAXA10..E,G,N201808-201911

BLACK,TRIM2#

72552BCOVER, RECLINING HINGE, LH

main72551-06010-C0iMAXA10..E,G,N201808-201911

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-F4041iMAXA10201808

main73920-F4090iMAXH10;MAXA10..D,G,N202303

8421AIR BAG

→ Go to FIG 84-21

9011910601

main90119-10601

90148C0011

main90148-C0011

90167C0016

main90167-C0016

90177C0016

main90177-C0016

9356054012

main93560-54012

9418560600

main94185-60600

46 parts on this diagram · 7 diagrams in section
