REAR DOOR PANEL & GLASS

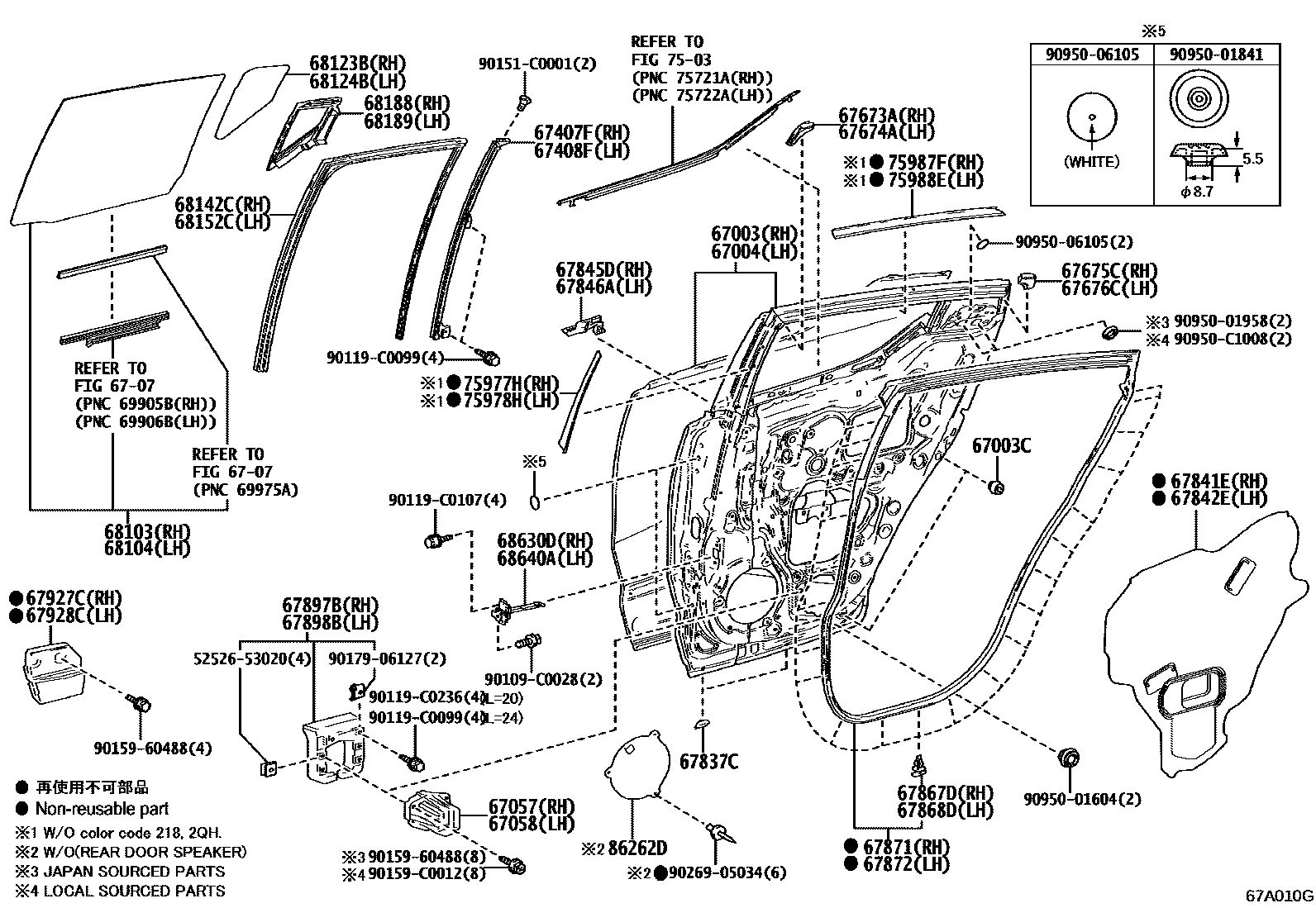

Parts diagram
67003PANEL SUB-ASSY, REAR DOOR, RH
main67003-F4070i202106
67003CCUSHION, REAR DOOR PANEL
main90541-09124×4i202106
(J),TYPE A:REF ILL.
main90541-09143×4i202106
TYPE B:REFER ILLUST.
main90541-C0003×4i202106
(L),TYPE A:REF ILL.
67004PANEL SUB-ASSY, REAR DOOR, LH
main67004-F4070i201808
67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
main67057-F4050i201808-202106
main67057-F4070i202106
67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
main67058-F4050i201808-202106
main67058-F4070i202106
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
main67407-F4040i202106
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
main67408-F4040i201808
67673AGARNISH, REAR DOOR FRAME, RH
main67673-F4030i201808-202106
67674AGARNISH, REAR DOOR FRAME, LH
main67674-F4030i201808-202106
67675CGARNISH, REAR DOOR FRAME, NO.2 RH
main67675-F4030i201808-202106
67676CGARNISH, REAR DOOR FRAME, NO.2 LH
main67676-F4030i202106
67837CSEAL, REAR DOOR DUST PROOF
main67837-F4050i201808
67841ECOVER, REAR DOOR SERVICE HOLE, RH
main67841-F4050i201808-202106
67842ECOVER, REAR DOOR SERVICE HOLE, LH
main67842-F4050i201808-202106
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
main67845-F4030i201808-202106
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
main67846-F4030i201808-202106
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
main67867-12150×24i201808-202106
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
main67867-12150×24i201808-202106
67871WEATHERSTRIP, REAR DOOR, RH
main67871-F4040i201808-202106
67872WEATHERSTRIP, REAR DOOR, LH
main67872-F4040i201808-202106
67897BCUSHION, REAR DOOR, RH
main67897-F4050i201808-202106
67898BCUSHION, REAR DOOR, LH
main67898-F4050i201808-202106
67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1
main67927-F4030i201808-202106
67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2
main67928-F4030i201808-202106
68103GLASS SUB-ASSY, REAR DOOR, RH
main68103-F4050i201808-201911
main68103-F4051i201911-202106
68104GLASS SUB-ASSY, REAR DOOR, LH
main68104-F4050i201808-201911
main68104-F4051i201911-202106
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
main68123-F4050i201808-201911
main68123-F4051i201911-202106
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
main68124-F4050i201808-201911
main68124-F4051i201911-202106
68142CRUN, REAR DOOR GLASS, RH
main68142-F4040i201808-201907
main68142-F4041i201908-202106
68152CRUN, REAR DOOR GLASS, LH
main68152-F4040i201808-201907
main68152-F4041i201908-202106
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
main68188-F4040i201808-202106
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
main68189-F4040i201808-202106
68630DCHECK ASSY, REAR DOOR, RH
main68630-F4040i201808-202106
68640ACHECK ASSY, REAR DOOR, LH
main68630-F4040i201808-202106
7503SIDE MOULDING
→ Go to FIG 75-03
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
main75977-F4040i201808-202106
0 OR 1PIECE,REF.ILL.
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
main75978-F4040i201808-202106
0 OR 1PIECE,REF.ILL.
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
main75987-F4040i201808-202106
0 OR 1PIECE,REF.ILL.
75988ESTRIPE, REAR DOOR, OUTSIDE LH
main75988-F4040i201808-202106
0 OR 1PIECE,REF.ILL.
86262DCOVER, REAR DOOR SPEAKER
main86262-50010×2i201808-202106
5252653020RETAINER, FRONT BUMPER, LOWER SIDE
main52526-53020
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90119C0107
main90119-C0107
90119C0236
main90119-C0236
90151C0001
main90151-C0001
9015960488
main90159-60488
90159C0012
main90159-C0012
9017906127
main90179-06127
9026905034
main90269-05034
9095001604
main90950-01604
9095001841
main90950-01841
9095001958
main90950-01958
9095006105
main90950-06105
90950C1008
main90950-C1008

55 parts on this diagram · 5 diagrams in section
