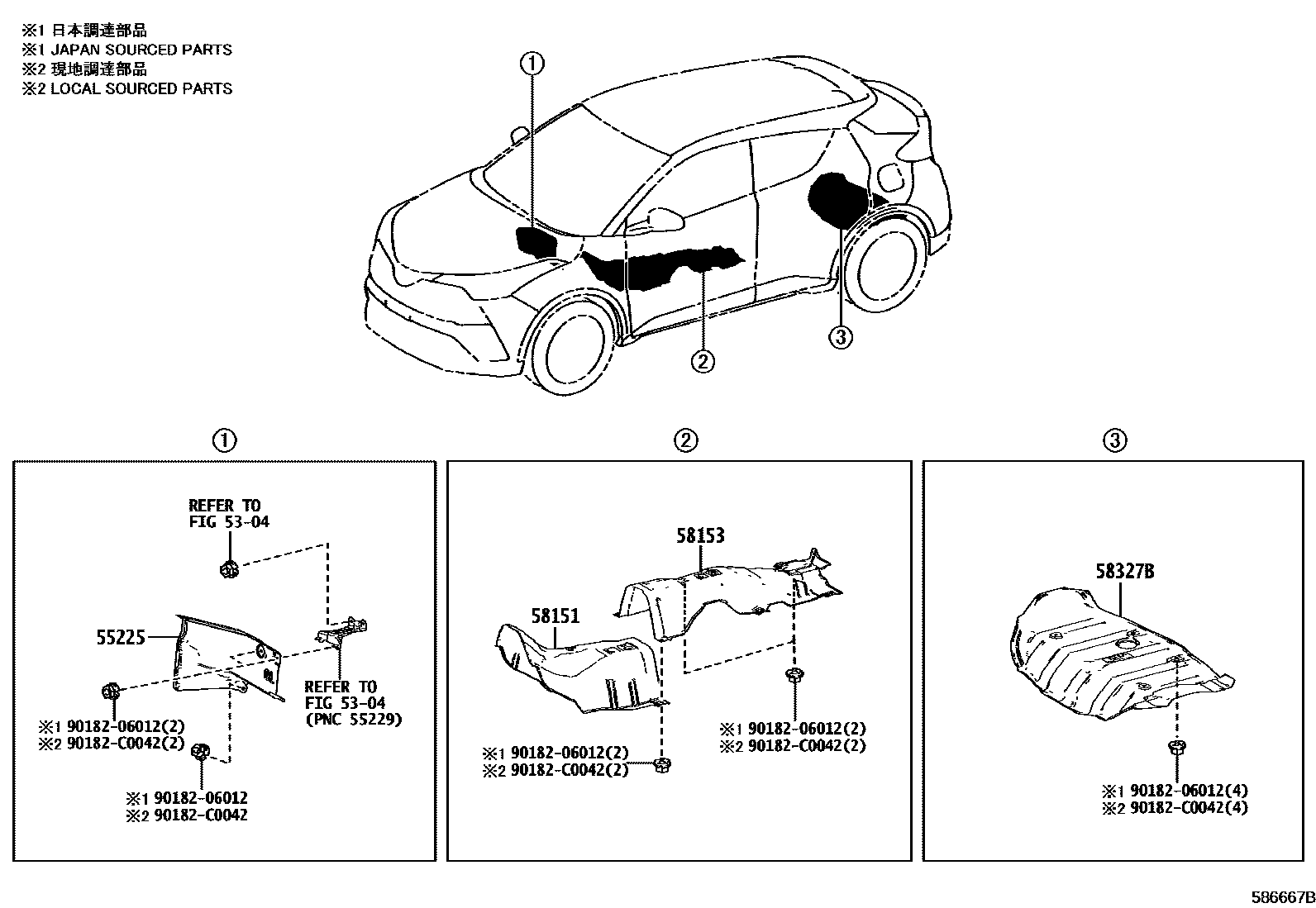

FLOOR INSULATOR

0001 1 0002 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

55225INSULATOR, DASH PANEL HEAT

main55225-F4040iMAXA10..D,G,N201808-202106

main55225-F4060iMAXH10202106

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0A130iMAXA10..D,G,N202303

main58151-F4080iMAXA10..D,G,N202106-202302

main58151-F4110iMAXH10202106-202302

main58151-F4190iMAXH10202303

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-F4050iMAXA10..E201808

main58153-F4051iMAXH10;MAXA10..D,G,N202112

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-F4050iMAXA10..D,G,N201808-202106

9018206012

main90182-06012

90182C0042

main90182-C0042

7 parts on this diagram · 2 diagrams in section
