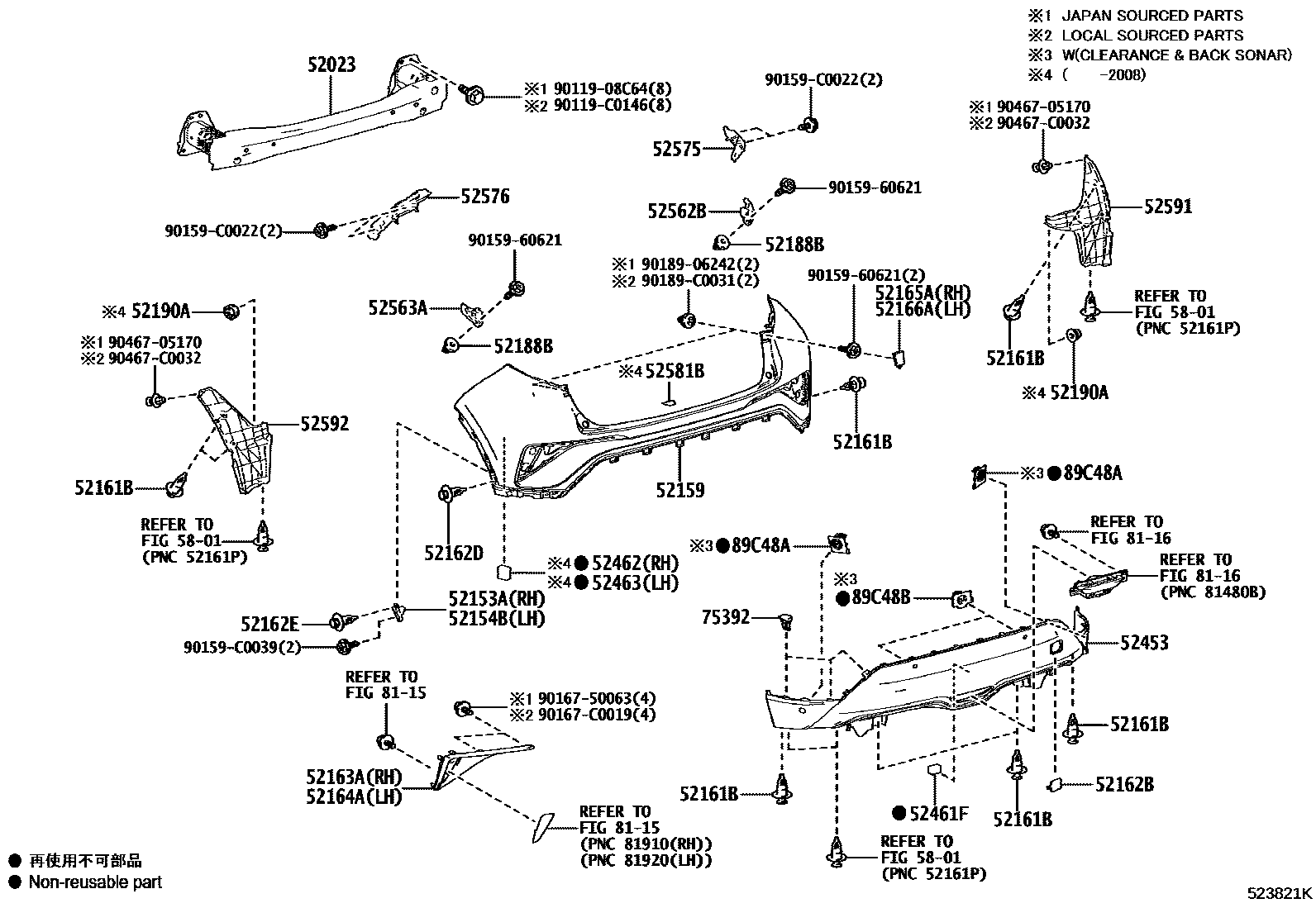

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52153ASTAY, REAR BUMPER SIDE, RH
52154BSTAY, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
52162BPLATE, REAR BUMPER, NO.1
52163APLATE, REAR BUMPER, RH
52164APLATE, REAR BUMPER, LH
52165ACOVER, REAR BUMPER, UPR RH
NO PAINT REQ.
52166ACOVER, REAR BUMPER, UPR LH
NO PAINT REQ.
52188BSPACER, REAR BUMPER MOUNTING
52190ACLIP
(J)
BLACK,(J)
BLACK,(L)
(L)
52453GUARD, REAR BUMPER, CENTER
52461FPAD, REAR BUMPER
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52581BPROTECTOR, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
5801FLOOR PAN & LOWER BACK PANEL
75392RETAINER, OUTSIDE MOULDING
(L)
(J)
8115REFLEX REFLECTOR
8116REAR FOG LAMP
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
BLACK
DUMMY-MAT BLACK,LH
DUMMY-MAT BLACK,RH
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
LH
RH
DUMMY-MAT BLACK
9011908C64
main90119-08C64
90119C0146
main90119-C0146
9015960621
main90159-60621
90159C0022
main90159-C0022
90159C0039
main90159-C0039
9016750063
main90167-50063
90167C0019
main90167-C0019
9018906242
main90189-06242
90189C0031
main90189-C0031
9046705170
main90467-05170
90467C0032
main90467-C0032
42 parts on this diagram · 1 diagram in section
