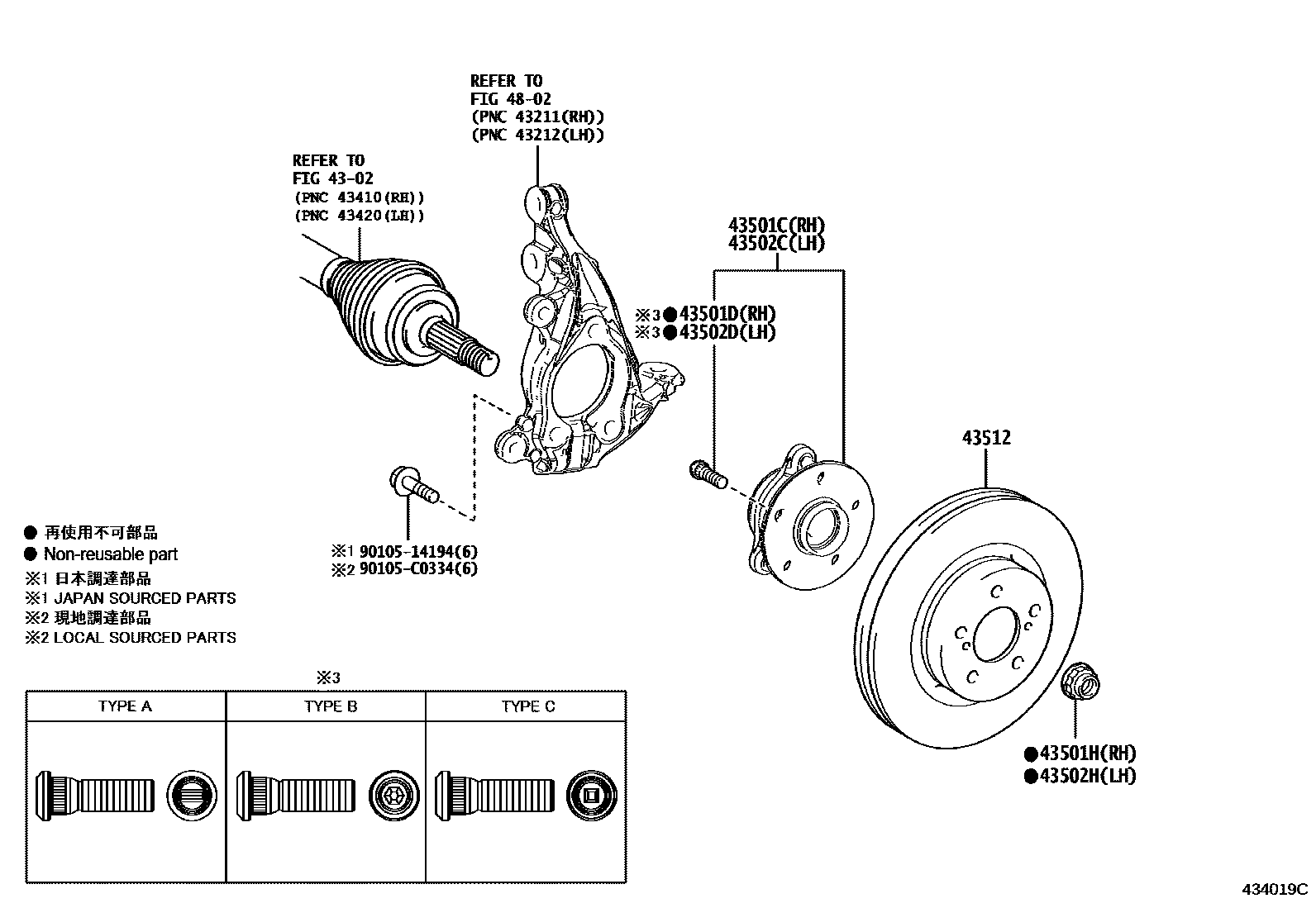

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-F4040iMAXA10..E201808-202106

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMAXH10;MAXA10..D,G,N201808-202106

TYPE A:REFER ILLUST.

main90942-02081iMAXH10;MAXA10..D,G,N201808-202106

TYPE B:REFER ILLUST.

main90942-02082iMAXA10..E201808-202106

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMAXA10..D,G,N201808-202106

main90177-22001iMAXH10;MAXA10..D,G,N202106

(J)

main90177-C0004iMAXH10;MAXA10..D,G,N202106

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-F4040iMAXA10..E201808-202106

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMAXH10;MAXA10..D,G,N201808-202106

TYPE A:REFER ILLUST.

main90942-02081iMAXH10;MAXA10..D,G,N201808-202106

TYPE B:REFER ILLUST.

main90942-02082iMAXH10;MAXA10..D,G,N201808-202106

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMAXA10..D,G,N201808-202106

main90177-22001iMAXH10;MAXA10..D,G,N202106

(J)

main90177-C0004iMAXH10;MAXA10..D,G,N202106

(L)

43512DISC, FRONT

main43512-06170iMAXA10..D,G,N201808-202106

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010514194

main90105-14194

90105C0334

main90105-C0334

11 parts on this diagram · 1 diagram in section
