Toyota C-HR(CHINA) — OIL COOLER & TUBE (HEV OR BEV OR FCEV)

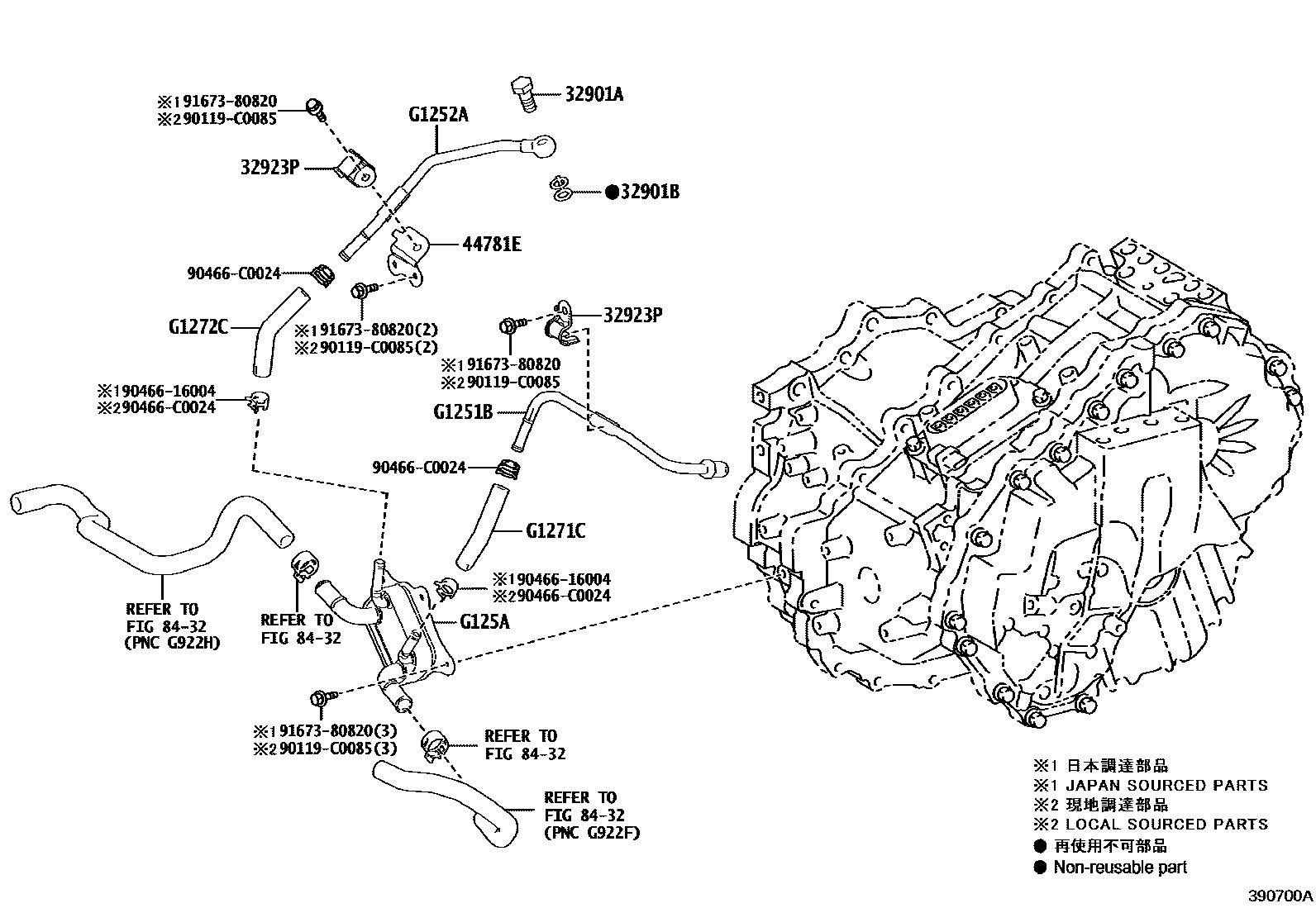

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

32901BGASKET(FOR OIL COOLER UNION)

32923PCLAMP, OIL COOLER TUBE, NO.1

44781EBRACKET, HOSE

8432INVERTER COOLING

→ Go to FIG 84-32

G1251BPIPE, MOTOR COOLING, NO.1

G1252APIPE, MOTOR COOLING, NO.2

G125ACOOLER, MOTOR COOLING

G1271CHOSE, MOTOR COOLING, NO.1

G1272CHOSE, MOTOR COOLING, NO.2

90119C0085

9046616004

90466C0024

9167380820

14 parts on this diagram · 1 diagram in section

OIL COOLER & TUBE (HEV OR BEV OR FCEV) for Toyota C-HR(CHINA)

This section contains 14 genuine Toyota parts for the OIL COOLER & TUBE (HEV OR BEV OR FCEV) system of the Toyota C-HR(CHINA). Key components include: BOLT, UNION(FOR OIL COOLER), GASKET(FOR OIL COOLER UNION), CLAMP, OIL COOLER TUBE, NO.1, BRACKET, HOSE, INVERTER COOLING.
