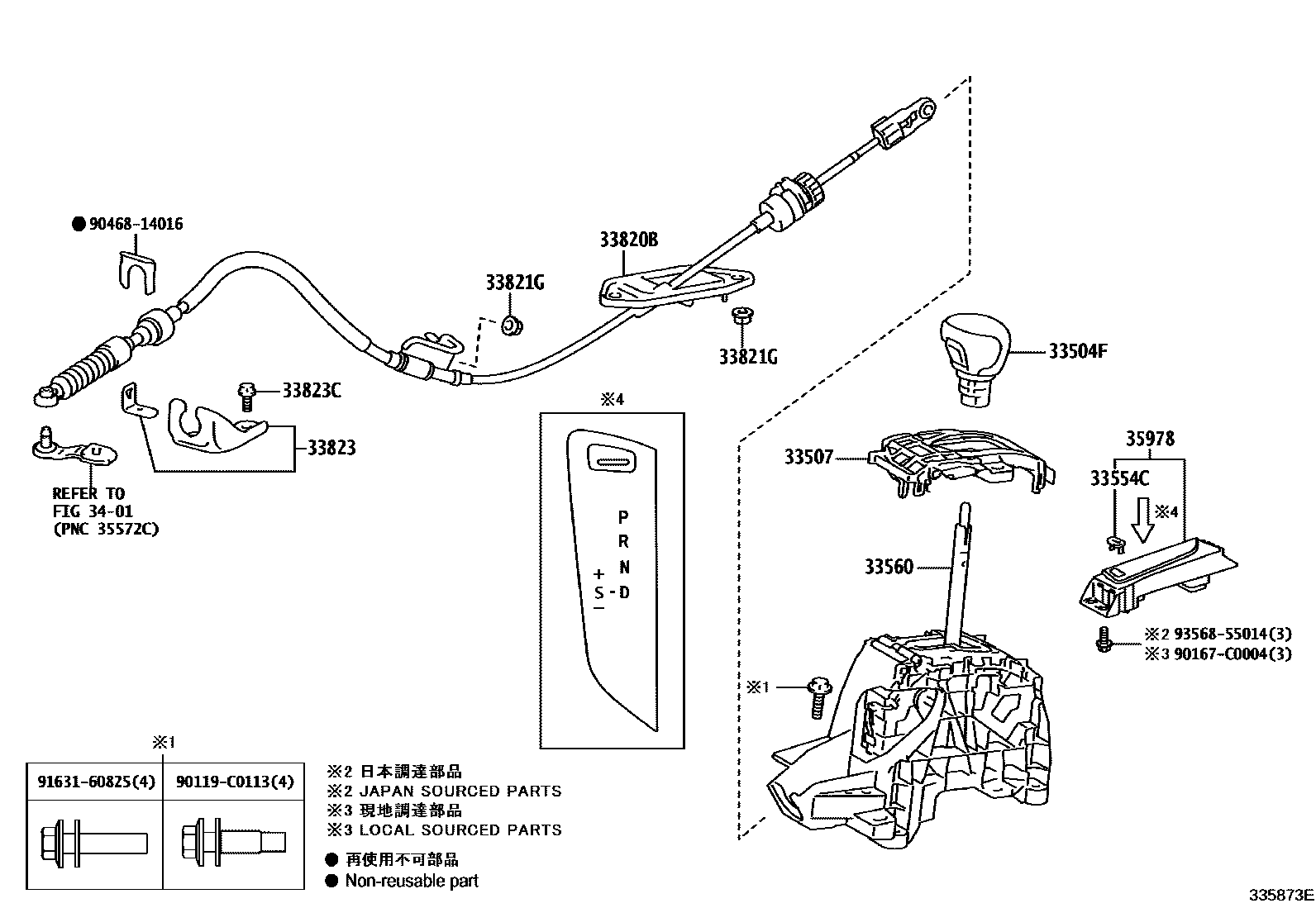

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02800-C0iMAXA10,MAXH10..D,N202106

BLACK,TRIM2#

main33504-F4040-C0iMAXA10..D,G,N201808-202106

BLACK,TRIM2#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-F4050iMAXA10..E201808-202106

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-F4060iMAXA10..D,G,N201808-202106

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0R110iMAXH10202106

main33560-F4120iMAXA10..D201808-202106

main33560-F4130iMAXA10..G,N201808-202106

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-F4080iMAXA10..D,G,N201808-202106

main33820-F4150iMAXH10202106

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0011iMAXA10..E201808-202106

(L)

main90178-C0034iMAXH10202106

(L)

main90179-06274iMAXA10..E201808-202106

(J)

main94151-80800iMAXH10202106

(J)

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-F4050iMAXA10..D,G,N201808-202106

main33823-F4090iMAXH10202106

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iMAXA10..D,G,N201808-202106

(J)

main90119-C0212iMAXA10..E201808-202106

(L)

3401

35978INDICATOR, SHIFT POSITION

main35978-F4070iMAXH10202106

main35978-F4090iMAXA10..D,G,N201808-202303

main35978-F4150iMAXA10..D,G,N202303

90119C0113

main90119-C0113

90167C0004

main90167-C0004

9046814016

main90468-14016

9163160825

main91631-60825

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
