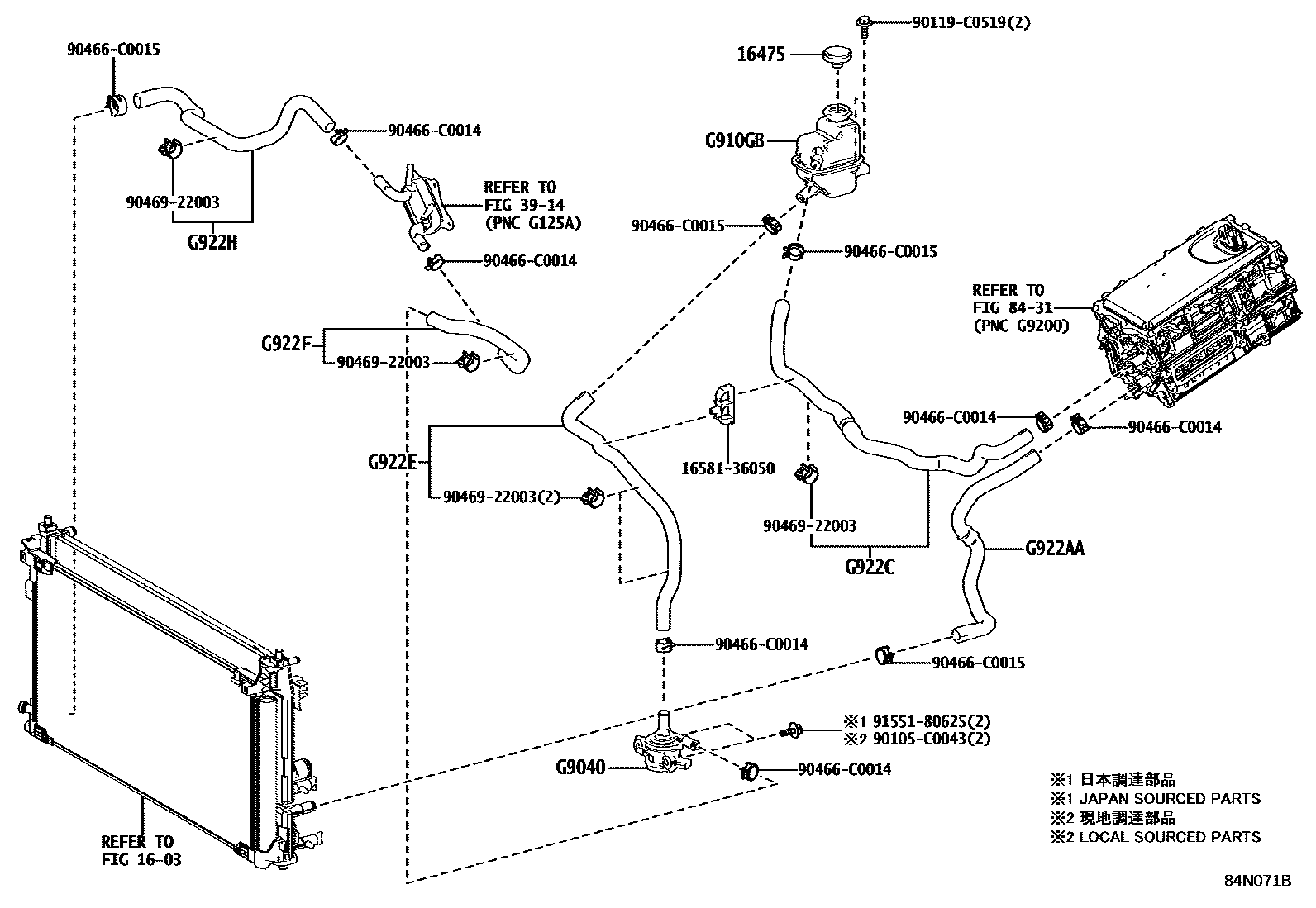

INVERTER COOLING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-0T081iM20EFXS..MAXH10202105

LOCAL SOURCED PARTS

main16475-28140iM20EFXS..MAXH10202105

JAPAN SOURCED PARTS

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

8431HEV INVERTER

→ Go to FIG 84-31

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904007020iMAXH10202304

LOCAL SOURCED PARTS

mainG904028020iMAXH10202304-202401

JAPAN SOURCED PARTS

mainG904033050iMAXH10202105-202303

JAPAN SOURCED PARTS

mainG9040F4020iMAXH10202105-202303

LOCAL SOURCED PARTS

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910GF4060iMAXH10202105

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922AF4060iMAXH10202105

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922CF4050iMAXH10202105

G922EHOSE, HYBRID WATER PUMP INLET

mainG922EF4060iMAXH10202105

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922FF4050iMAXH10202105

G922HHOSE, HYBRID RADIATOR INLET

mainG922HF4020iMAXH10202105

1658136050CLAMP, HOSE(FOR WATER HOSE)

main16581-36050

90105C0043

main90105-C0043

90119C0519

main90119-C0519

90466C0014

main90466-C0014

90466C0015

main90466-C0015

9046922003

main90469-22003

9155180625

main91551-80625

18 parts on this diagram · 1 diagram in section
