HEV INVERTER

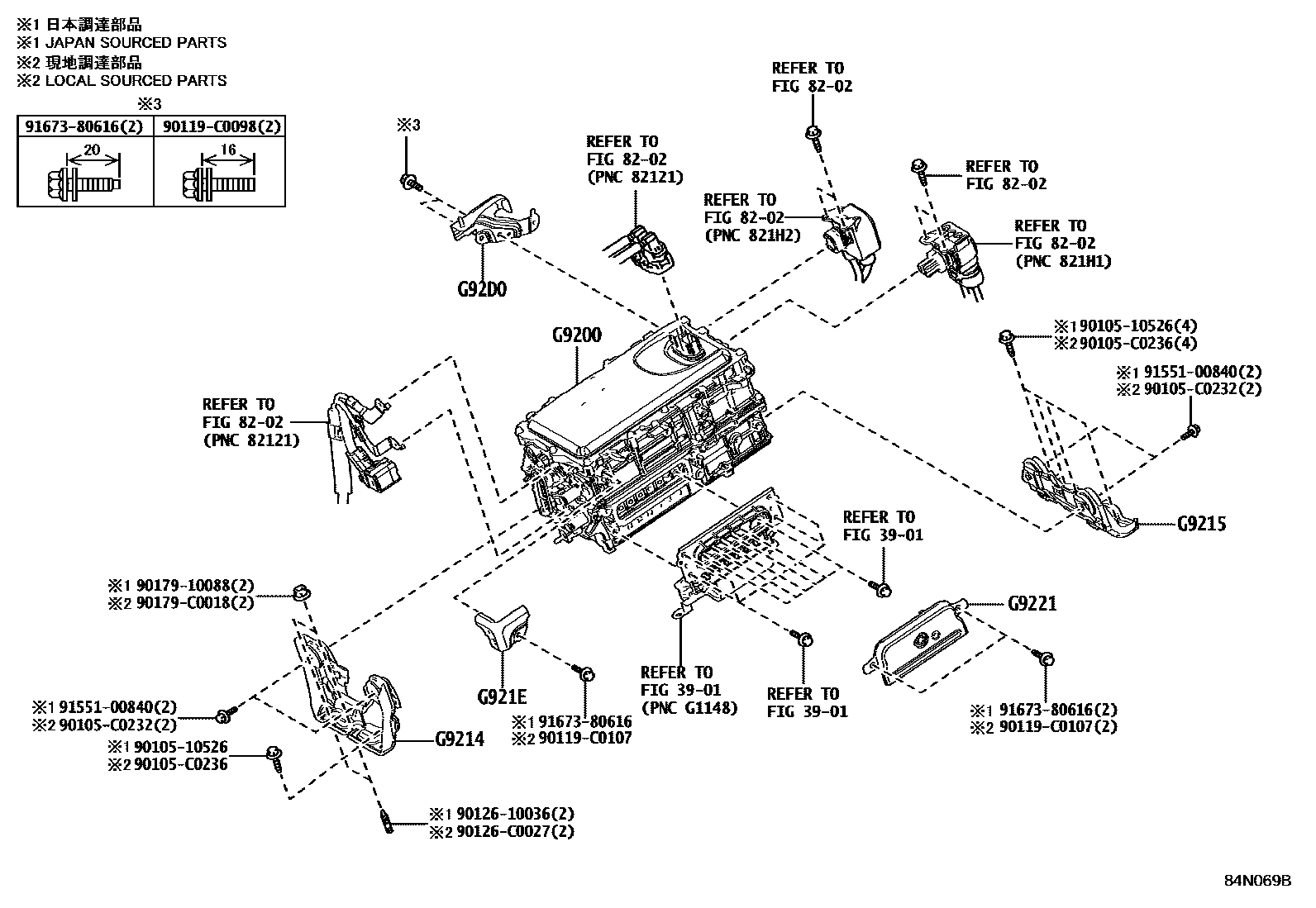

Parts diagram

G9200INVERTER ASSY, W/CONVERTER

mainG920079045i202105-202205

mainG920079046i202205

G9214BRACKET, INVERTER, NO.1

mainG921407010i202105

LOCAL SOURCED PARTS

mainG921433040i202105

JAPAN SOURCED PARTS

G9215BRACKET, INVERTER, NO.2

mainG921507010i202105

LOCAL SOURCED PARTS

mainG921533040i202105

JAPAN SOURCED PARTS

G921EPROTECTOR, INVERTER

mainG921E07010i202105

LOCAL SOURCED PARTS

mainG921E47010i202105

JAPAN SOURCED PARTS

G9221COVER, INVERTER

mainG902247050i202105

G92D0PROTECTOR ASSY, HYBRID INVERTER

mainG92D076010i202105

9010510526

main90105-10526

90105C0232

main90105-C0232

90105C0236

main90105-C0236

90119C0098

main90119-C0098

90119C0107

main90119-C0107

9012610036

main90126-10036

90126C0027

main90126-C0027

9017910088

main90179-10088

90179C0018

main90179-C0018

9155100840

main91551-00840

9167380616

main91673-80616

17 parts on this diagram · 1 diagram in section
