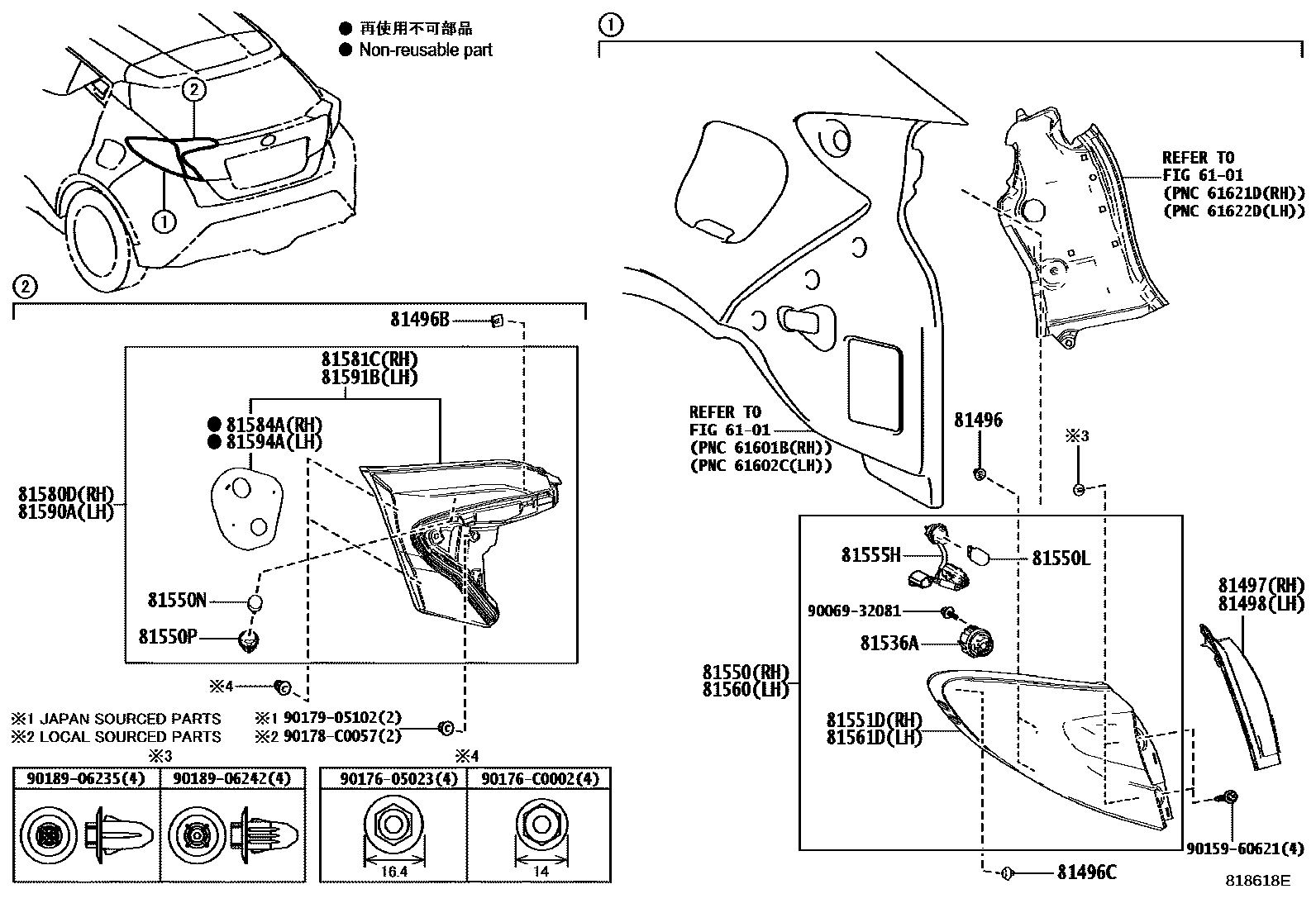

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-02020×4iMAXA10,MAXH10202105

(L)

main81496-52020×4iMAXA10201807-202105

(J)

81496BGUIDE, REAR LAMP

main76817-26040×2iMAXA10201807-202105

main90467-C0083×2iMAXA10,MAXH10202110

(L)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main90467-C0019×2iMAXA10,MAXH10202105

81497COVER, REAR COMBINATION LAMP, RH

main81497-F4030iMAXA10,MAXH10202105

81498COVER, REAR COMBINATION LAMP, LH

main81498-F4030iMAXA10201807-202105

81536ALED, REAR COMBINATION LAMP

main81536-15120×2iMAXA10,MAXH10..D,N202105

main81536-F4080×2iMAXA10..D,N201807-202105

81550LAMP ASSY, REAR COMBINATION, RH

main81550-F4080iMAXA10..D,N201807-201907

main81550-F4081iMAXA10..D,N201907-202105

main81550-F4090iMAXA10..E201807-202105

main81550-F4150iMAXA10,MAXH10..D,N202105

main81550-F4160iMAXA10,MAXH10..E,G202105

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15028×2iMAXA10,MAXH10..D,N202105

12V 21W,AMBER

main90981-15029×2iMAXA10..D,N201807-202105

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iMAXA10,MAXH10..D,N202105

12V 16W

81550PSOCKET, BACK UP LAMP

main90069-81119×2iMAXA10..D,N201807-202105

main90075-60001×2iMAXA10,MAXH10..D,N202105

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-F4080iMAXA10..D,N201807-202105

main81551-F4150iMAXA10,MAXH10..D,N202105

81555HSOCKET & WIRE, REAR COMBINATION LAMP

main81555-F4080×2iMAXA10..D,N201807-202105

main81555-F4150×2iMAXA10,MAXH10..D,N202105

81560LAMP ASSY, REAR COMBINATION, LH

main81560-F4080iMAXA10..D,N201807-201907

main81560-F4081iMAXA10..D,N201907-202105

main81560-F4090iMAXA10..E201807-202105

main81560-F4150iMAXA10,MAXH10..D,N202105

main81560-F4160iMAXA10,MAXH10..E,G202105

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-F4080iMAXA10..D,N201807-202105

main81561-F4150iMAXA10,MAXH10..D,N202105

81580DLAMP ASSY, REAR, RH

main81580-F4050iMAXA10..D,N201807-201907

main81580-F4051iMAXA10..D,N201907-202105

main81580-F4060iMAXA10..E201807-202105

main81580-F4150iMAXA10,MAXH10..D,N202105

main81580-F4160iMAXA10,MAXH10..E,G202105

81581CLENS AND BODY, REAR LAMP, RH

main81581-F4050iMAXA10..D,N201807-202105

main81581-F4150iMAXA10,MAXH10..D,N202105

81584AGASKET, REAR LAMP RH

main81584-F4050iMAXA10..D,N201807-202105

main81584-F4060iMAXA10..E201807-202105

main81584-F4150iMAXA10,MAXH10..D,N202105

main81584-F4160iMAXA10,MAXH10..E,G202105

81590ALAMP ASSY, REAR, LH

main81590-F4050iMAXA10..D,N201807-201907

main81590-F4051iMAXA10..D,N201907-202105

main81590-F4060iMAXA10..E201807-202105

main81590-F4150iMAXA10,MAXH10..D,N202105

main81590-F4160iMAXA10,MAXH10..E,G202105

81591BLENS AND BODY, REAR LAMP, LH

main81591-F4050iMAXA10..D,N201807-202105

main81591-F4150iMAXA10,MAXH10..D,N202105

81594AGASKET, REAR LAMP LH

main81584-F4150iMAXA10,MAXH10..D,N202105

main81594-F4050iMAXA10..D,N201807-202105

main81594-F4060iMAXA10..E201807-202105

main81594-F4160iMAXA10,MAXH10..E,G202105

9006932081

main90069-32081

9015960621

main90159-60621

9017605023

main90176-05023

90176C0002

main90176-C0002

90178C0057

main90178-C0057

9017905102

main90179-05102

9018906235

main90189-06235

9018906242

main90189-06242

29 parts on this diagram · 4 diagrams in section
