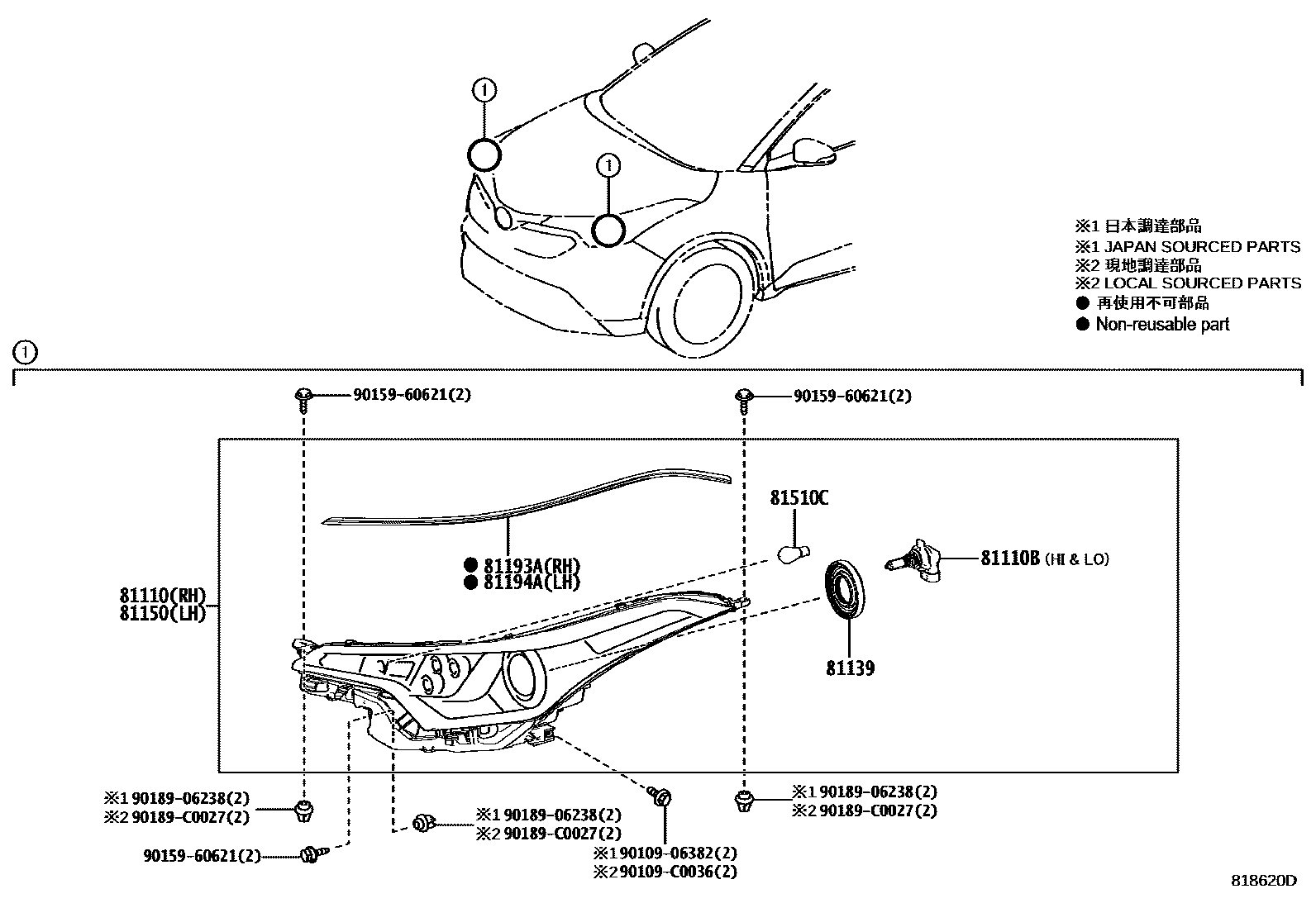

HEADLAMP

0001 1 0002 1 0003 1 0004 1

81110HEADLAMP ASSY, RH

main81110-F4110iMAXA10..D,N201807-201810

main81110-F4111iMAXA10..D,N201811-202105

main81110-F4120iMAXA10..E201807-201810

main81110-F4121iMAXA10..E201811-202105

main81110-F4350iMAXA10..D202105

main81110-F4360iMAXA10,MAXH10..N202105-202304

main81110-F4370iMAXA10,MAXH10..E,G202105

main81110-F4310iMAXA10..G202304

SPORT PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13089×2iMAXA10..D,N201807-202105

12V 55W,HALOGEN

81139COVER, HEADLAMP SOCKET

main90069-81120×2iMAXA10..D,N201807-202105

81150HEADLAMP ASSY, LH

main81150-F4110iMAXA10..D,N201807-201810

main81150-F4111iMAXA10..D,N201811-202105

main81150-F4120iMAXA10..E201807-201810

main81150-F4121iMAXA10..E201811-202105

main81150-F4350iMAXA10,MAXH10..N202304

main81150-F4360iMAXA10,MAXH10..N202105-202304

main81150-F4370iMAXA10,MAXH10..E,G202105

main81150-F4310iMAXA10..G202304

SPORT PACKAGE

81193APROTECTOR, HEADLAMP, RH

main81193-F4090iMAXA10201807-202105

main81193-F4160iMAXA10,MAXH10202105

81194APROTECTOR, HEADLAMP, LH

main81194-F4090iMAXA10201807-202105

main81194-F4160iMAXA10,MAXH10202105

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15020×2iMAXA10..D,N201910-202105

12V 21W,AMBER

main90981-15028×2iMAXA10,MAXH10..D,N202105

12V 21W,AMBER

main90981-WF005×2iMAXA10..D,N201807-201909

12V 21W

9010906382

main90109-06382

90109C0036

main90109-C0036

9015960621

main90159-60621

9018906238

main90189-06238

90189C0027

main90189-C0027

12 parts on this diagram · 4 diagrams in section
